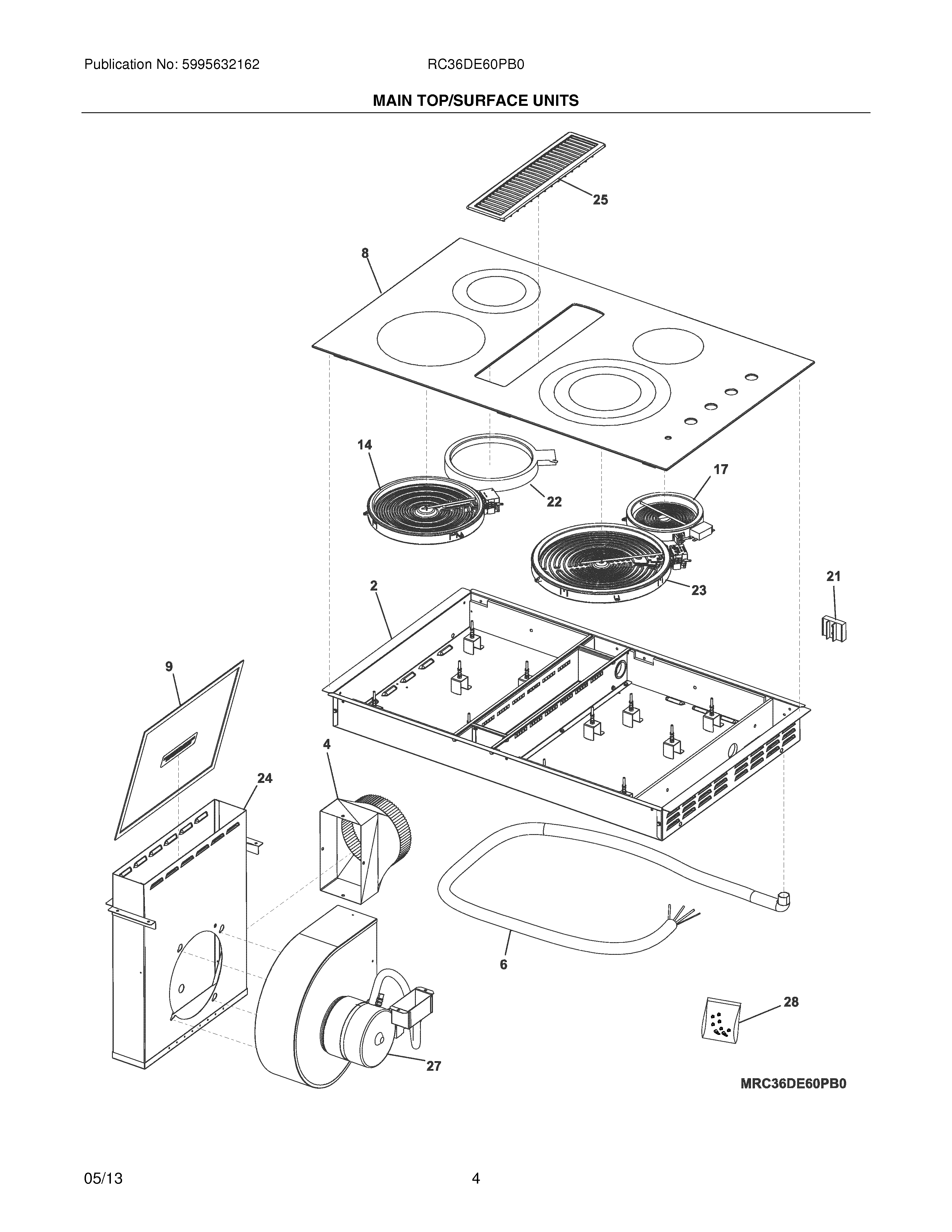

RC36DE60PB0 05 – MAIN TOP/SURFACE UNITSadmin2025-04-26T08:41:57+00:00RC36DE60PB0 05 – MAIN TOP/SURFACE UNITS
Products
| Position | Product |
|---|
| NI | WCI 5304485493 |
| 2 | BOX, BURNER, 36" |
| 4 | TRANSITION, EXHAUST |
| 6 | CONDUIT ASSEMBLY, POWER SUPPLY |
| 8 | WCI 5304491867 |
| 9 | FILTER, BLOWER AIR |
| 14 | 316530001 Frigidaire Oven Element |
| 17 | 318178110 Frigidaire Oven Range 6" Surface Element |
| 21 | BLOCK, TERMINAL |
| 22 | ELEMENT, DUAL, 1800/800 WATT, RADIANT |
| 24 | PLENUM ASSEMBLY, BLOWER |
| 25 | GRATE, VENT, W/PACKAGING |
| 27 | 5304485487 Frigidaire Blower Assembly |
| 28 | HARDWARE ASSEMBLY, COOKTOP MTG. |
