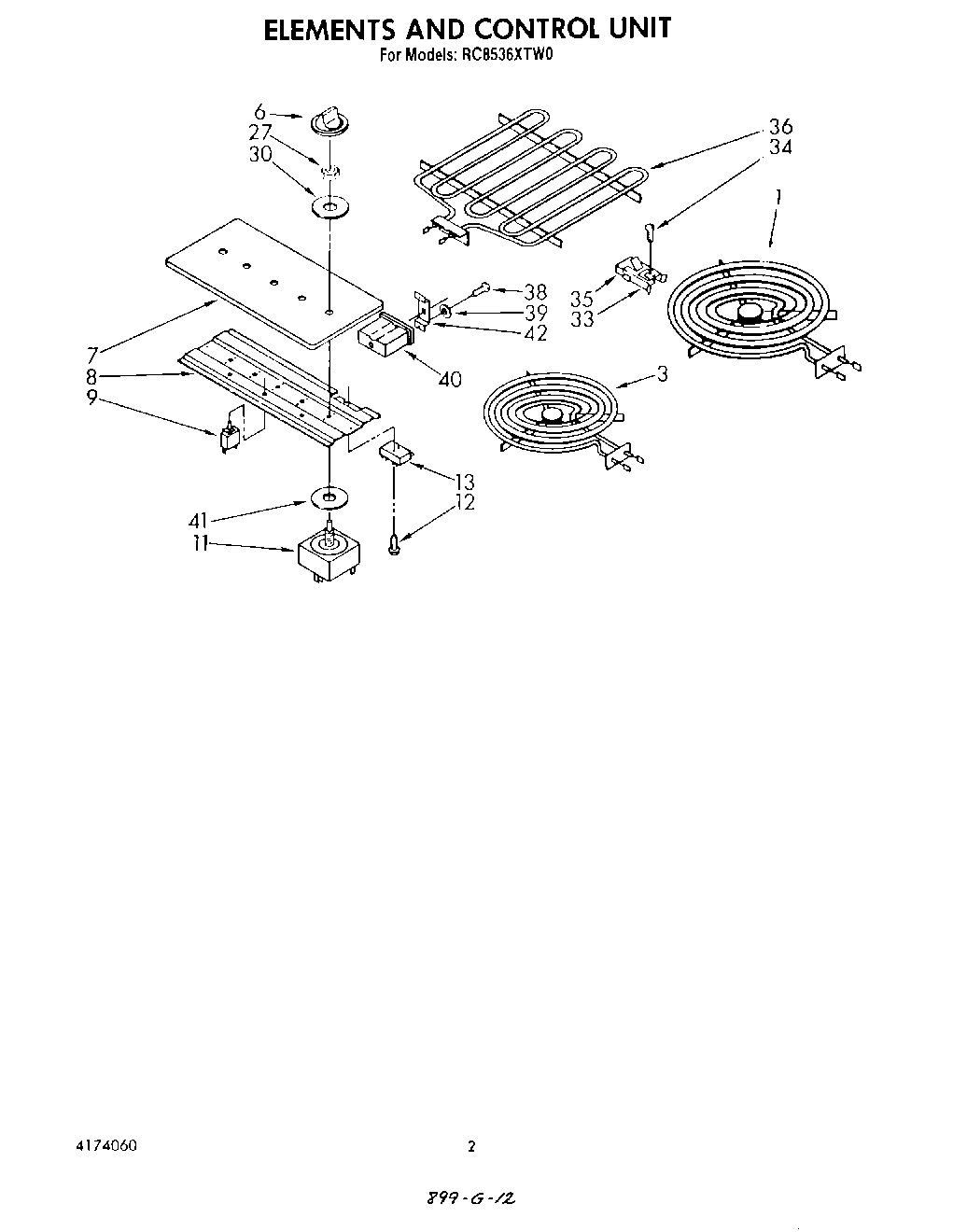

RC8536XTB0 02 – SECTION

Products

Position	Product
	Repair Parts List
	Installation Instructions
	Guide, Use & Care
	Mounting Hardware
1	WP660533 Whirlpool Oven 8" Surface Element
2	Element 8“ (2600W 240V)
2	(Alt.)
2	Element 8“ (2600 W 240 V)
3	WPY04100165 Whirlpool Surface Element
6	Knob, Control (5)
7	Plate, Control
8	Bracket, Switch Mounting
9	Indicator Light (3)
11	W10900107 Whirlpool Oven Surface Element Switch
12	Screw, (8 x 1/2)
13	Terminal Block
27	Nut, Hex Jam (4)
30	Washer (4)
33	Clip, Receptacle (4)
34	Screw
35	BURNER RECEPTACLE KIT
36	Element, Grill (1200 W 240 V.)
38	Screw, Self Tapping (8-18 X 3/8) Phil. Bind. Hd. Type AB
39	Lockwasher, 8 Int. Shake- proof
40	Receptacle, Grill Element
41	Washer
42	Clip, Mou
