| Guide, Use & Care |
| Installation Instructions |
| WPL LIT3149507 |

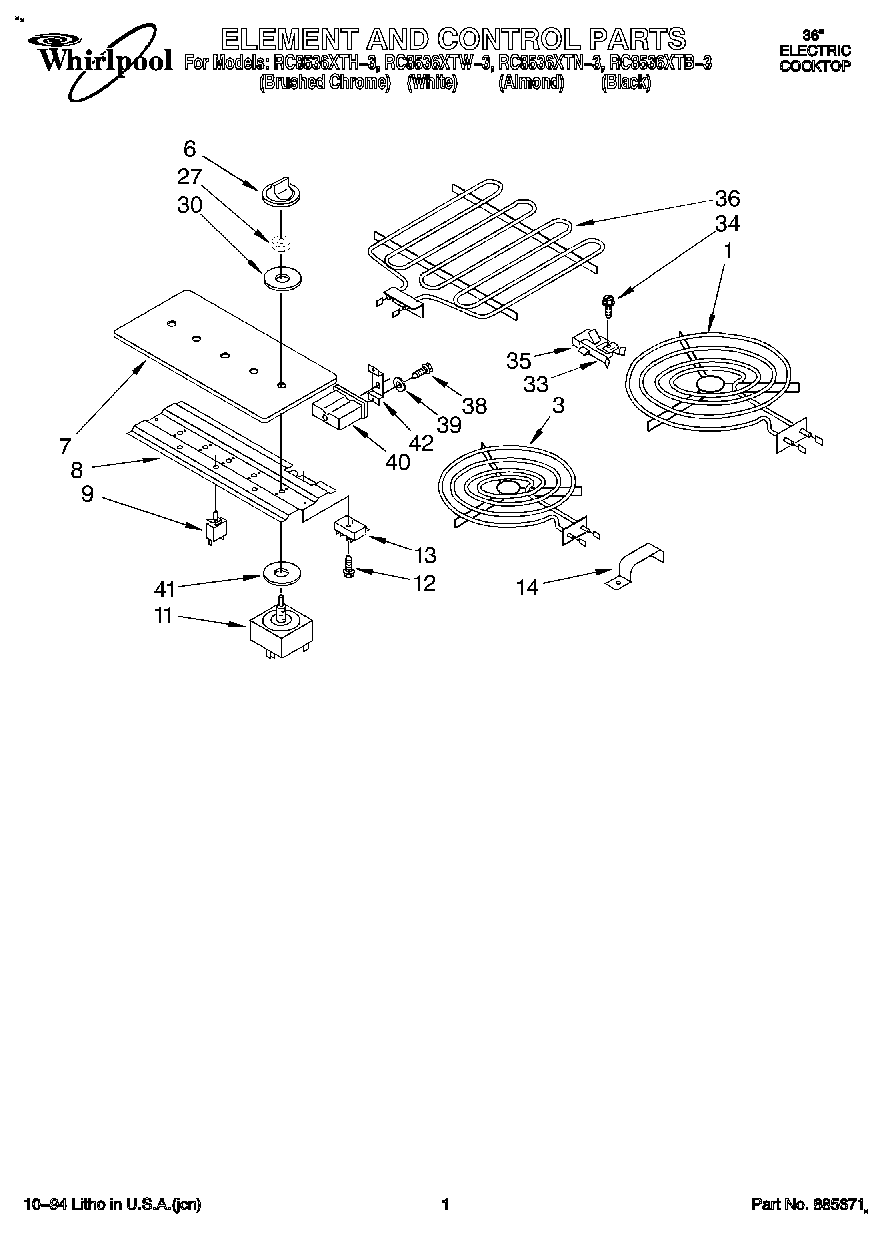

| Mounting Hardware |
| 1 | 326789 Whirlpool Surface Element 8 Inch |
| 1 | WP3177565 Whirlpool Surface Element |
| 3 | WP3191455 Whirlpool Surface Element |
| 6 | Knob, Control (5) |
| 7 | Plate, Control |
| 8 | Bracket, Switch Mounting |
| 9 | Indicator Light (3) |
| 11 | W10900107 Whirlpool Oven Surface Element Switch |
| 12 | Screw, (8 x 1/2) |
| 13 | Terminal Block |
| 14 | 7111P002-60 Whirlpool Clamp |
| 27 | Nut, Hex Jam (4) |
| 30 | Washer (4) |
| 33 | Clip, Receptacle (4) |
| 34 | Screw |
| 35 | BURNER RECEPTACLE KIT |
| 36 | Element, Grill (1200 W 240 V.) |
| 38 | Screw, Self Tapping (8-18 X 3/8) Phil. Bind. Hd. Type AB |
| 39 | Lockwasher, 8 Int. Shake- proof |
| 40 | Receptacle, Grill Element |
| 41 | Washer |
| 42 | Clip, Mou |
