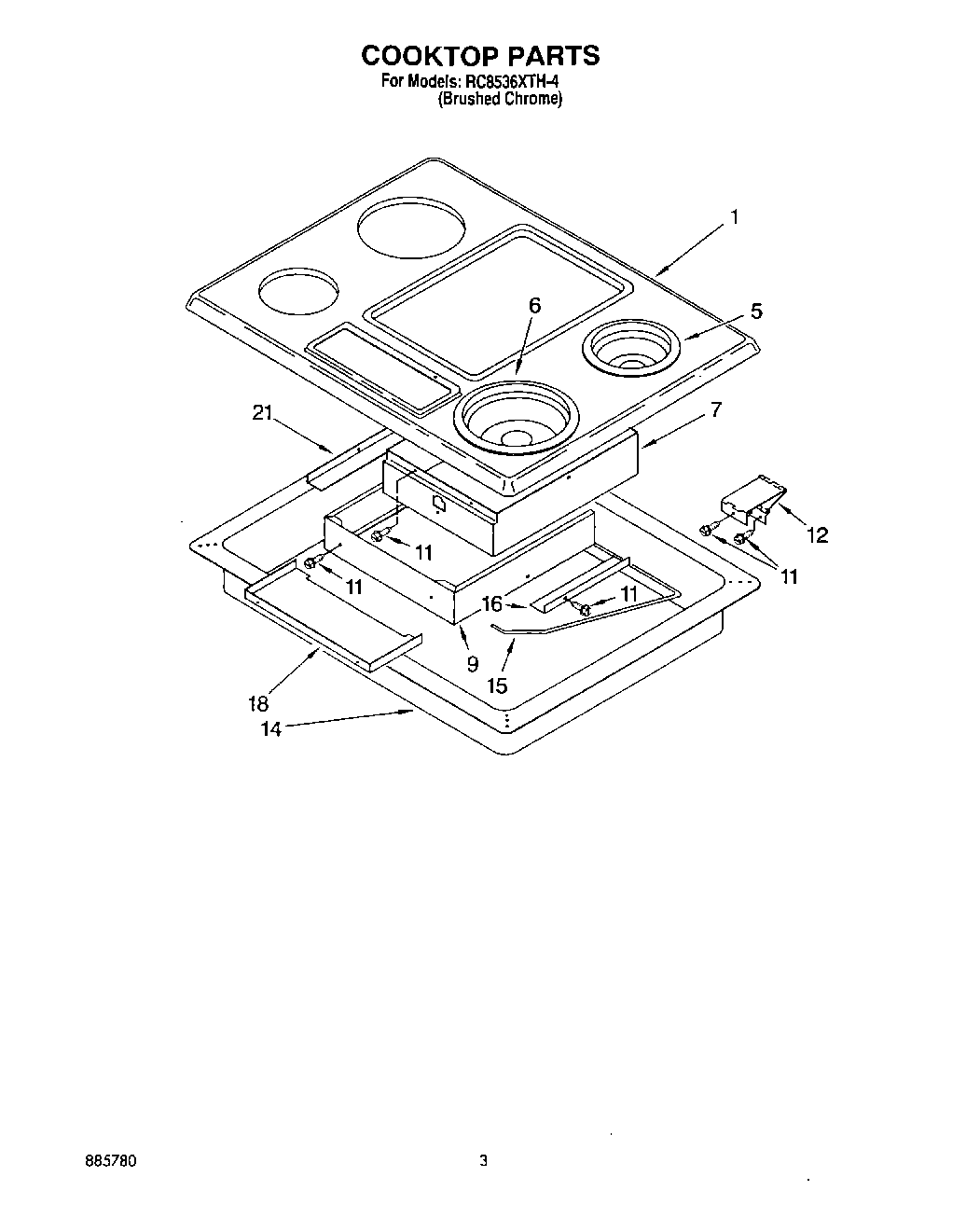

RC8536XTH4 03 – SECTION

Products

Position	Product
1	Cooktop (Brushed Chrome)
1	WPW10068250 Whirlpool Dishwasher Screw
5	WPW10196406 Whirlpool 6" Chrome Drip Bowl
6	DRIP BOWL 8" W/HOLE CHROME
7	Pan, Heat Shield
9	Screw, Self Tapping (8-18 X 3/8) Phil. Bind. Hd. Type AB
9	Frame, Outer Substructure
12	Hinge (2)
14	Box, Burner
15	Rod, Top Support
16	Cover, Control (Right)
18	Cover, Control (Front)
21	Screw, (2)
21	Cover, Control (Left)
