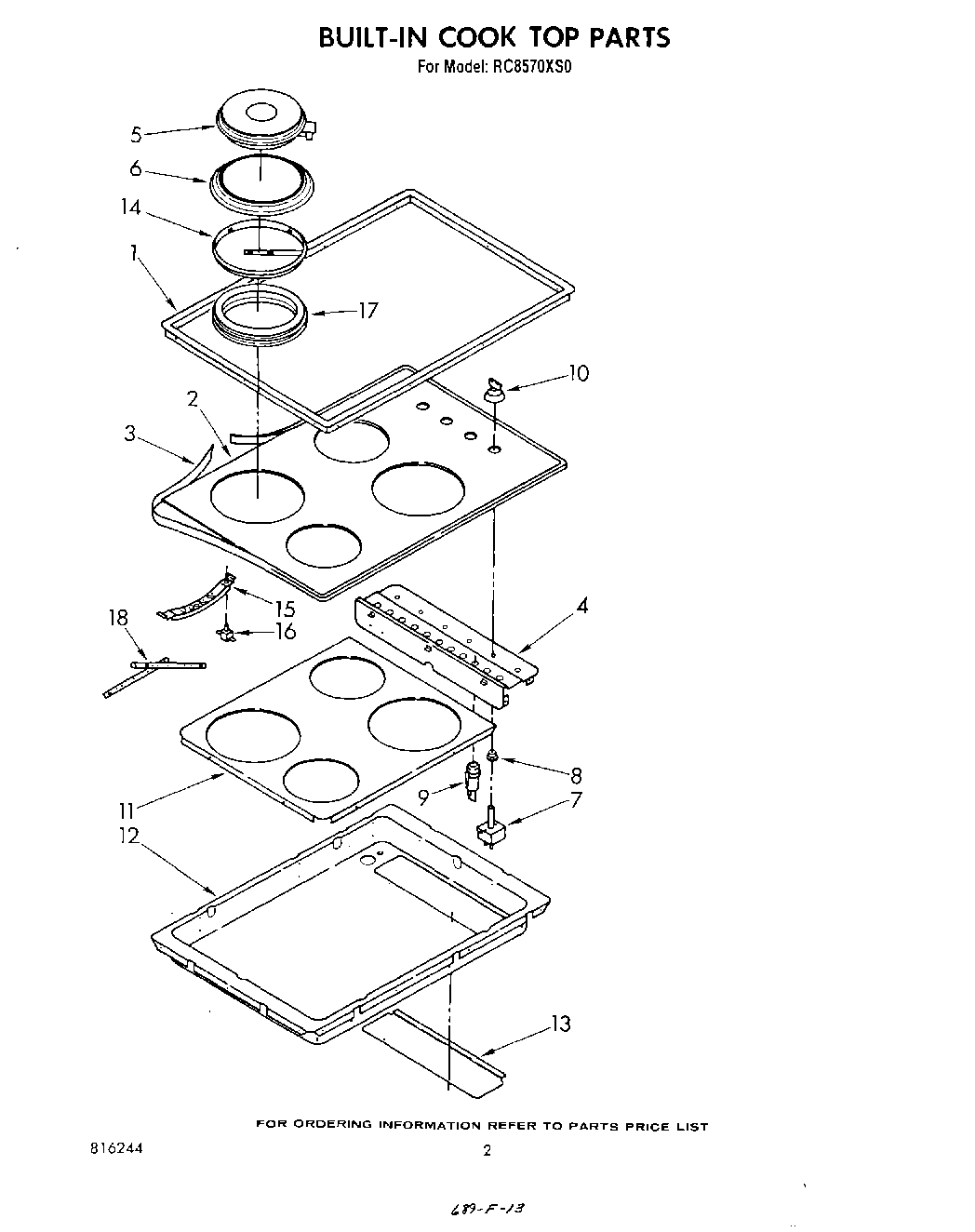

RC8570XS0 02 – SECTION

Products

Position	Product
1	W11693756 Whirlpool Screw Assembly
1	Frame, Cooktop
2	Cooktop, Glass
3	WPL 866454
4	Bracket, Control
5	WP3147131 Whirlpool Surface Element
5	WP3147132 Whirlpool Surface Element
6	Ring, Intermediate (Medium (2))
6	Ring, Intermediate (Small (2))
7	W10900107 Whirlpool Oven Surface Element Switch
7	WP486579 Whirlpool Air Conditioner Screw
8	Bushing, Switch (4)
9	WPL 868172
10	Knob, Control (4)
11	Support, Cooktop
12	Burner Box
13	Cover, Access
13	WPL 877903
14	Ring, Retainer (Medium (2))
14	Ring, Retainer (Small (2))
15	Bracket, Mounting (Medium (2))
15	Bracket, Mounting (Small (2))
16	Protector, Thermal Switch (4)
17	Seal, Element (Small (2))
17	Seal, Element (Medium (2))
18	242831 Whirlpool Oven Wire
18	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
18	Wire, 25` Roll (Red 14 Ga.)
18	Wire, 25` Roll (Black 14 Ga.)
18	Wire, 25“ Roll (White 14 GA.)
18	WPL 816245
18	WPL 816129
18	WPL 816131
18	WPL 816243
18	Wire (14 Ga. 150 c Blue)
18	Wire (14 Ga. 150 c Brown)
18	WPL 261961
18	1
18	Wire (14 Ga. 200 c Brown)
18	WPL 877952
18	18 Ga. 80~c Rating (Red)
18	Wire (12 Ga. 150 c Black)
18	Wire (14 Ga. 150 c Yellow)
18	Wire (14 Ga. 150 c Orange)
18	Wire (14 Ga. 150 c Green)
18	WPL 816244
