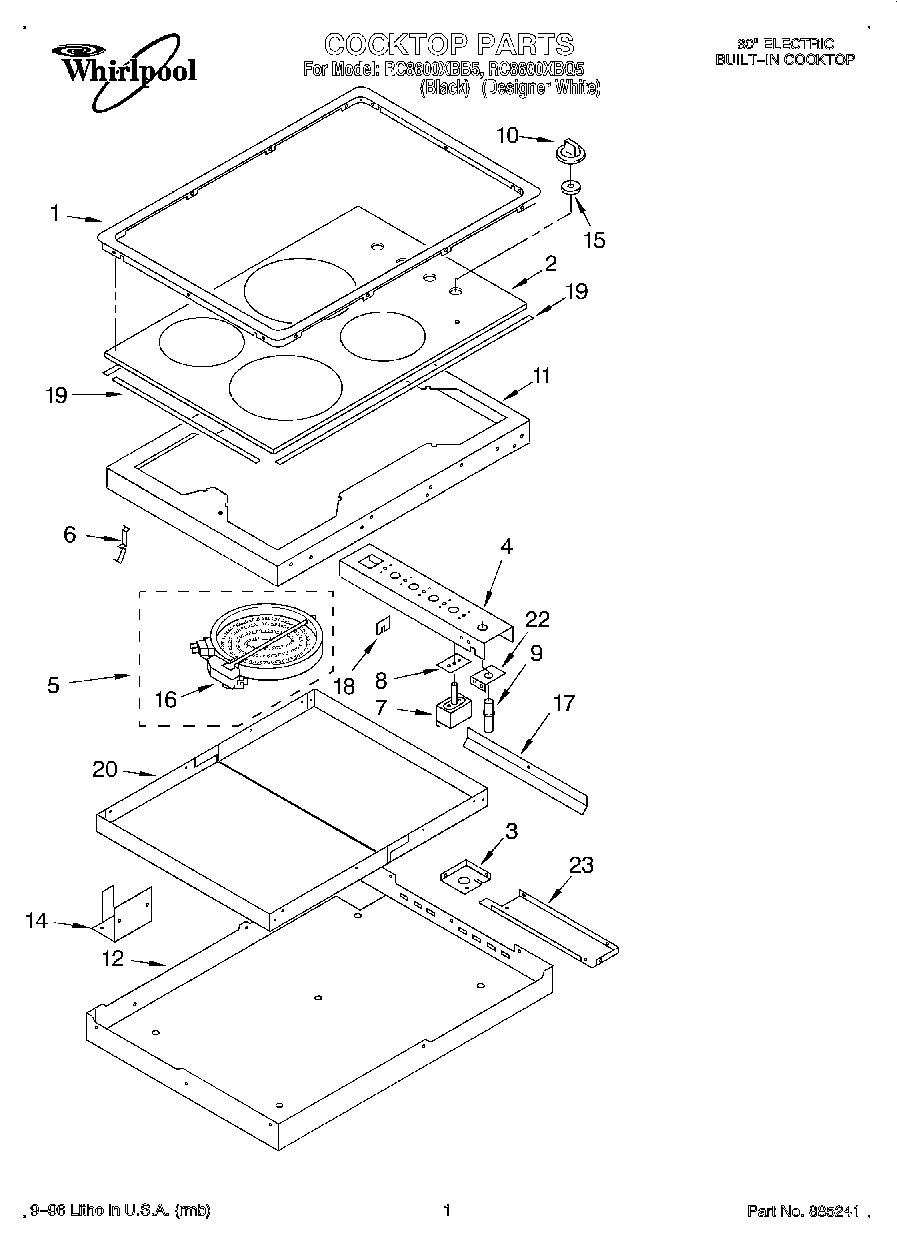

RC8600XBB5 01 – SECTION
Written by
in
RC8600XBB5 01 – SECTION
Products
Position
Product
WA906B Whirlpool Cooktop Glass Scraper
1
Wire (14 Ga. 200 c Brown)
18 Ga. 80~c Rating (Red)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
242831 Whirlpool Oven Wire
WPL LIT3189548
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
Hardware Asm.
Wiring Diagram
Wire, 25“ Roll (White 14 GA.)
Wire, 25` Roll (Red 14 Ga.)
Wire, 25` Roll (Black 14 Ga.)
WPL LIT3190333
WPL 3179589
1
Trim Ring, Cooktop (Black)
1
Trim Ring, Cooktop (Designer White)
2
Cooktop, Glass (Black)
2
Cooktop, Glass (Designer White)
3
Shield, Heat (Exterior)
4
Bracket, Switch Mounting
5
Element, Surface (2100W Right Rear)
5
Element, Surface (1700W Right Front)
5
Element, Surface (1400W Left Rear)
5
WP8185663 Whirlpool Surface Element
6
Spring, Locator (8)
6
WP486754 Whirlpool Compactor Screw
7
Switch, Infinite (Use W/1400W Left Rear Burner)
7
Switch, Infinite (Use W/1700W Right Front & 2100W Right Rear Burner)
7
Switch, Infinite (Use W/2400W Left Front Burner)
7
WP486579 Whirlpool Air Conditioner Screw
8
3183956 Whirlpool Oven Seal Switch
9
Light, Indicator
10
Knob, Control
10
Knob, Control (4)
11
Backer, Plate
12
Cover, Bottom
14
Bracket, Wiring
15
Seal, Inifinite Switch
16
Switch, Limiter (Use W/4454439 Element)
16
Switch, Limit (Use W/3184954 Element)
16
Switch, Limiter (Use W/4454440 Element)
16
Switch, Limiter (Use W/4454441 Element)
17
Plate, Louver
17
Screw,
18
Grommet
19
Seal, Silicone (Front & Back (2))
19
Seal, Silicone (Sides (2))
20
Shield, Heat (2)
22
Bracket, Ind. Lite
23
Bottom, Switch
23
Screw (6)
23
Vent, Lower Trim (Screw (2))
←
