RC8600XDZ2 01 – SECTION
Written by
in

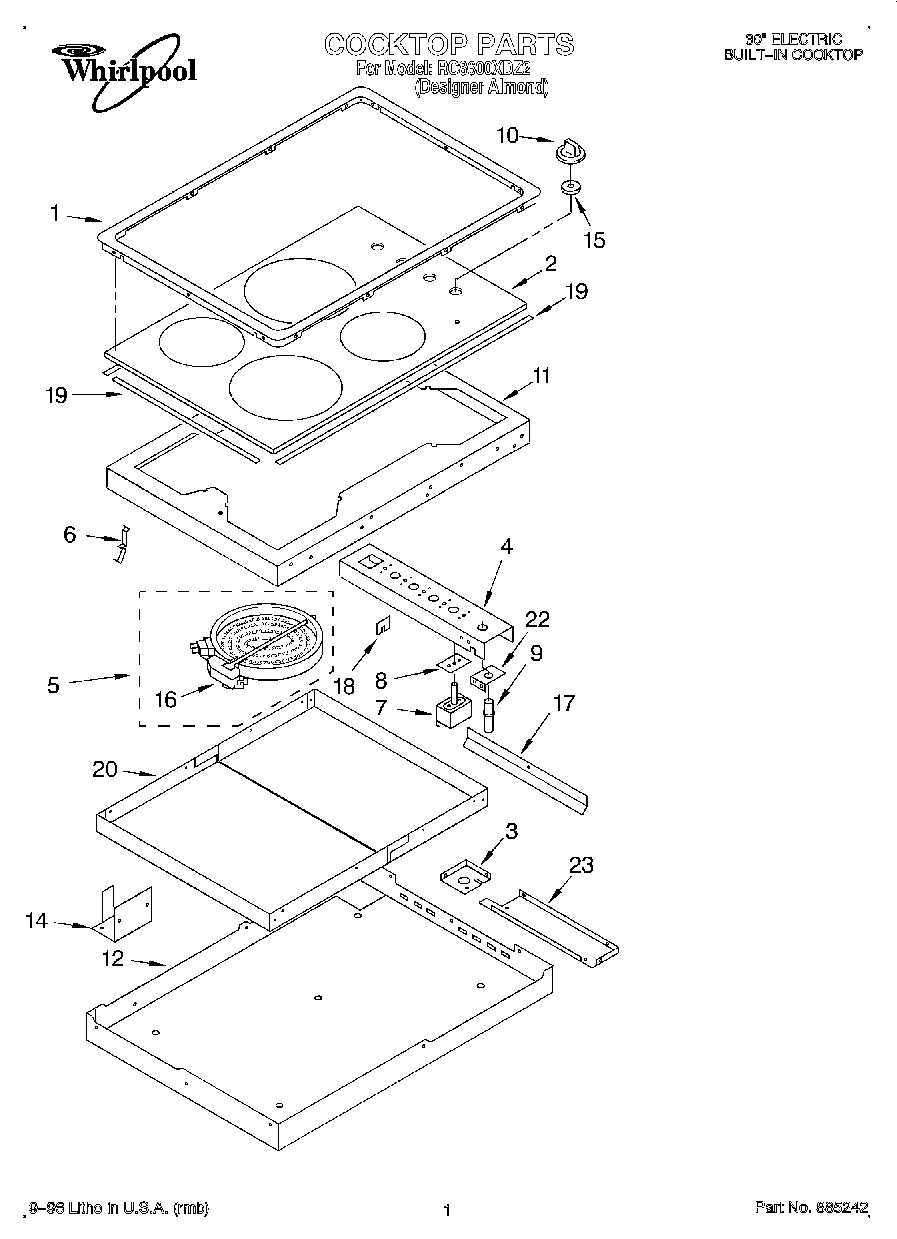

RC8600XDZ2 01 – SECTION
Products
Position
Product
WA906B Whirlpool Cooktop Glass Scraper
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Yellow)
Wire (12 Ga. 150 c Black)
18 Ga. 80~c Rating (Red)
Wire (14 Ga. 200 c Brown)
1
WPL LIT3190333
WPL 3179589
Wire (14 Ga. 150 c Brown)
242831 Whirlpool Oven Wire
Wire, 25` Roll (Black 14 Ga.)
Hardware Asm.
Wire, 25` Roll (Red 14 Ga.)
Wire, 25“ Roll (White 14 GA.)
WPL 3189792
Wire (14 Ga. 150 c Orange)
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
WPL LIT3189548
1
Trim Ring, Cooktop (Designer Almond)
2
Cooktop, Glass
3
Shield, Heat (Exterior)
4
Bracket, Switch Mounting
5
Element, Surface (8“ R.R. 2100W)
5
Element, Surface (7“ R.F. 1700W)
5
Element, Surface (6“ L.R. 1400W)
5
Element, Surface (9“ L.F. 2400W)
6
WP486754 Whirlpool Compactor Screw
6
Spring, Locator (8)
7
Switch, Infinite (Use W/1400W Left Rear Burner)
7
Switch, Infinite (Use W/2400W Left Front Burner)
7
WP486579 Whirlpool Air Conditioner Screw
7
Switch, Infinite (Use W/1700W Right Front & 2100W Right Rear Burner)
8
3183956 Whirlpool Oven Seal Switch
9
Light, Indicator
10
Knob, Control (4) (Designer Almond)
11
Backer, Plate
12
Cover, Bottom
14
Bracket, Wiring
15
Seal, Inifinite Switch
16
Limiter, Temp. (1400 W – LR)
16
Limiter, Temp (2100W – RR)
16
Limiter, Temp (1700W – RF)
16
Limiter, Temp. (2400 W – LF)
17
Plate, Louver
17
Screw,
18
Grommet
19
Seal, Silicone (Sides (2))
19
Seal, Silicone (Front & Back (2))
20
Shield, Heat (2)
22
Bracket, Ind. Lite
23
Vent, Lower Trim (Screw (2))
23
Screw (6)
23
Bottom, Switch
←
