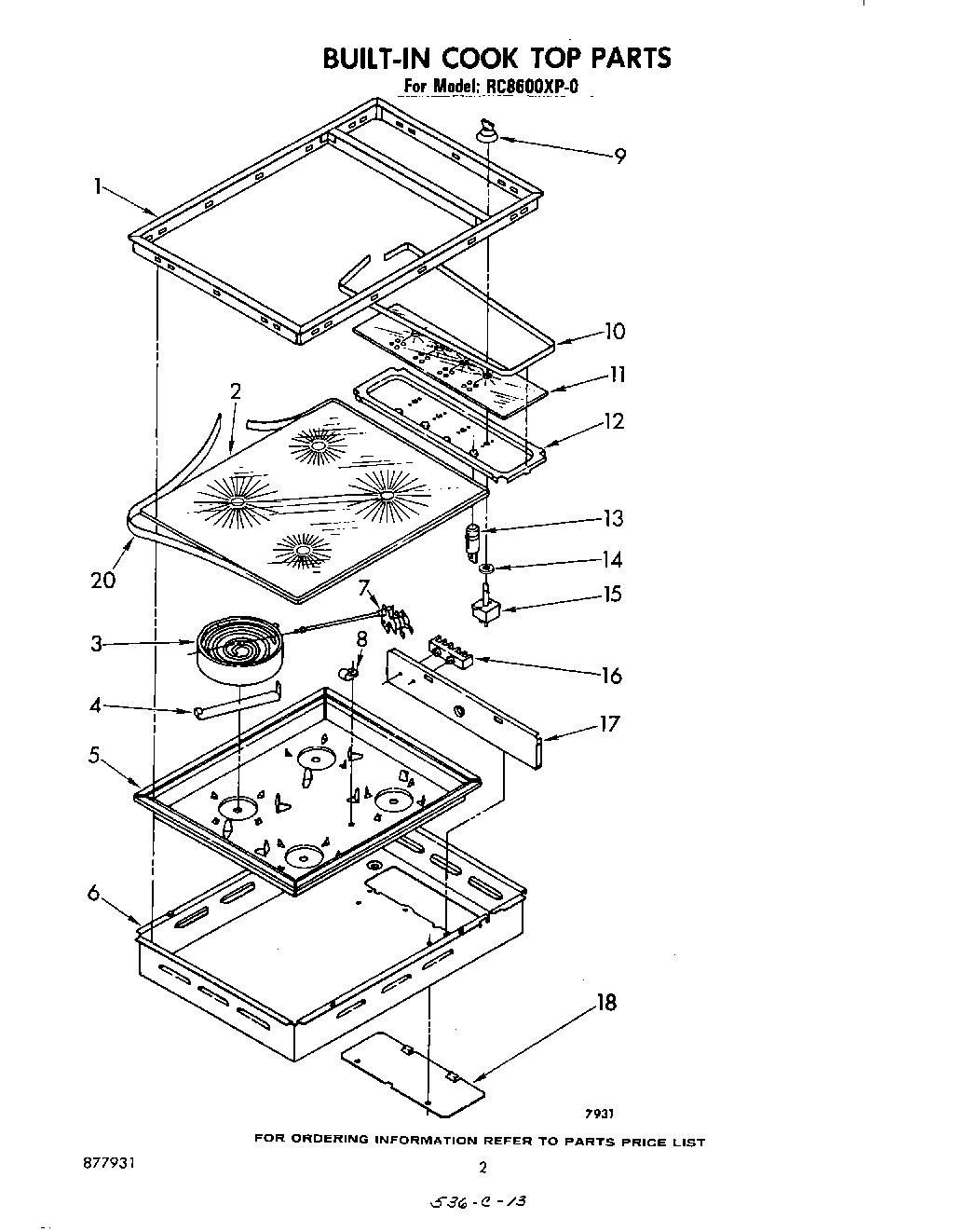

RC8600XP0 02 – SECTION

Products

Position	Product
1	Clip, Frame (4)
1	Screw, 10-24 x 1 (4)
1	Frame, Cooktop
2	Cooktop
3	Unit, Surface (6“ (2))
3	Unit, Surface (8“ (2))
4	Bracket, Element (4)
5	Box, Elements
6	Burner Box
7	WP486754 Whirlpool Compactor Screw
7	Limit, Control (6“ (2))
7	Limit, Control (8“ (2))
8	WPL 865797
9	Control Knob (4) (Surface Unit)
11	Panel, Control
12	Bracket, Control
13	WPL 868433
14	Bushing, Switch (4)
15	W10900107 Whirlpool Oven Surface Element Switch
15	Switch Infinite (Use W/8“ Surface Unit (2))
15	WP486579 Whirlpool Air Conditioner Screw
16	WPL 834649
16	Hex Nut, 10-32 (6)
16	WP8203546 Whirlpool Terminal Block
17	Shield, Switch
18	Screw, 10-24 x 1/2 (3)
18	Cover, Access
20	Wire (14 Ga. 200 c Brown)
20	1
20	Wire, 25` Roll (Black 14 Ga.)
20	Wire, 25` Roll (Red 14 Ga.)
20	Wire, 25“ Roll (White 14 GA.)
20	WPL 866454
20	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
20	242831 Whirlpool Oven Wire
20	Wire (14 Ga. 150 c Blue)
20	Wire (14 Ga. 150 c Brown)
20	Wire (14 Ga. 150 c Green)
20	Wire (14 Ga. 150 c Orange)
20	WPL 877952
20	Wire (14 Ga. 150 c Yellow)
20	WPL 877945
20	Wire (12 Ga. 150 c Black)
20	18 Ga. 80~c Rating (Red)
20	WPL 261961
20	WPL 877946
