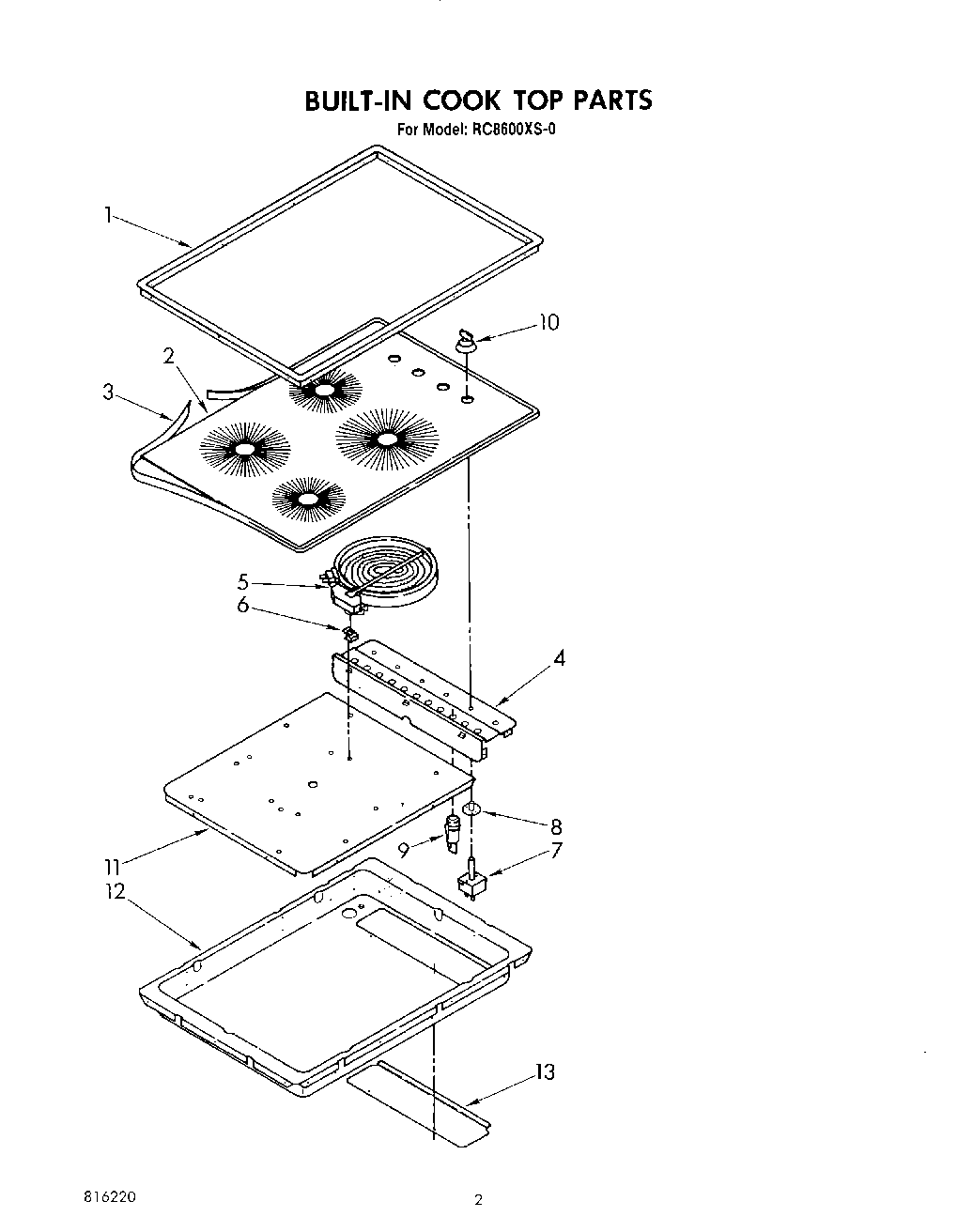

RC8600XS0 02 – SECTION

Products

Position	Product
1	W11693756 Whirlpool Screw Assembly
1	Frame, Cooktop
2	Cooktop, Glass
3	WPL 866454
4	Bracket, Control
5	Unit, Surface (9“ 2100W)
5	Unit, Surface (8“ 1700W)
5	Unit, Surface (6“ 1200W (2))
6	WPL 877978
6	Clip (12)
7	W10900107 Whirlpool Oven Surface Element Switch
7	Switch Infinite (Use W/8“ Surface Unit (2))
7	WP486579 Whirlpool Air Conditioner Screw
8	Seal, Switch
9	Light, Indicator (4)
10	Control Knob (4) (Surface Unit)
11	Support, Cooktop
12	Burner Box
13	Cover, Access
13	List, Repair Parts
13	242831 Whirlpool Oven Wire
13	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
13	Wire, 25“ Roll (White 14 GA.)
13	Wire, 25` Roll (Red 14 Ga.)
13	Wire, 25` Roll (Black 14 Ga.)
13	WPL 877946
13	WPL 877945
13	Wire (12 Ga. 150 c Black)
13	18 Ga. 80~c Rating (Red)
13	Wire (14 Ga. 200 c Brown)
13	1
13	WPL 261961
13	Wire (14 Ga. 150 c Orange)
13	Wire (14 Ga. 150 c Green)
13	WPL 877903
13	WPL 877952
13	Wire (14 Ga. 150 c Brown)
13	Wire (14 Ga. 150 c Blue)
13	Wire (14 Ga. 150 c Yellow)
