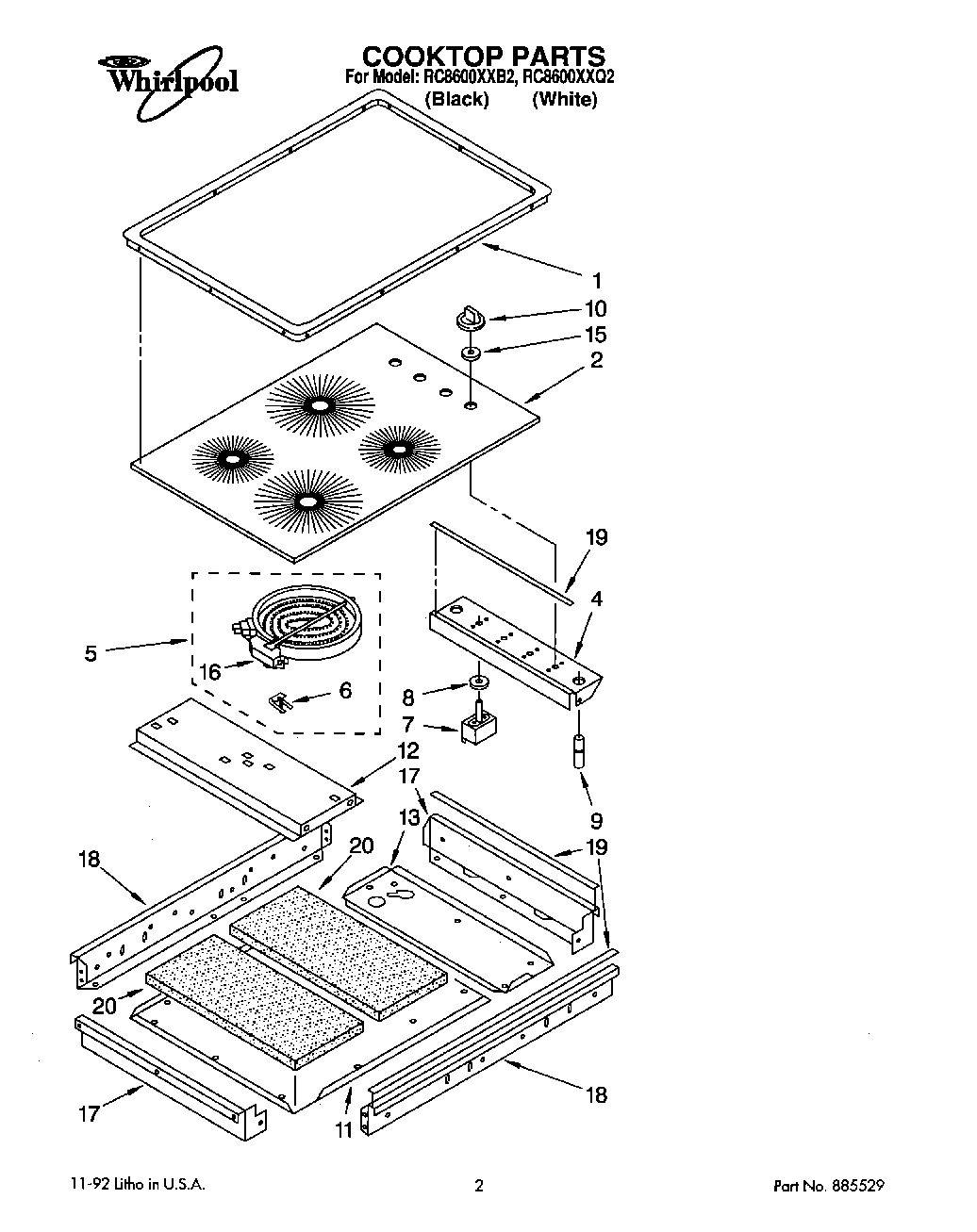

RC8600XXB2 01 – SECTION

Products

Position	Product
1	Trim Ring, Cooktop (White)
1	Trim Ring, Cooktop (Black)
1	Vent, Lower Trim (Screw (2))
2	Cooktop, Glass (Designer White)
2	Cooktop, Glass (Black)
4	Bracket, Switch Mounting
5	WP8185663 Whirlpool Surface Element
5	Element, Surface (1400W Left Rear)
5	Element, Surface (1700W Right Front)
5	Element, Surface (2100W Right Rear)
6	Spring, Locator
6	WP486754 Whirlpool Compactor Screw
7	Switch, Infinite (Use W/2400W Left Front Burner)
7	Switch, Inifinite (Front Burner (Green Shaft))
7	Switch, Infinite (Use W/1400W Left Rear Burner)
7	WP486579 Whirlpool Air Conditioner Screw
8	Seal, Switch Shaft (2)
9	Light, Indicator
10	Knob, Control
10	Knob, Control (4)
11	Cover, Bottom
12	Support, Element
13	WP488729 Whirlpool Refrigerator Door Screw
13	WPL 312318
13	Cover, Service
15	Seal, Inifinite Switch
16	Limiter Temp. (7“ – RF)
16	Limiter, Temperature (Use W/3183649 Element)
16	Limiter, Temperature (Use W/3183648 Element)
16	Limiter, Temp. (6“ L.R.)
17	Rail, Side (Right Hand)
17	Rail, Side (Left Hand)
18	WPL 3183380
19	Seal, Silicone (Sides (2))
19	Seal, Silicone (Front & Back (2))
20	Insulation, Ceramic
