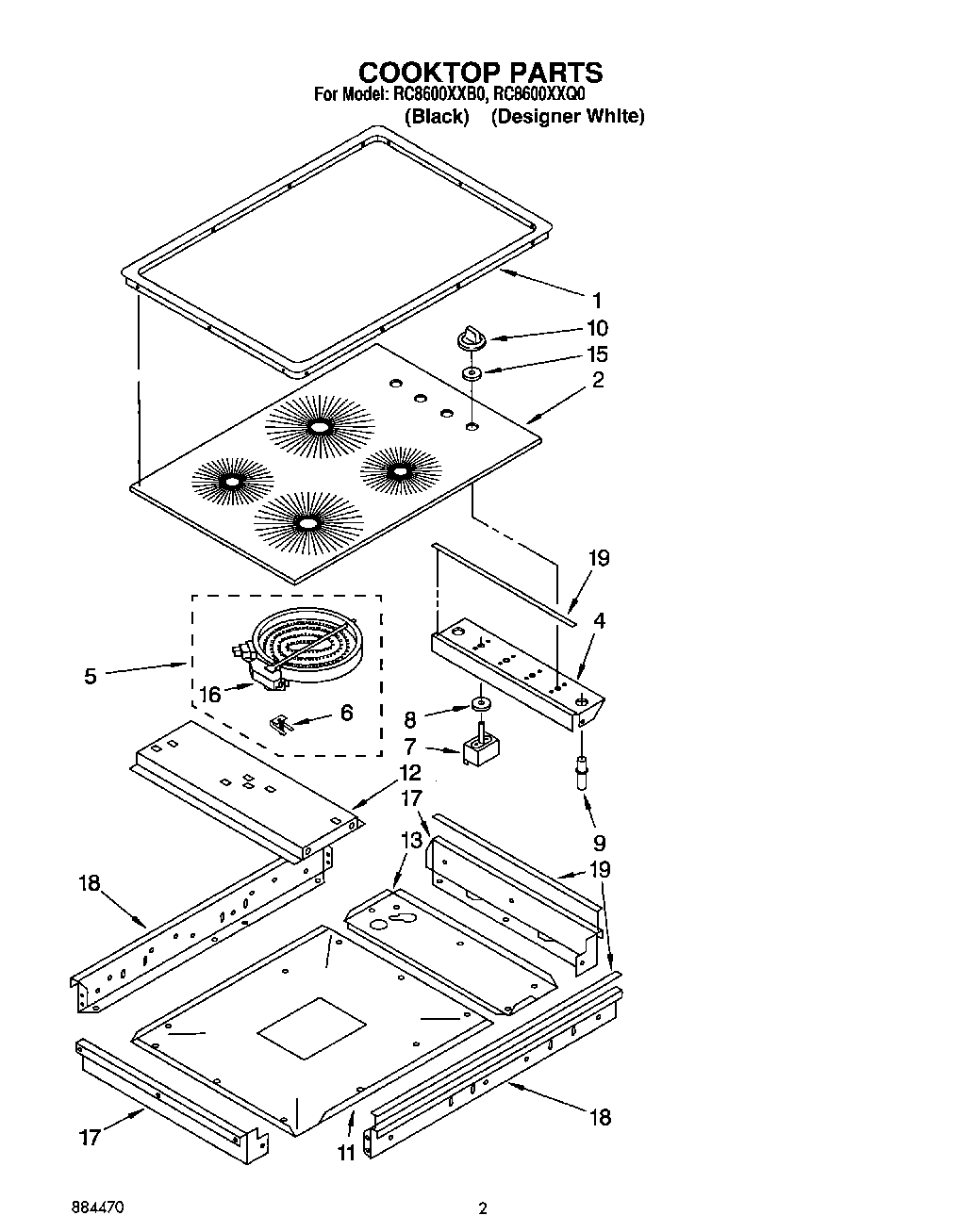

RC8600XXQ0 02 – SECTION

Products

Position	Product
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Yellow)
	Wire (12 Ga. 150 c Black)
	18 Ga. 80~c Rating (Red)
	Wire (14 Ga. 200 c Brown)
	1
	WPL LIT313358
	WPL LIT3147386
	Mounting Screws (10A X 2 (2))
	Clamp (2)
	WPL LIT3149929
	Wire (14 Ga. 150 c Brown)
	WA906B Whirlpool Cooktop Glass Scraper
	Wire, 25` Roll (Black 14 Ga.)
	Wire, 25` Roll (Red 14 Ga.)
	Wire, 25“ Roll (White 14 GA.)
	242831 Whirlpool Oven Wire
	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
	WPL LIT884470
1	Trim Ring, Cooktop (White)
1	Vent, Lower Trim (Screw (2))
1	Trim Ring, Cooktop (Black)
2	Cooktop, Glass (White)
2	Cooktop, Glass (Black)
4	Bracket, Switch Mounting
5	Element, Surface (Includes No. 1, No. 3) (230 MM – RR)
5	Element, Surface (Includes No. 1, No. 3) (200 MM – RF)
5	WP8185663 Whirlpool Surface Element
5	Element, Surface (Includes No. 1, No. 3) (180 MM – LR)
6	Spring, Locator
6	WP486754 Whirlpool Compactor Screw
7	Switch, Infinite (Use W/2400W Left Front Burner)
7	Switch, Inifinite (Front Burner (Green Shaft))
7	WP486579 Whirlpool Air Conditioner Screw
7	Switch, Infinite (Use W/1400W Left Rear Burner)
8	Seal, Switch Shaft (2)
9	Light, Indicator
10	Knob, Control
10	Knob, Control (4)
11	Cover, Bottom
12	Support, Element
13	Cover, Service
13	WP488729 Whirlpool Refrigerator Door Screw
15	Seal, Inifinite Switch
16	Limiter Temp. (8“ – RR)
16	Limiter, Temp. (200 MM – RF)
16	Limiter, Temp. (180 MM – LR)
16	Limiter, Temp. (250 mm (LF))
17	Rail, Side (Left Hand)
17	Rail, Side (Right Hand)
18	WPL 3183380
19	WPL 3181645
19	Seal, Sili
