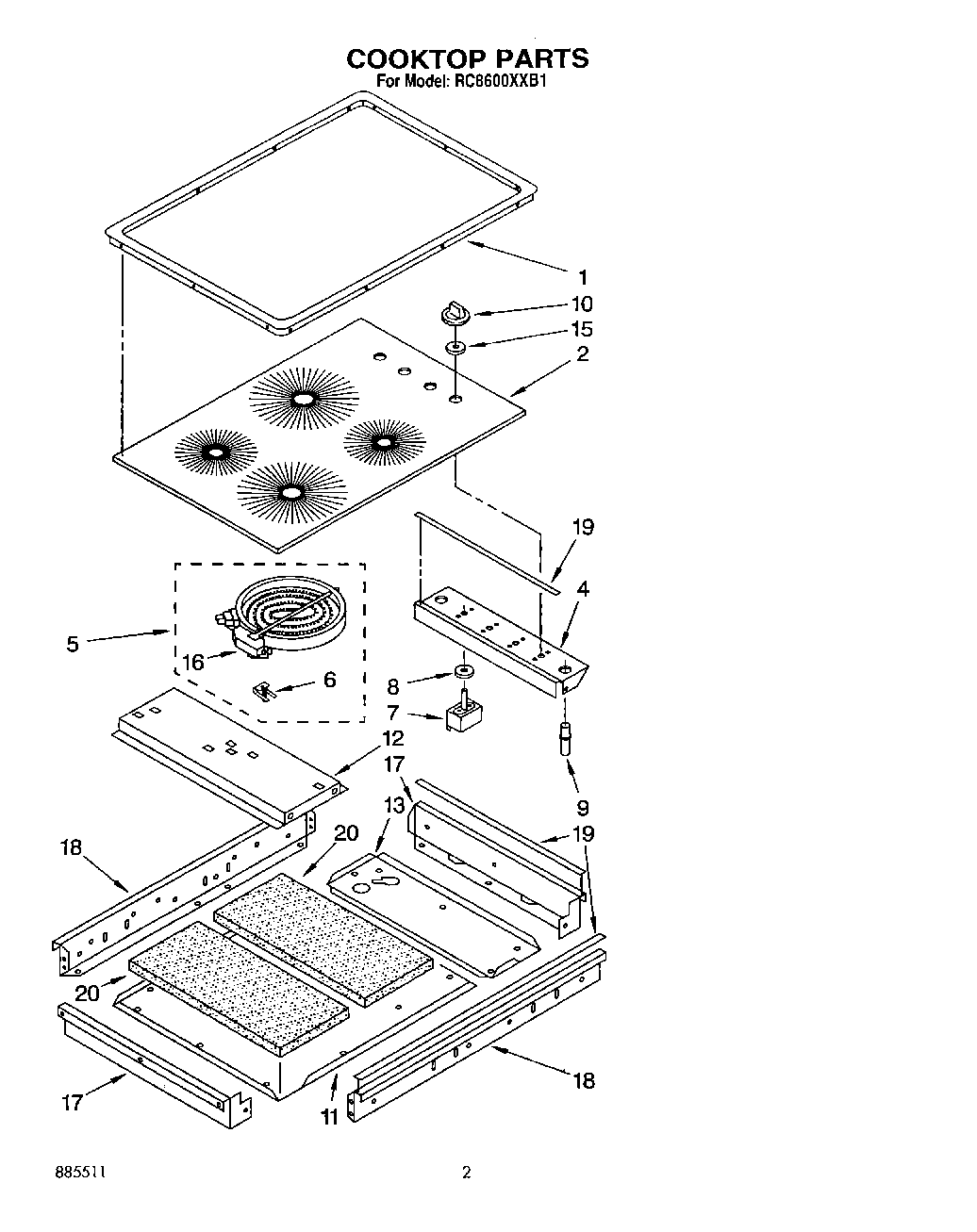

RC8600XXQ1 02 – SECTION

Products

Position	Product
1	Trim Ring, Cooktop (Black)
1	Trim Ring, Cooktop (White)
1	Vent, Lower Trim (Screw (2))
2	Cooktop, Glass (White)
2	Cooktop, Glass (Black)
4	Bracket, Switch Mounting
5	WP8185663 Whirlpool Surface Element
5	Element, Surface (1400W Left Rear)
5	Element, Surface (2100W Right Rear)
5	Element, Surface (1700W Right Front)
6	Spring, Locator
6	WP486754 Whirlpool Compactor Screw
7	Switch, Infinite (Use W/1400W Left Rear Burner)
7	Switch, Infinite (Use W/2400W Left Front Burner)
7	WP486579 Whirlpool Air Conditioner Screw
7	Switch, Inifinite (Front Burner (Green Shaft))
8	Seal, Switch Shaft (2)
9	Light, Indicator
10	Knob, Control (4)
10	Knob, Control
11	Cover, Bottom
12	Support, Element
13	Cover, Service
13	WPL 312318
13	WP488729 Whirlpool Refrigerator Door Screw
15	Seal, Inifinite Switch
16	Limiter, Temp. (6“ L.R.)
16	Limiter Temp. (7“ – RF)
16	Limiter, Temperature (Use W/3183649 Element)
16	Limiter, Temperature (Use W/3183648 Element)
17	Rail, Side (Left Hand)
17	Rail, Side (Right Hand)
18	WPL 3183380
19	Seal, Sili
19	WPL 3181645
20	Insulation, Ceramic
