RC8600XXQ2 02 – SECTION

Products

Position	Product
	Repair Parts List
	18 Ga. 80~c Rating (Red)
	Wire (14 Ga. 200 c Brown)
	1
	Mounting Screws (10A X 2 (2))
	Clamp (2)
	WPL LIT3147386
	WPL LIT3149929
	Wiring Diagram
	Wire (12 Ga. 150 c Black)
	Wire (14 Ga. 150 c Yellow)
	Wire (14 Ga. 150 c Orange)
	Wire, 25` Roll (Black 14 Ga.)
	Wire, 25` Roll (Red 14 Ga.)
	WA906B Whirlpool Cooktop Glass Scraper
	Wire, 25“ Roll (White 14 GA.)
	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
	242831 Whirlpool Oven Wire
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Green)

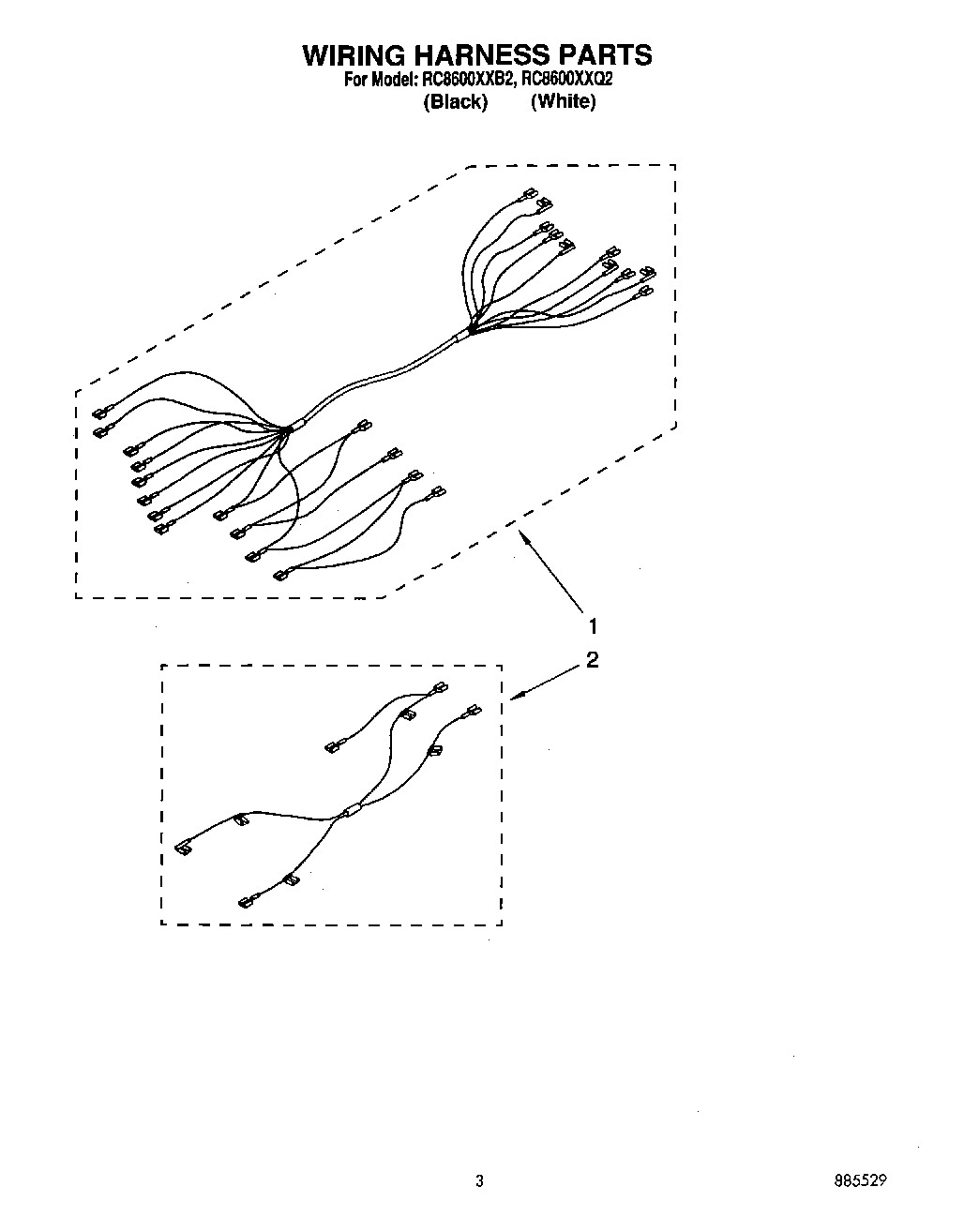

1	Wiring Harness Surface Unit
2	Wiring Harness Infinite Switch
2	WP488729 Whirlpool Refrigerator Door Screw
