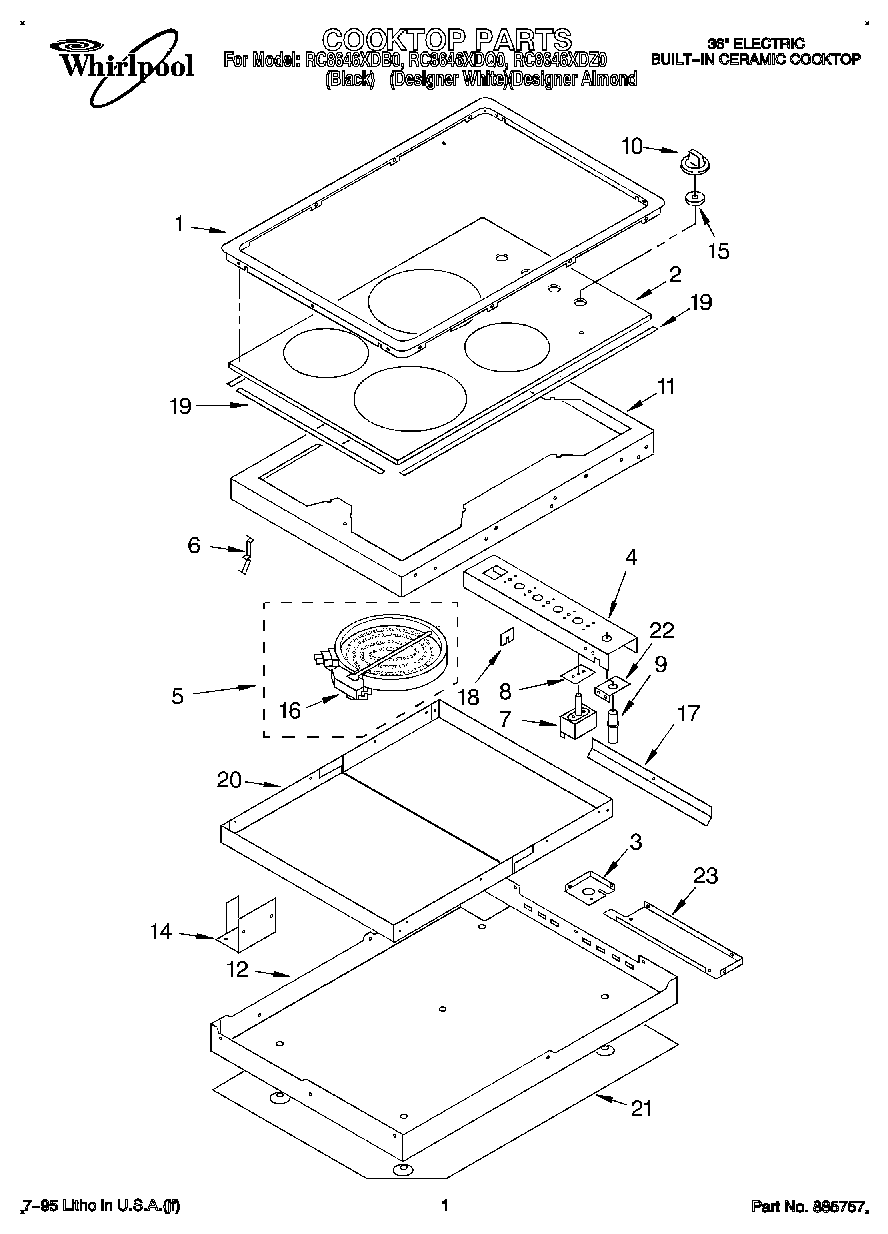

RC8646XDB0 01 – SECTION

Products

Position	Product
	WPL LIT3189547
	Wire (12 Ga. 150 c Black)
	18 Ga. 80~c Rating (Red)
	Wire (14 Ga. 200 c Brown)
	1
	WPL 3179589
	Mounting Screws (10A X 2 (2))
	Clamp (2)
	Hardware Asm.
	WPL LIT3188921
	WPL LIT3189548
	Wire (14 Ga. 150 c Yellow)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Green)
	Wire, 25` Roll (Red 14 Ga.)
	WA906B Whirlpool Cooktop Glass Scraper
	Wire, 25“ Roll (White 14 GA.)
	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
	Wire, 25` Roll (Black 14 Ga.)
	Wire (14 Ga. 150 c Brown)
	242831 Whirlpool Oven Wire
1	Trim Ring, Cooktop (Black)
1	Trim Ring, Cooktop (Designer White)
1	Trim Ring, Cooktop (Designer Almond)
2	Cooktop, Glass (Black)
2	Cooktop, Glass (Designer White)
2	Cooktop, Glass (Designer Almond)
3	Shield, Heat (Exterior)
4	Bracket, Switch Mounting
5	Element, Surface (1700W Right Front)
5	Element, Surface (1400W Left Rear)
5	Element, Surface (RR 2000W/1000W (Dual))
5	W10823694 Whirlpool Surface Element
6	WP486754 Whirlpool Compactor Screw
6	Spring, Locator (8)
7	Switch, Infinite (Use W/1400W Left Rear Burner)
7	WP8203529 Whirlpool Infinite Switch
7	WP486579 Whirlpool Air Conditioner Screw
8	3183956 Whirlpool Oven Seal Switch
9	Light, Indicator
10	Knob, Control (4) (Designer Almond)
10	Knob, Control (4)
10	Knob, Control
11	Backer, Plate
12	Cover, Bottom
14	Bracket, Wiring
15	Seal, Inifinite Switch
16	Switch, Limiter (Use W/3187114 RR Dual Element)
16	Switch, Limiter (Use W/4454439 Element)
16	Switch, Limit (Use W/3184954 Element)
16	Switch, Limiter (Use W/3187188 Element)
17	Screw,
17	Plate, Louver
18	Grommet
19	Seal, Silicone (Large (2))
19	Seal, Silicone (Sides (2))
20	Shield, Heat (2)
21	WPL 3189783
22	Bracket, Ind. Lite
23	Screw (6)
23	Vent, Lower Trim (Screw (2))
23	Bottom, Switch
