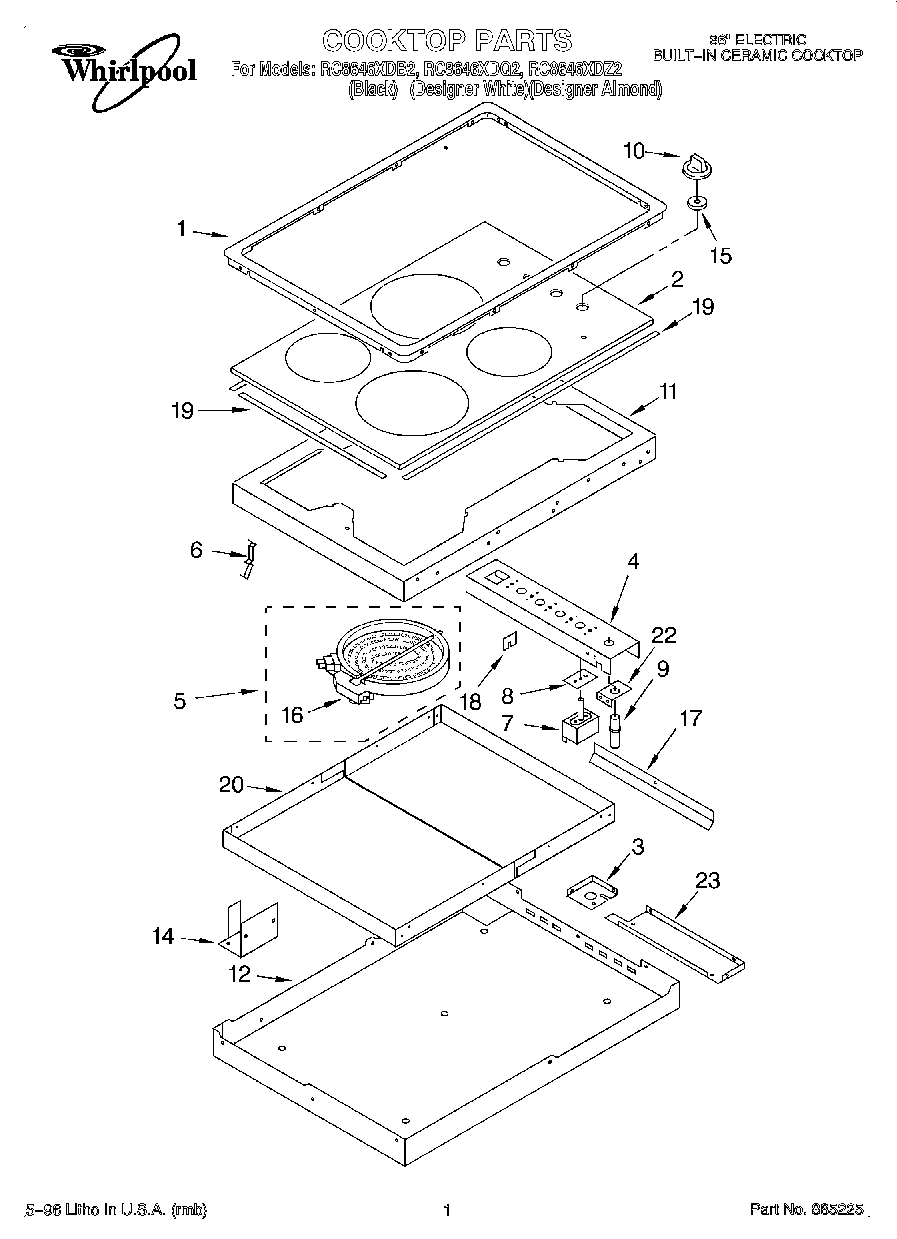

RC8646XDQ2 01 – SECTION

Products

Position	Product
	WA906B Whirlpool Cooktop Glass Scraper
	Wire (14 Ga. 150 c Yellow)
	Wire (12 Ga. 150 c Black)
	18 Ga. 80~c Rating (Red)
	Wire (14 Ga. 200 c Brown)
	1
	WPL LIT3189791
	WPL LIT3189548
	Hardware Asm.
	WPL LIT3190333
	WPL 3179589
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Green)
	Wire, 25` Roll (Red 14 Ga.)
	Wire, 25`` Roll (White 14 GA.)
	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
	Wire, 25` Roll (Black 14 Ga.)
	242831 Whirlpool Oven Wire
	Wire (14 Ga. 150 c Brown)
1	Trim Ring, Cooktop (Designer White)
1	Trim Ring, Cooktop (Black)
1	Trim Ring, Cooktop (Designer Almond)
2	Cooktop, Glass (Designer Almond)
2	Cooktop, Glass (Designer White)
2	Cooktop, Glass (Black)
3	Shield, Heat (Exterior)
4	Bracket, Switch Mounting
5	Element, Surface (RR 2000W/1000W (Dual))
5	Element, Surface (7`` R.F. 1700W)
5	W10823694 Whirlpool Surface Element
5	Element, Surface (6`` L.R. 1400W)
6	WP486754 Whirlpool Compactor Screw
6	Spring, Locator (8)
7	Switch, Infinite (Use W/1700W Right Front & 2100W Right Rear Burner)
7	WP486579 Whirlpool Air Conditioner Screw
7	Switch, Infinite (Use W/1400W Left Rear Burner)
7	WP8203529 Whirlpool Infinite Switch
8	3183956 Whirlpool Oven Seal Switch
9	Light, Indicator
10	Knob, Control
10	Knob, Control (4)
10	Knob, Control (4) (Designer Almond)
11	Backer, Plate
12	Cover, Bottom
14	Bracket, Wiring
15	Seal, Inifinite Switch
16	Limiter, Temp (1700W - RF)
16	Limiter, Temp (2400W - LF)
16	Limiter, Temp. (1400 W - LR)
17	Screw,
17	Plate, Louver
18	Grommet
19	Seal, Silicone (Sides (2))
19	Seal, Silicone (Large (2))
20	Shield, Heat (2)
22	Bracket, Ind. Lite
23	Bottom, Switch
23	Screw (6)
23	Vent, Lower Trim (Screw (2))
