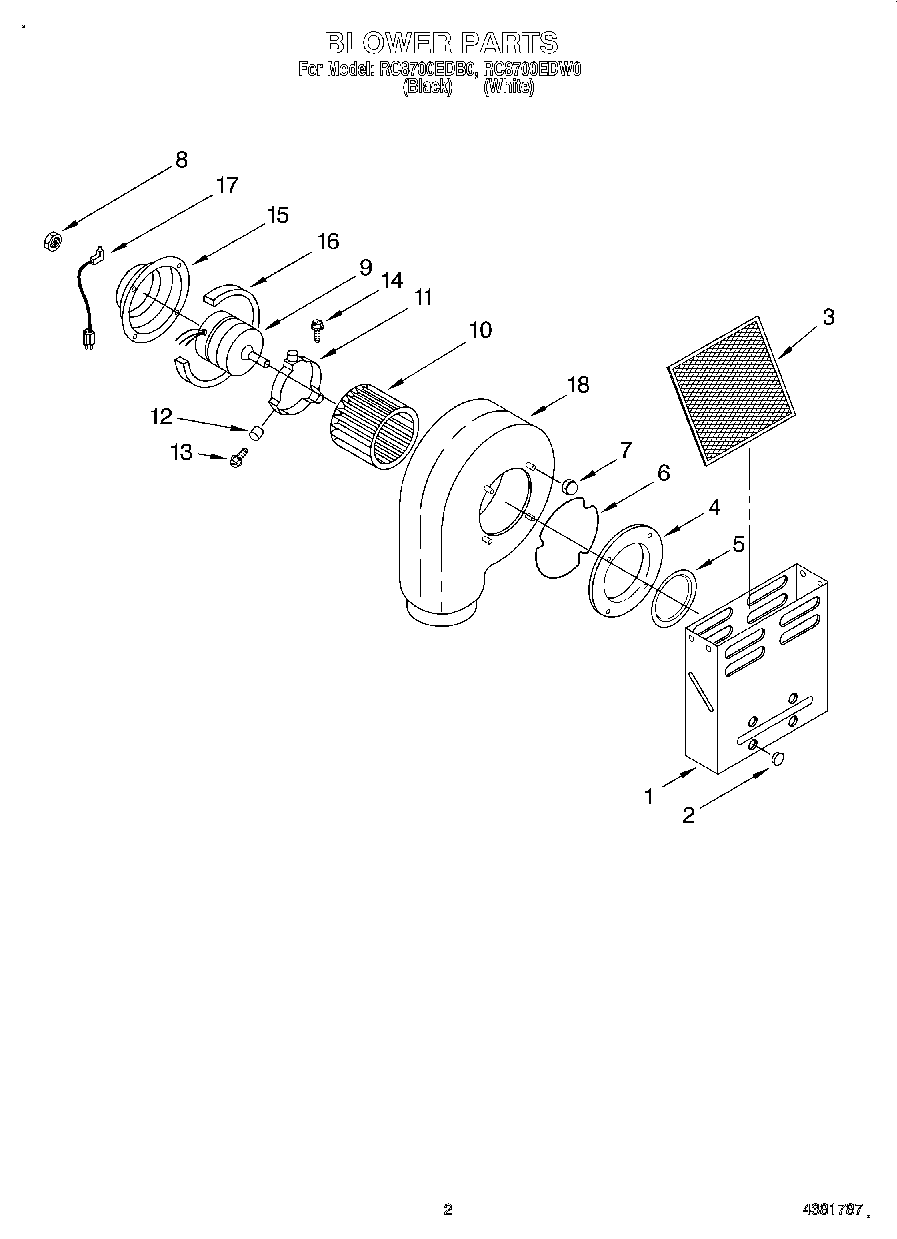

RC8700EDW0 02 – BLOWER

Products

Position	Product
1	Plenum
2	Plug, Button
3	WPY706012 Whirlpool Filter
4	Ring, Inlet
5	Ring, Restrictor
6	Spring, Retainer
7	WPY707702 Whirlpool Locknut
8	Cap, Nut (4)
9	Motor, Blower
10	WPY707985 Whirlpool Wheel Assembly
11	3415F003-51 Whirlpool Motor Band
12	WP71003558 Whirlpool Isolator
13	WP4159193 Whirlpool Screw
14	Screw, Band
14	Nut, Band
15	Cover, Motor
16	Gasket, Foam
17	Cord, Power
18	Housing, Blower
