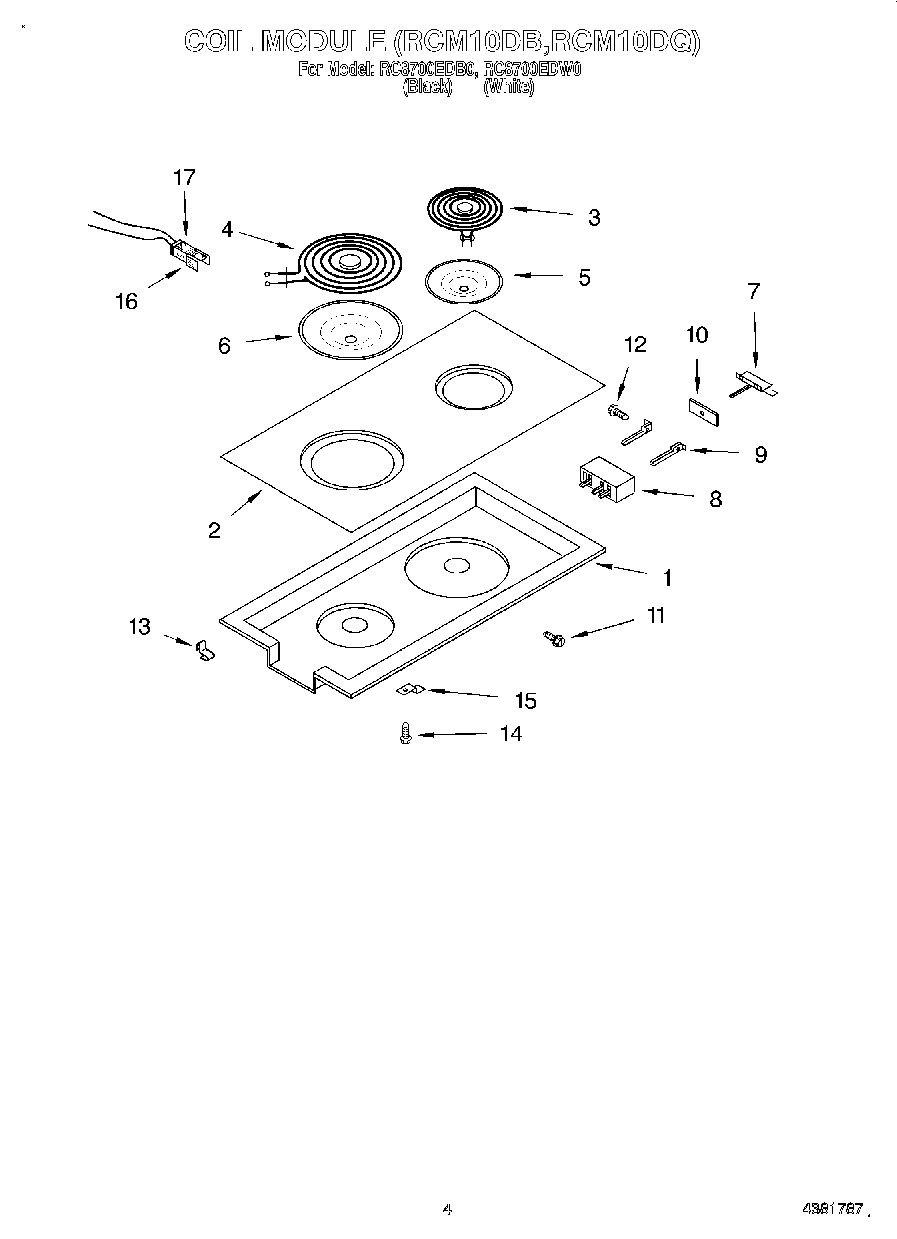

RC8700EDW0 04 – COIL MODULE (RCM10DB, RCM10DQ)

Products

Position	Product
1	2002F188-81 Whirlpool Cooktop
1	Pan, Module
1	WP2002F188-09 Whirlpool Cooktop
2	Top, Module
3	WPY04100165 Whirlpool Surface Element
4	MP21MA Chromalox Range Top Burner Element Unit 8" 2100W 240V
5	715877 Whirlpool Electric Range 6" Chrome Drip Pan
6	715878 Whirlpool Range 8" Chrome Drip Pan
7	Bracket, Retainer
8	WPY708730 Whirlpool Terminal Block
9	Y708572 Whirlpool Spade Contact
10	708834 Whirlpool Oven Insulator
11	Screw, Pan (8)
12	Screw, Contact (2)
13	Clip, Top (4)
14	WP74004005 Whirlpool Screw
15	Bracket, Rcptcl.
16	12001676 Whirlpool Range Surface Burner Receptacle Kit
17	WP74007474 Whirlpool Dishwasher Element Receptacle
