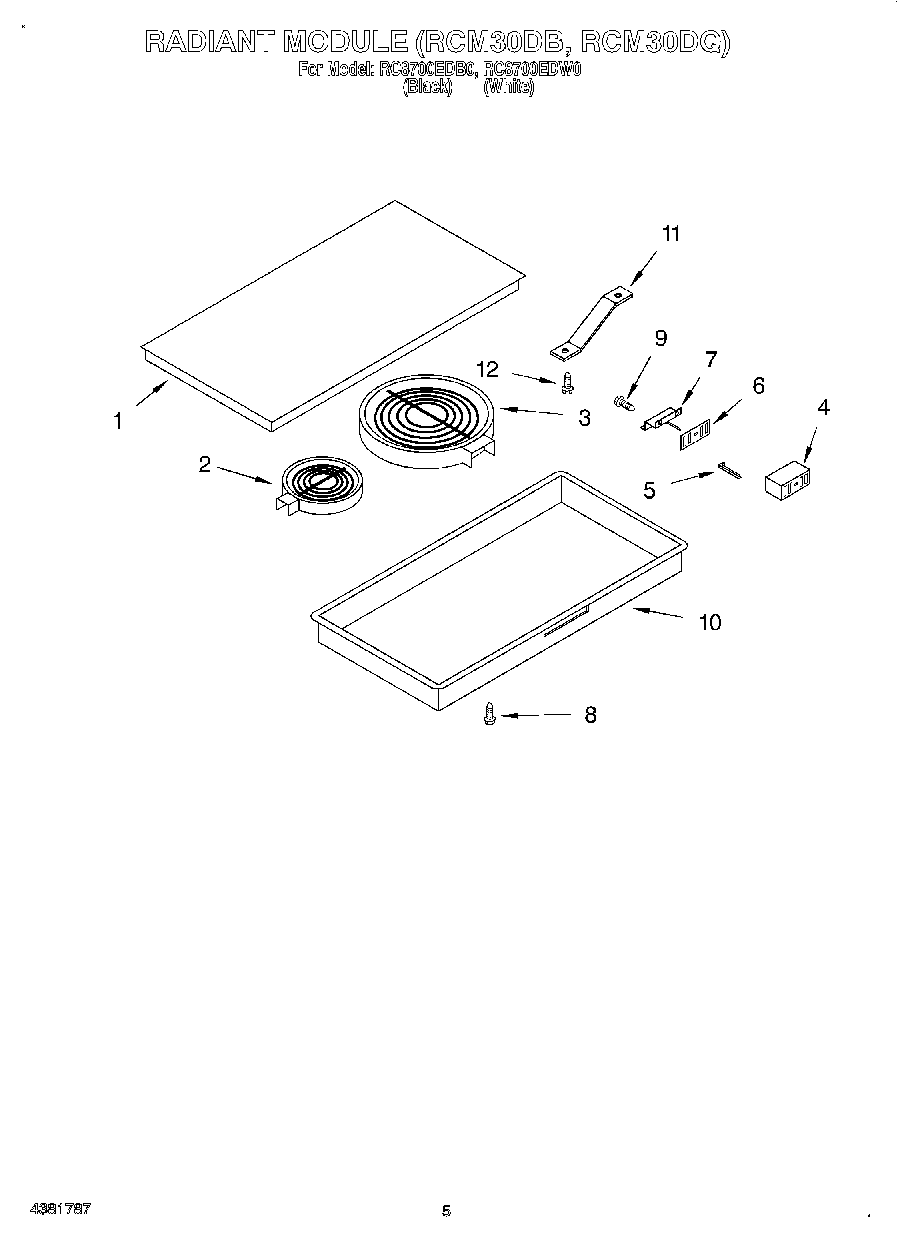

RC8700EDW0 05 – RADIANT MODULE (RCM30DB, RCM30DQ)

Products

PositionProduct
1Top, Module (Black)
1Top, Module (White)
2W10823711 Whirlpool Surface Element Left Front and Right Rear
3W10823693 Whirlpool Surface Element
4WPY708730 Whirlpool Terminal Block
5Y708572 Whirlpool Spade Contact
6708834 Whirlpool Oven Insulator
7Bracket, Retainer
8Screw, Pan (8)
9Screw, Contact (2)
10Pan, Module
11Bracket, Support
12WP59002061 Whirlpool Microwave Screw
