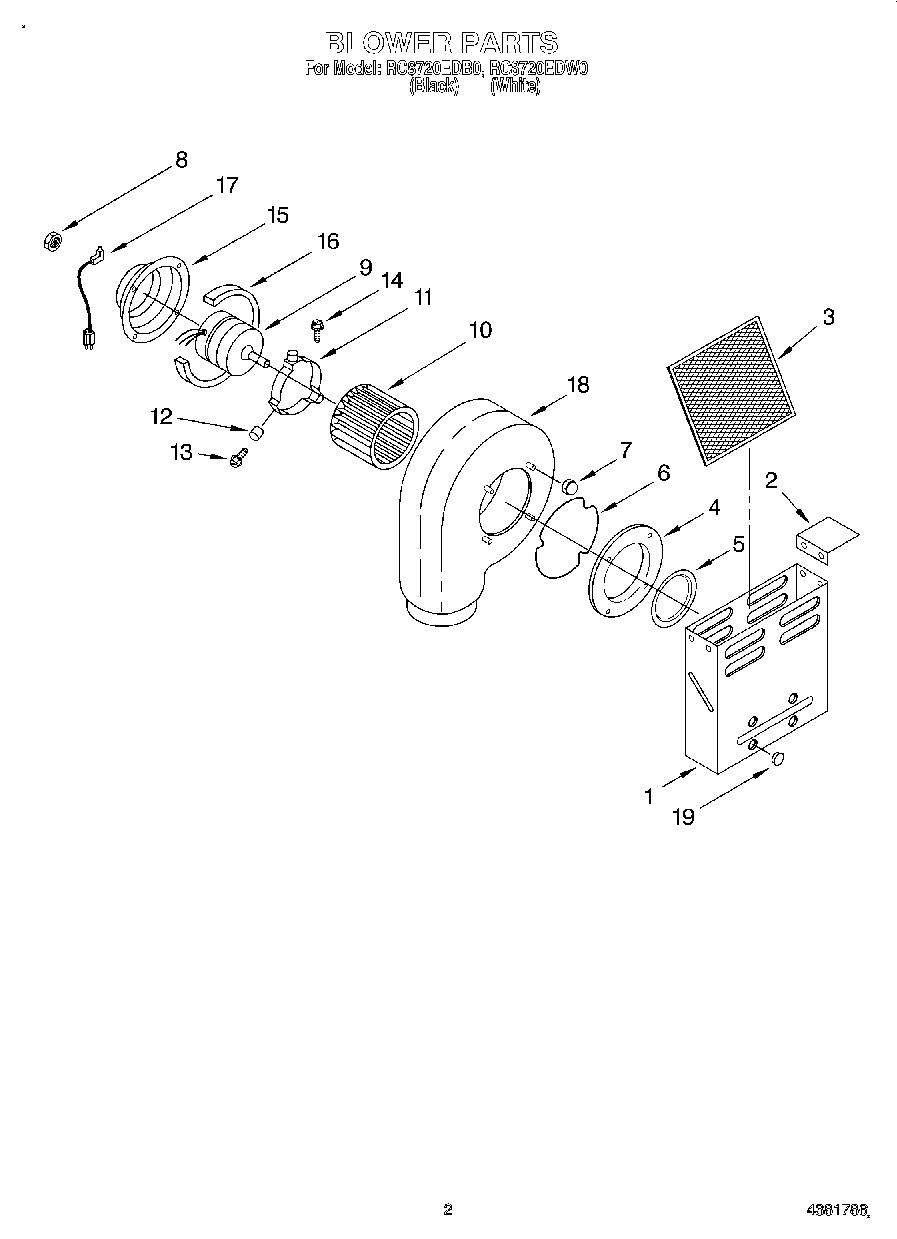

RC8720EDB0 02 – BLOWER

Products

Position	Product
1	Plenum
2	Bracket, Filler
3	WPY706012 Whirlpool Filter
4	Ring, Inlet
5	Ring, Restrictor
6	Spring, Retainer
7	WPY707702 Whirlpool Locknut
8	Cap, Nut (4)
9	Motor, Blower
10	WPY707985 Whirlpool Wheel Assembly
11	3415F003-51 Whirlpool Motor Band
12	WP71003558 Whirlpool Isolator
13	WP4159193 Whirlpool Screw
14	Screw, Band
14	Nut, Band
15	Cover, Motor
16	Gasket, Foam
17	Cord, Power
18	Housing, Blower
19	Plug, Button
