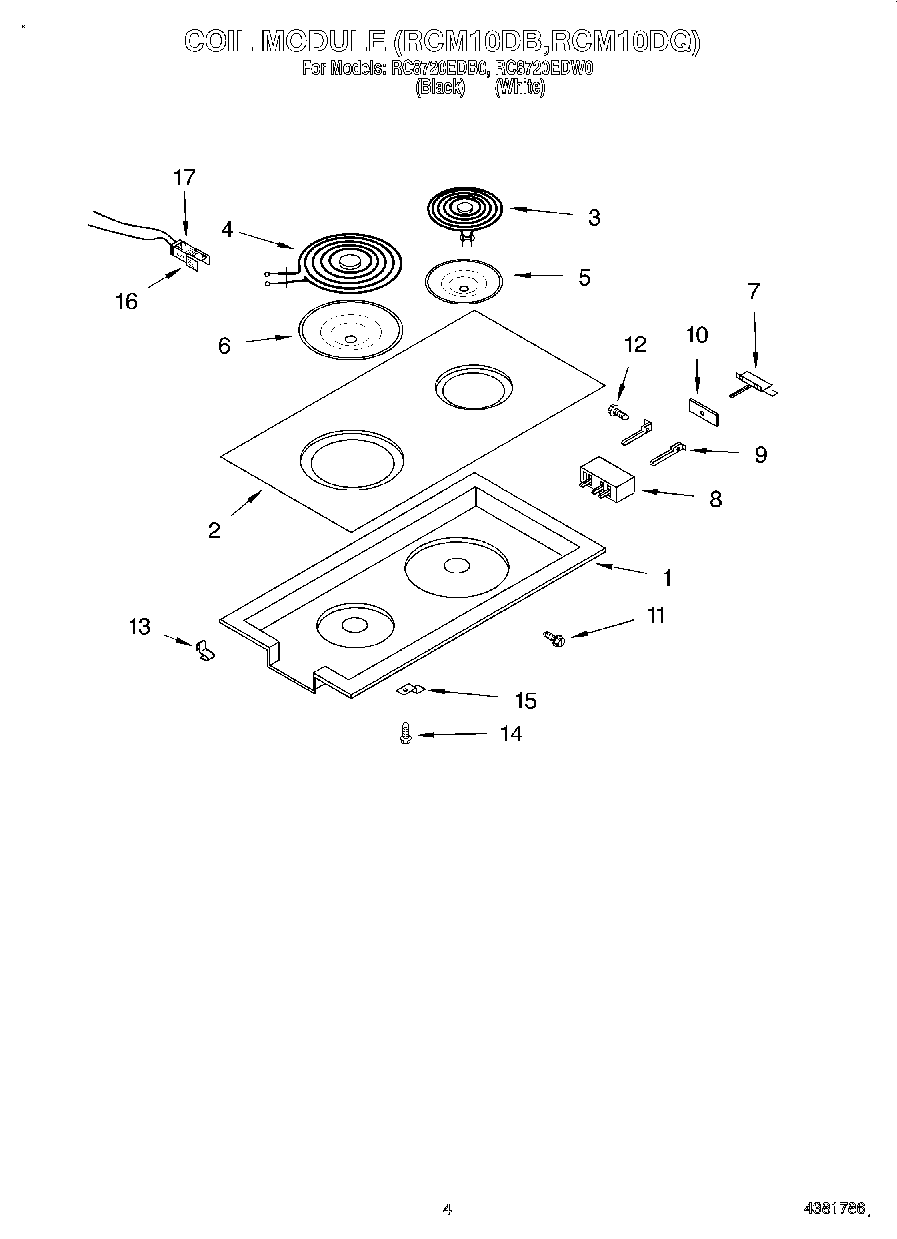

RC8720EDB0 04 – COIL MODULE (RCM10DB, RCM10DQ)

RC8720EDB0 04 – COIL MODULE (RCM10DB, RCM10DQ)

Written by

in

RC8720EDB0 04 – COIL MODULE (RCM10DB, RCM10DQ)

Products

PositionProduct
12002F188-81 Whirlpool Cooktop
1Pan, Module
1WP2002F188-09 Whirlpool Cooktop
2Top, Module
3WPY04100165 Whirlpool Surface Element
4MP21MA Chromalox Range Top Burner Element Unit 8" 2100W 240V
5715877 Whirlpool Electric Range 6" Chrome Drip Pan
6715878 Whirlpool Range 8" Chrome Drip Pan
7Bracket, Retainer
8WPY708730 Whirlpool Terminal Block
9Y708572 Whirlpool Spade Contact
10708834 Whirlpool Oven Insulator
11Screw, Pan (8)
12Screw, Contact (2)
13Clip, Top (4)
14WP74004005 Whirlpool Screw
15Bracket, Rcptcl.
1612001676 Whirlpool Range Surface Burner Receptacle Kit
17WP74007474 Whirlpool Dishwasher Element Receptacle
