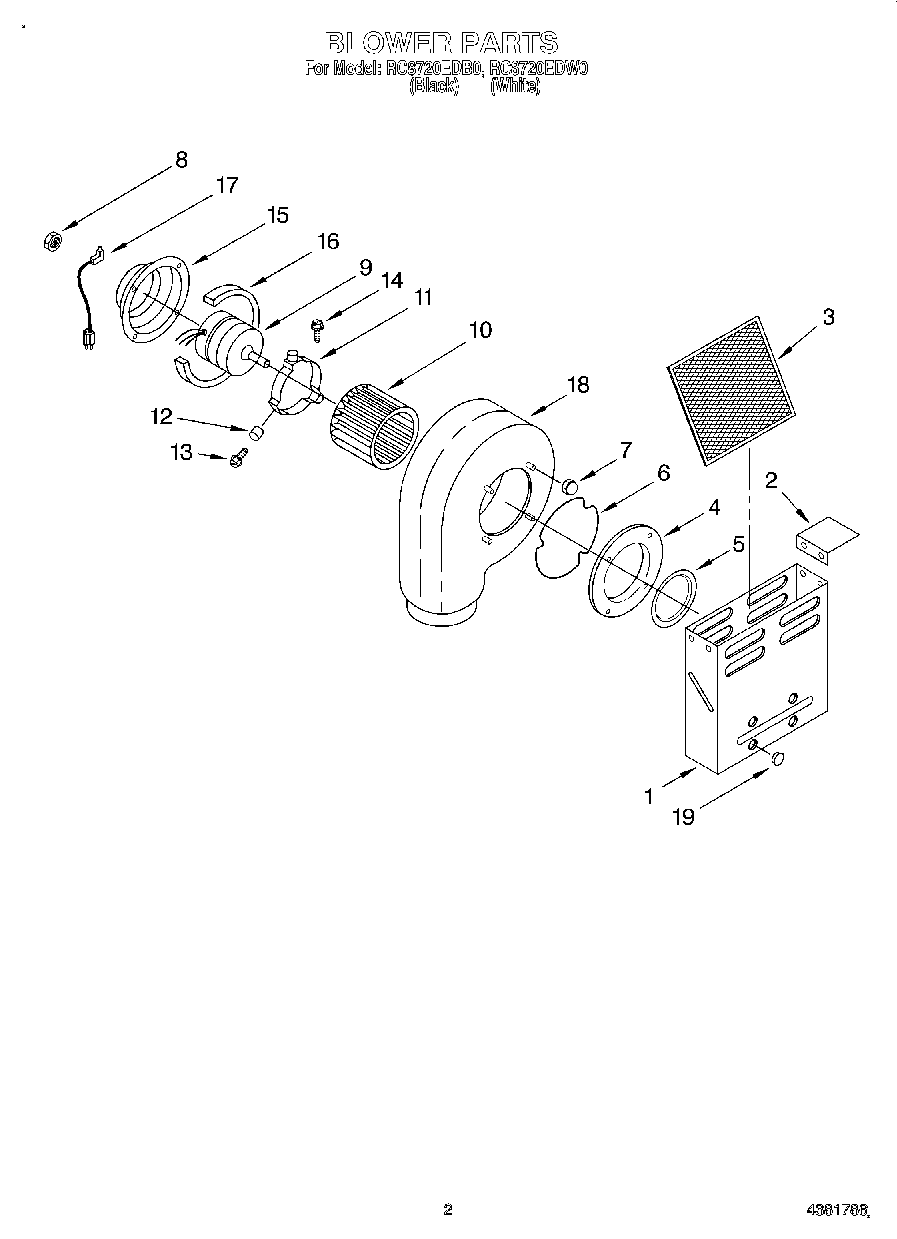

| 1 | Plenum |
| 2 | Bracket, Filler |
| 3 | WPY706012 Whirlpool Filter |
| 4 | Ring, Inlet |
| 5 | Ring, Restrictor |
| 6 | Spring, Retainer |
| 7 | WPY707702 Whirlpool Locknut |
| 8 | Cap, Nut (4) |
| 9 | Motor, Blower |
| 10 | WPY707985 Whirlpool Wheel Assembly |
| 11 | 3415F003-51 Whirlpool Motor Band |
| 12 | WP71003558 Whirlpool Isolator |
| 13 | WP4159193 Whirlpool Screw |
| 14 | Screw, Band |
| 14 | Nut, Band |
| 15 | Cover, Motor |
| 16 | Gasket, Foam |
| 17 | Cord, Power |
| 18 | Housing, Blower |
| 19 | Plug, Button |
