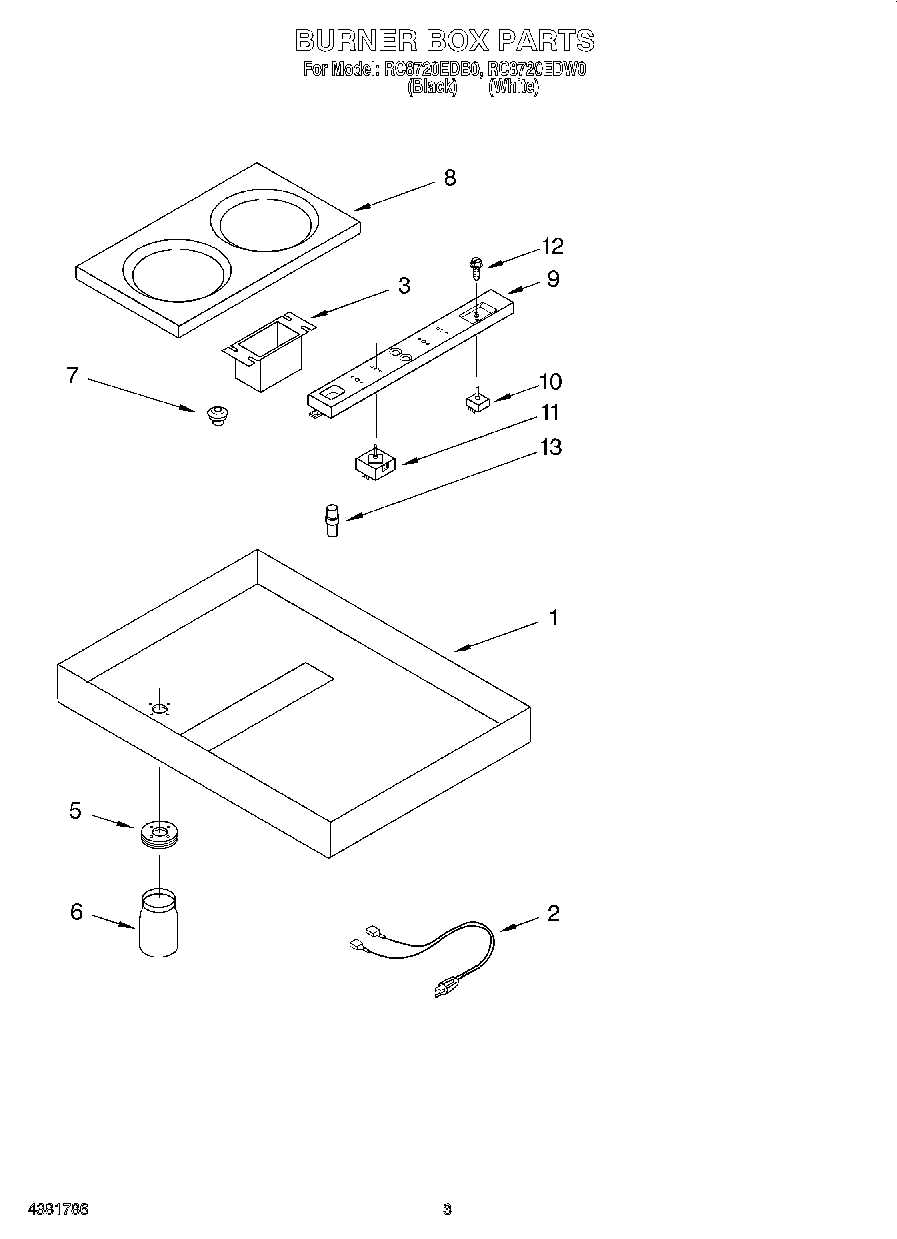

RC8720EDW0 03 – BURNER BOX, LITERATURE

Products

Position	Product
	Guide, Use & Care
	Instructions, Installation
1	Burner Box
2	Cord, Power
3	Screw, Cover (4)
3	Box, Junction
3	Cover, Box
5	Lid, Jar
6	WPY707869 Whirlpool Drain Jar
7	Relief, Strain
8	Screw, Insert
8	Insert, Burner Box
9	Bracket, Switch
10	Grommet, Switch
10	71002058 Whirlpool Screw 8-32 x 0.18
10	Switch, Fan
11	SWITCH-INF
12	WP488234 Whirlpool Air Conditioner Screw
13	Harness, Switch
13	Light, Indicator
13	Hardware, Mounting
