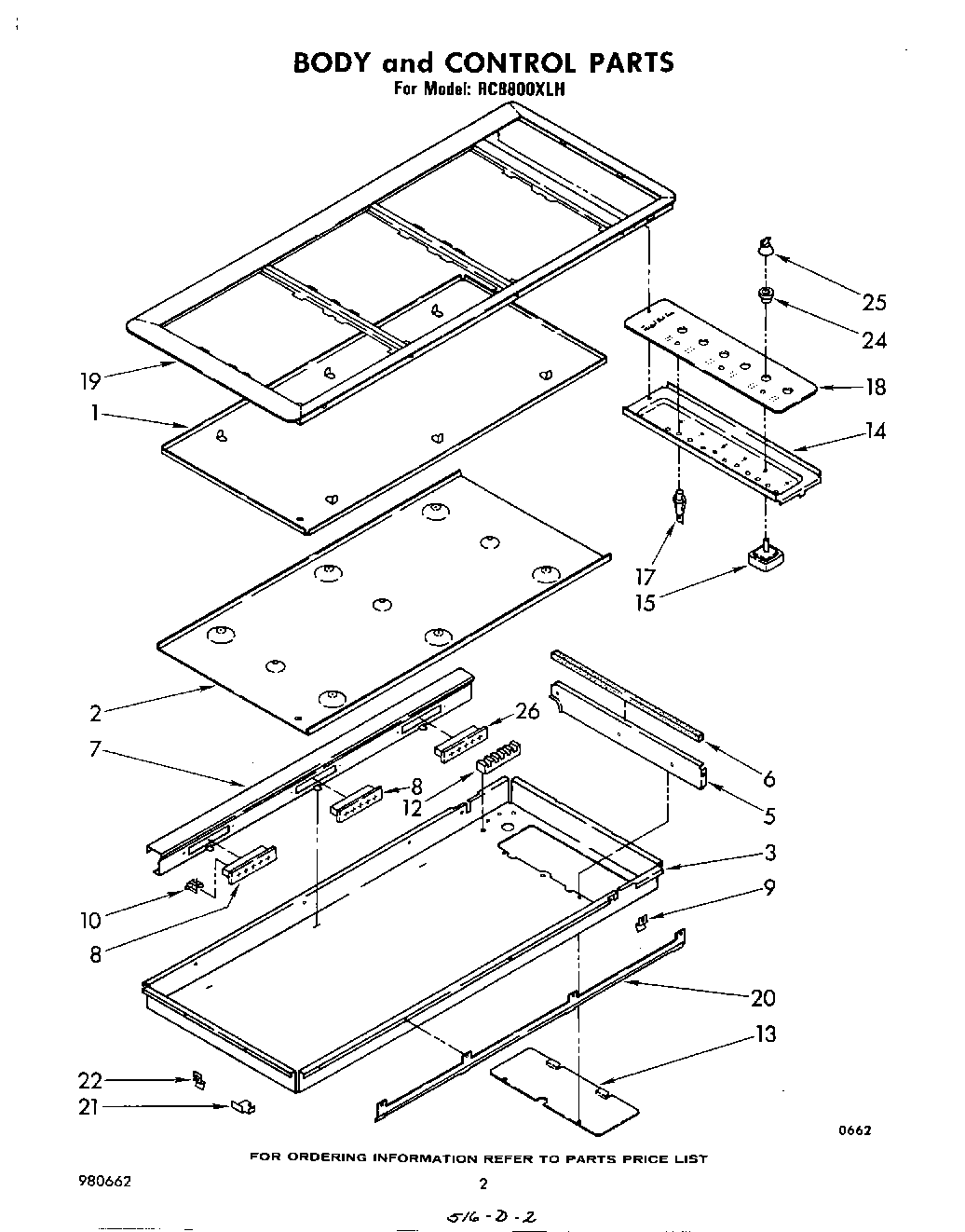

RC8800XLH 02 – BODY AND CONTROL , LIT/OPTIONAL

Products

Position	Product
1	Retainer, Insulation
2	Shield, Bottom
3	Box, Outer
3	W10759522 Whirlpool Screw
3	Screw,10-24 x 1/2
5	Divider, Box
6	Pad, Foam
7	Shield, Wire
8	Receptacle, Female (2)
10	Terminal, Female (10)
12	WP8203546 Whirlpool Terminal Block
12	WPL 834649
12	Hex Nut, 10-32 (6)
13	WPL 868959
13	Cover, Access
14	Bracket, Control
15	Switch, Infinite (6)
15	WPL 486525
17	WPL 868433
18	Panel, Control (Glass)
18	WPL 866454
19	Frame, Cooktop
20	Shield, Front
20	Clip, Frame (4)
20	Screw, 10-24 x 1 (4)
21	Spacer, End
22	Clip, Receptacle (4)
22	Screw 10-24 x 1/2
24	Bushing, Switch (4)
25	Knob, Control (2) (Oven Selector & Thermostat)
26	Receptacle, Female
26	Installation Instructions
26	Guide, Use & Care
26	List, Repair Parts
