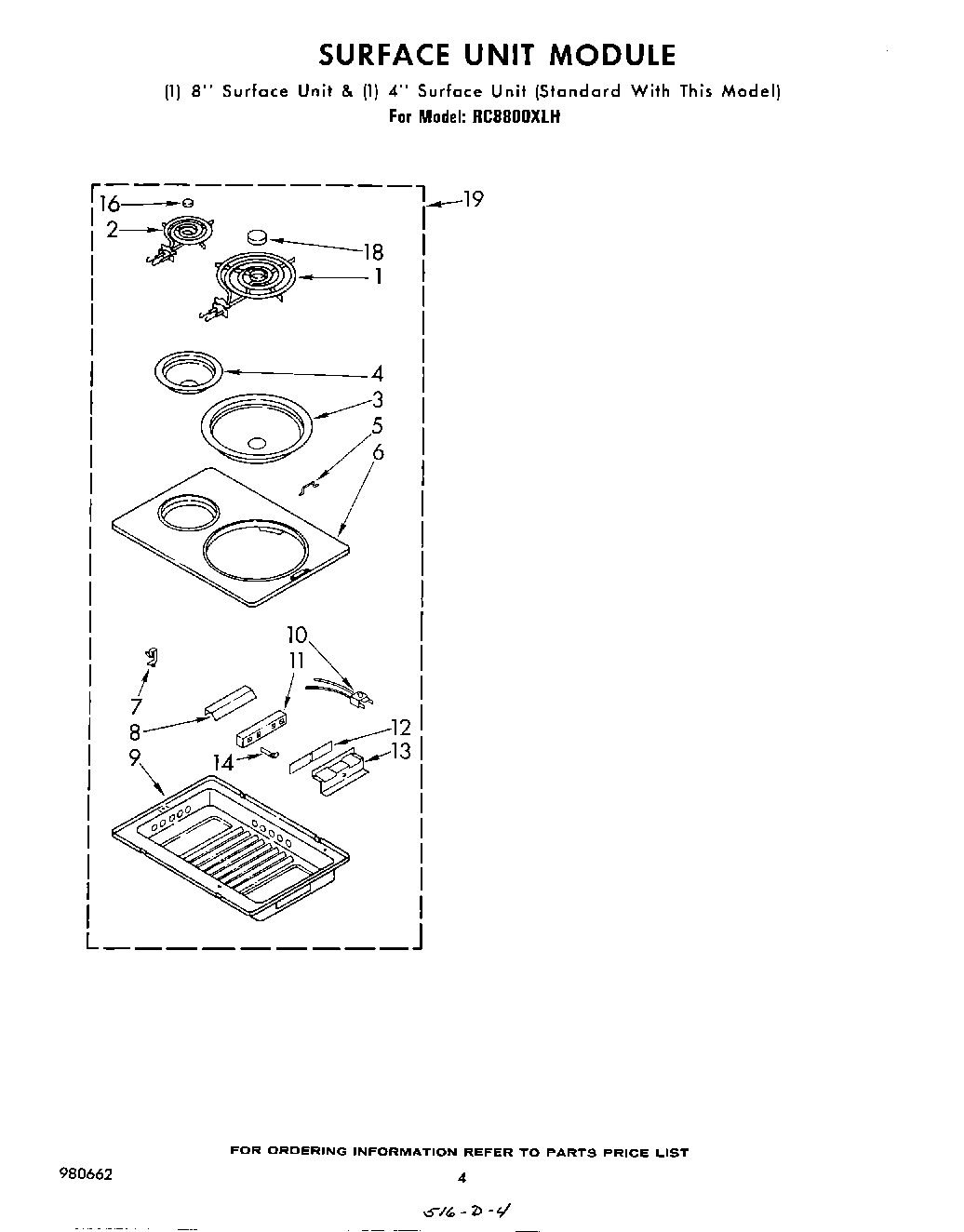

RC8800XLH 03 – SURFACE UNIT

Products

Position	Product
1	WP660533 Whirlpool Oven 8" Surface Element
2	Unit, Surface (4``) (1)
3	DRIP BOWL 8" W/HOLE CHROME
4	Bowl, Surface Unit (4``) (1)
5	Handle, Cooktop
6	Hinge, Oven Door (Auxiliary) (Screw, 8-32 x 3/8 (2) (Top))
6	Cooktop (4/8)
7	Clamp, Wire
8	Shield, Wire
9	Pan, Surface Unit Modular
10	BURNER RECEPTACLE KIT
11	Receptacle, Male
11	WPL 486525
12	Insulator, Receptacle
13	WP486754 Whirlpool Compactor Screw
13	Bracket, Ground
13	Pushnut, 1/8
14	Terminal, Male (4)
16	WPL 868522
18	Medallion (For 4`` Unit)
19	Surface Unit Module (Complete)
