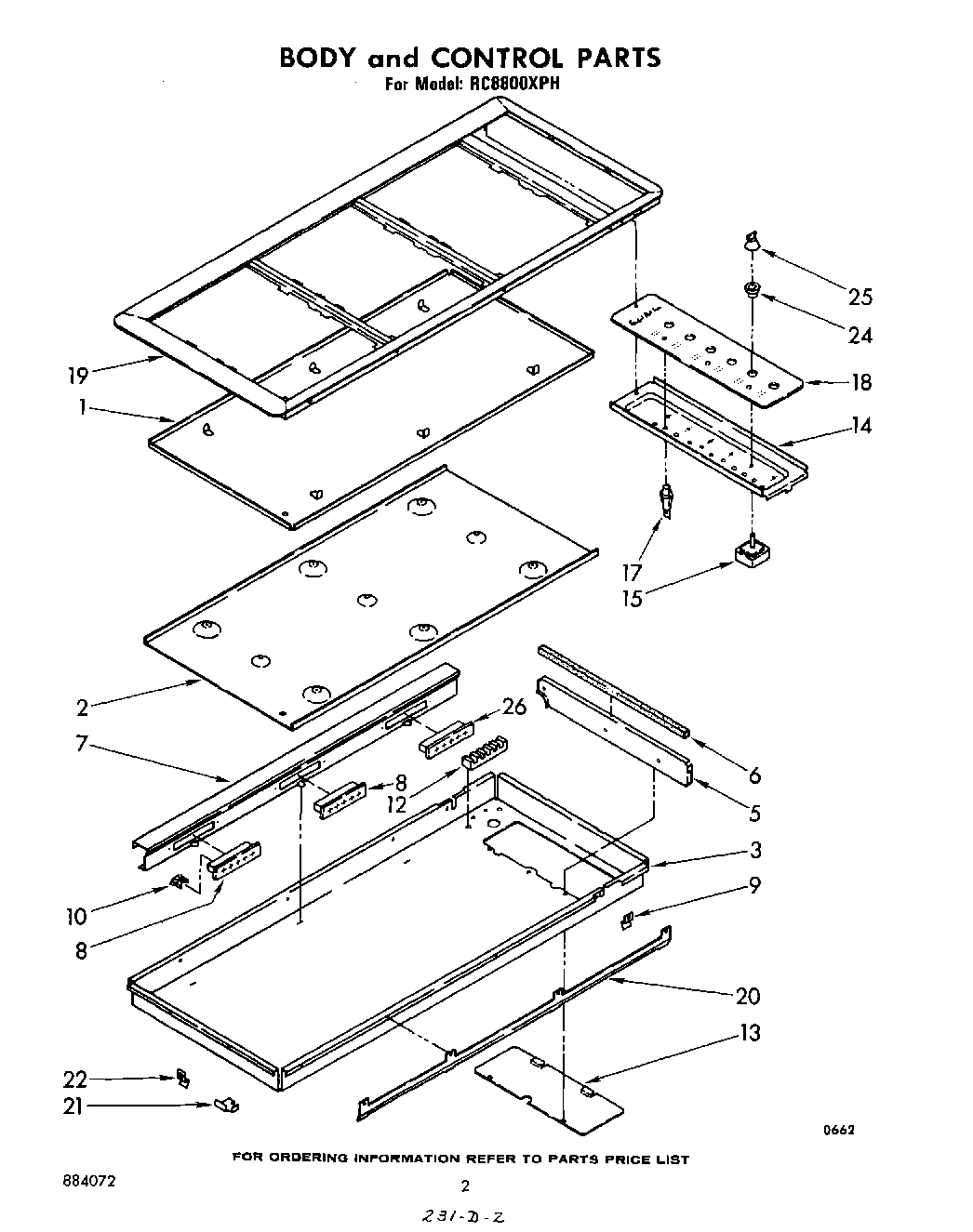

RC8800XPH 02 – BODY AND CONTROL , LIT/OPTIONAL

RC8800XPH 02 – BODY AND CONTROL , LIT/OPTIONAL

Written by

in

RC8800XPH 02 – BODY AND CONTROL , LIT/OPTIONAL

Products

PositionProduct
1Retainer, Insulation
2Shield, Bottom
3W10759522 Whirlpool Screw
3Box, Outer
3Screw,10-24 x 1/2
5Divider, Box
6Pad, Foam
7Shield, Wire
8Receptacle, Female (2)
10Terminal, Female (10)
12Hex Nut, 10-32 (6)
12WPL 834649
12WP8203546 Whirlpool Terminal Block
13Cover, Access
13WPL 868959
14Bracket, Control
15Switch, Infinite (6)
15WPL 486525
17WPL 868433
18WPL 866454
18Panel, Control (Glass)
19Frame, Cooktop
20Shield, Front
20Clip, Frame (4)
20Screw, 10-24 x 1 (4)
21Spacer, End
22Screw 10-24 x 1/2
22Clip, Receptacle (4)
24Bushing, Switch (4)
25Knob, Control (2) (Oven Selector & Thermostat)
26WPL 308500
26Receptacle, Female
26Installation Instructions
26Guide, Use & Care
26List, Repair Parts
