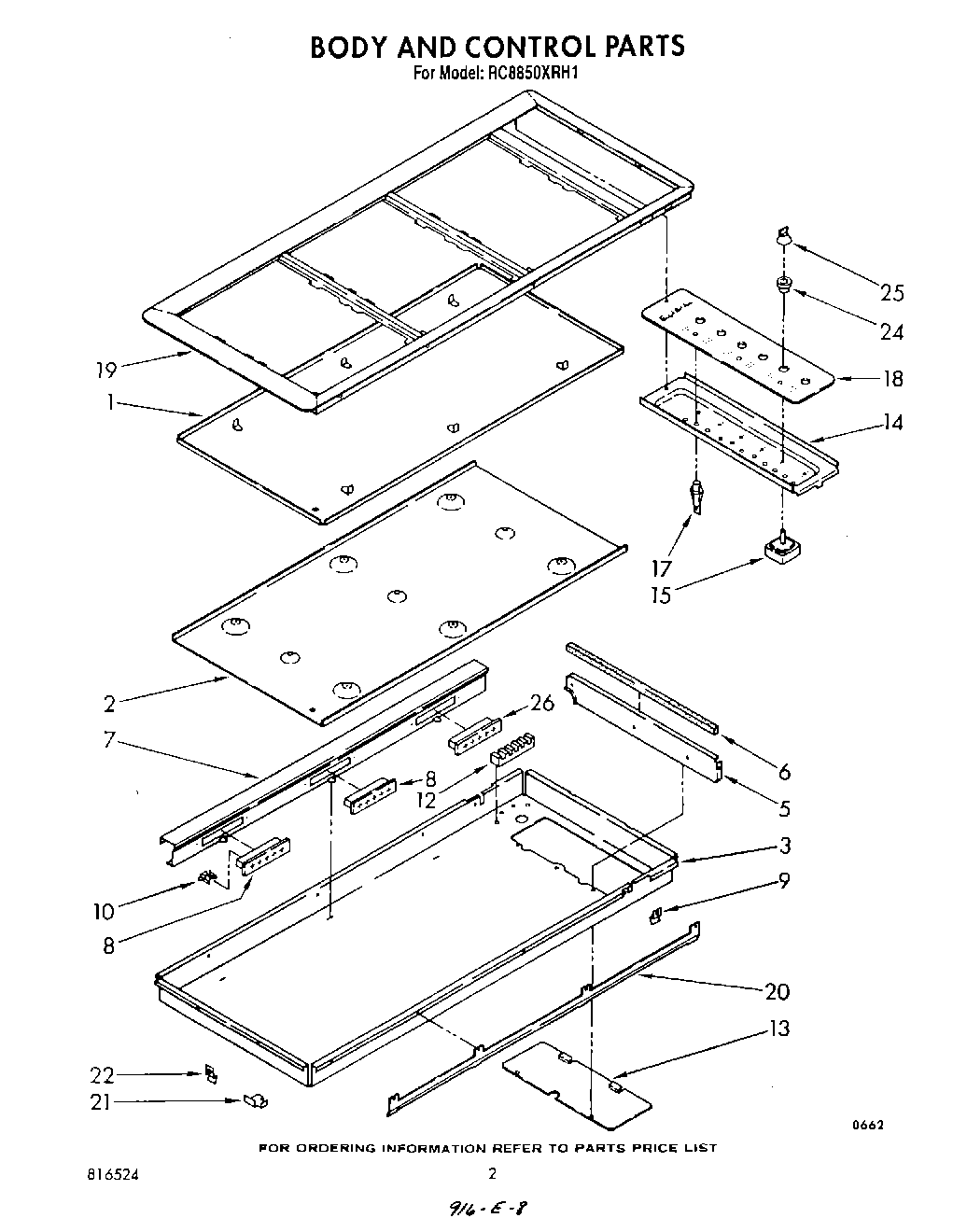

RC8850XRH1 02 – SECTION

Products

Position	Product
1	Retainer, Insulation
2	Shield, Bottom
3	W10759522 Whirlpool Screw
3	Screw,10-24 x 1/2
3	Box, Outer
5	Divider, Box
6	Pad, Foam
7	Shield, Wire
8	Receptacle, Female (2)
10	WP486579 Whirlpool Air Conditioner Screw
10	Terminal Female
12	WP8203546 Whirlpool Terminal Block
12	Hex Nut, 10-32 (6)
12	WPL 834649
13	WPL 868959
13	Cover, Access
14	Bracket, Control
15	Switch, Infinite (6)
15	Screw, 8-32 x 3/16 (2)
17	WPL 868433
18	Panel, Control (Glass)
18	WPL 866454
19	Frame, Cooktop
20	Shield, Front
20	Clip, Frame (4)
20	Screw, 10-24 x 1 (4)
21	Spacer, End
22	Clip, Receptacle (4)
22	Screw 10-24 x 1/2
24	Bushing, Switch (4)
25	Control Knob (4) (Surface Unit)
26	Receptacle, Female
