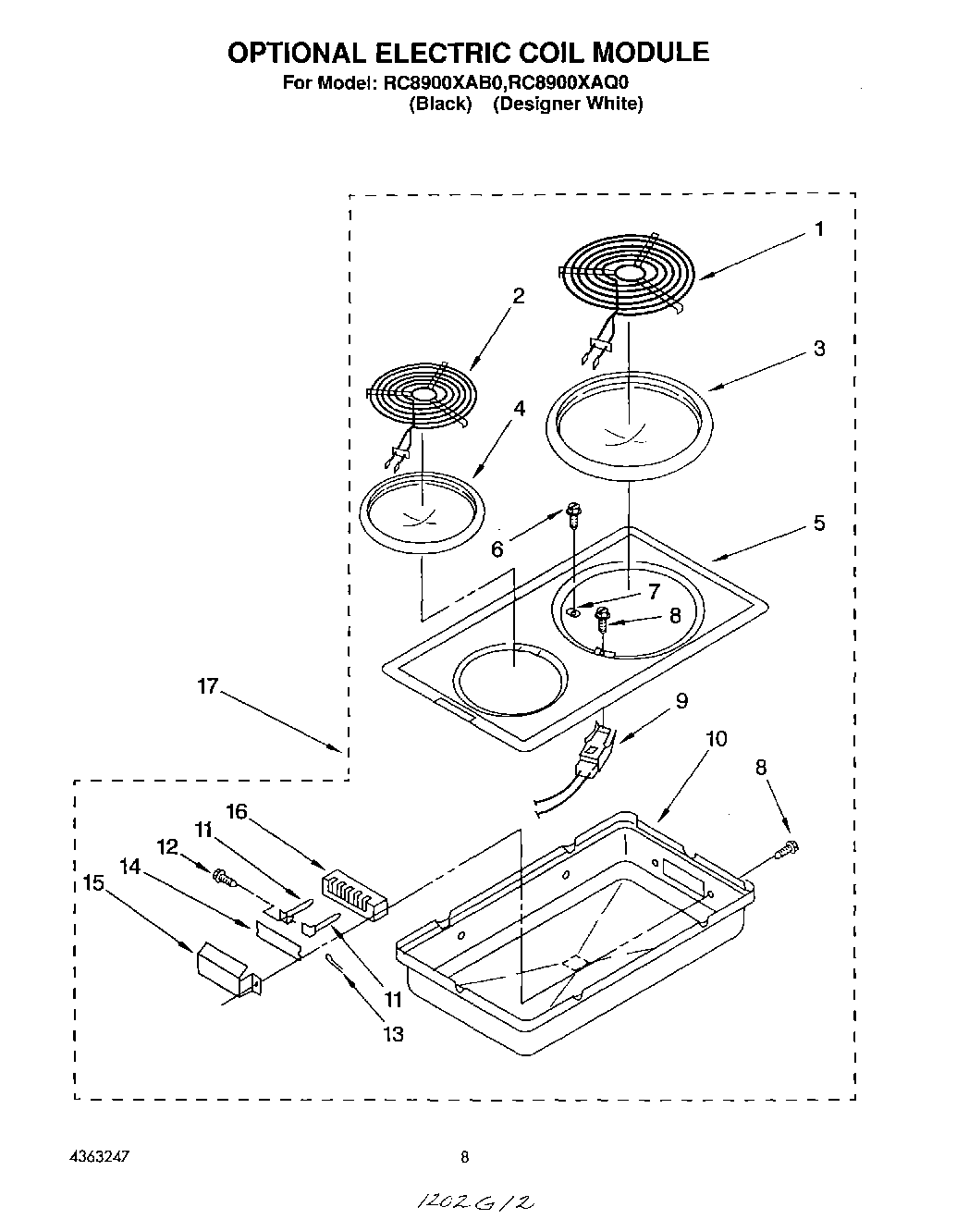

RC8900XAB0 07 – OPTIONAL ELECTRIC COIL MODULEadmin2025-04-26T08:40:50+00:00RC8900XAB0 07 – OPTIONAL ELECTRIC COIL MODULE
Products
| Position | Product |
|---|
| 1 | WP660533 Whirlpool Oven 8" Surface Element |
| 2 | WP660532 Whirlpool Oven Surface Element |
| 3 | DRIP BOWL 8" W/HOLE CHROME |
| 3 | W10278125 Whirlpool Drip Bowl |
| 4 | Spark Module |
| 4 | WPW10196406 Whirlpool 6" Chrome Drip Bowl |
| 5 | Top, Module (White) |
| 5 | Top, Module (Black) |
| 5 | Top, Module (Chrome) |
| 6 | Screw |
| 7 | Nut |
| 8 | WP313808 Whirlpool Screw |
| 9 | BURNER RECEPTACLE KIT |
| 10 | Pan, Module |
| 11 | Contact, Spade (4) |
| 11 | WPL 786726 |
| 12 | Screw (4) No.8-32 x 3/18 |
| 13 | Wire, Ground (Green) |
| 14 | Insulator |
| 15 | Bracket, Plug Block Mounting |
| 16 | Plug Block, Module |
| 17 | Module, Complete (Black) |
| 17 | Module, Complete (White) |
| 17 | Complete Module (Brushed Chrome) |
