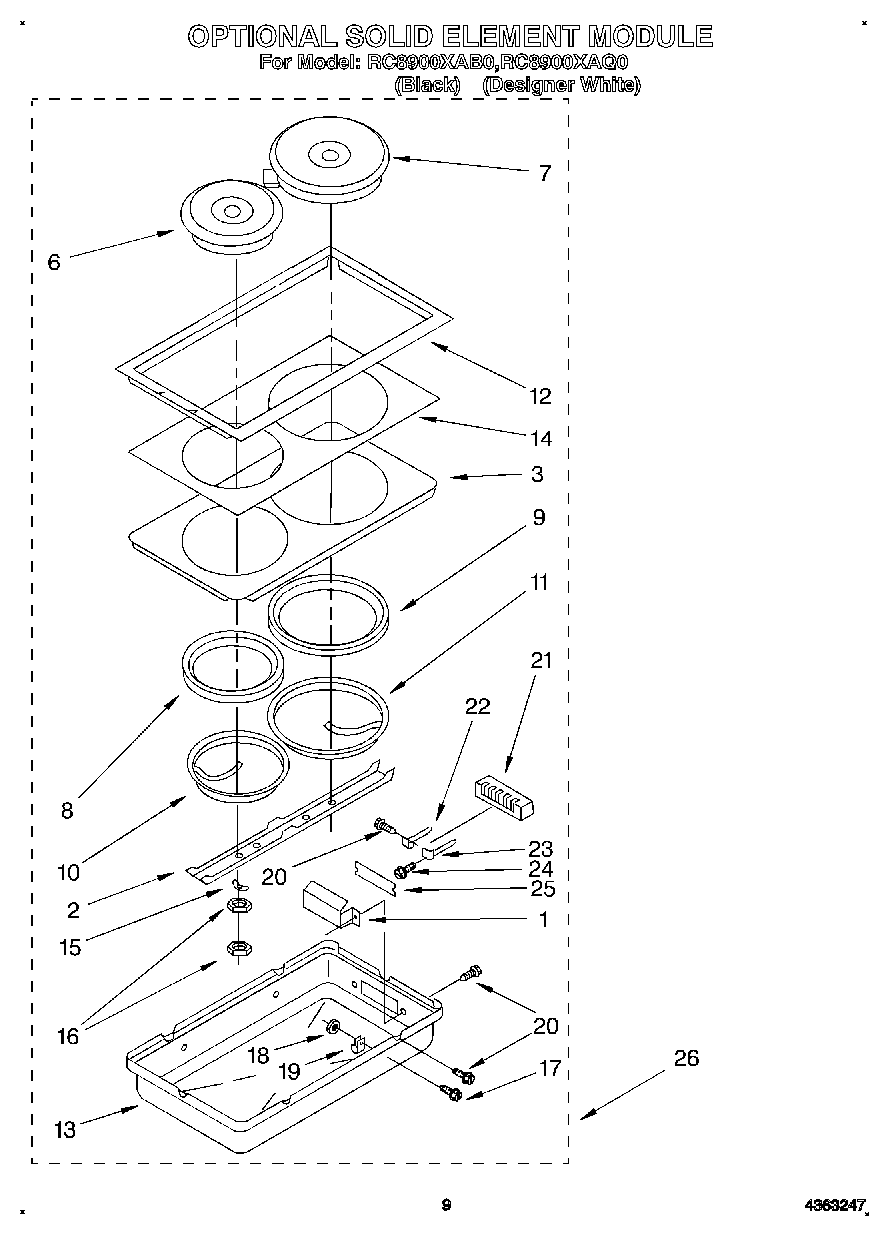

RC8900XAB0 08 – OPTIONAL SOLID ELEMENT MODULE

Products

Position	Product
1	WPL 786707
2	WPL 786708
3	WPL 786709
6	Element 6“
7	Element 8“
8	Ring, Gasket (6“)
9	WPL 786715
10	Gasket 6“
11	Gasket 8“
12	Trim, Top (Black)
12	Trim, Top-Chrome
12	Trim, Top (White)
13	Pan Module
14	WPL 786720
14	Glass, Top (White)
15	Spring, Leaf
16	Nut, Hex
17	Screw, 8-32 X 3/8 (4)
18	WP488130 Whirlpool Air Conditioner Nut
19	Clamp
20	Screw, Sq. Drive
21	Plug Block, Module
22	Contact, Spade (4)
23	WPL 786726
24	Screw (4) No.8-32 x 3/18
25	Insulator
26	Module, Complete (Black Frame with Black Glass)
26	Module, Complete (White Frame with White Glass)
26	Module, Complete (Chrome Frame with Black Glass)
