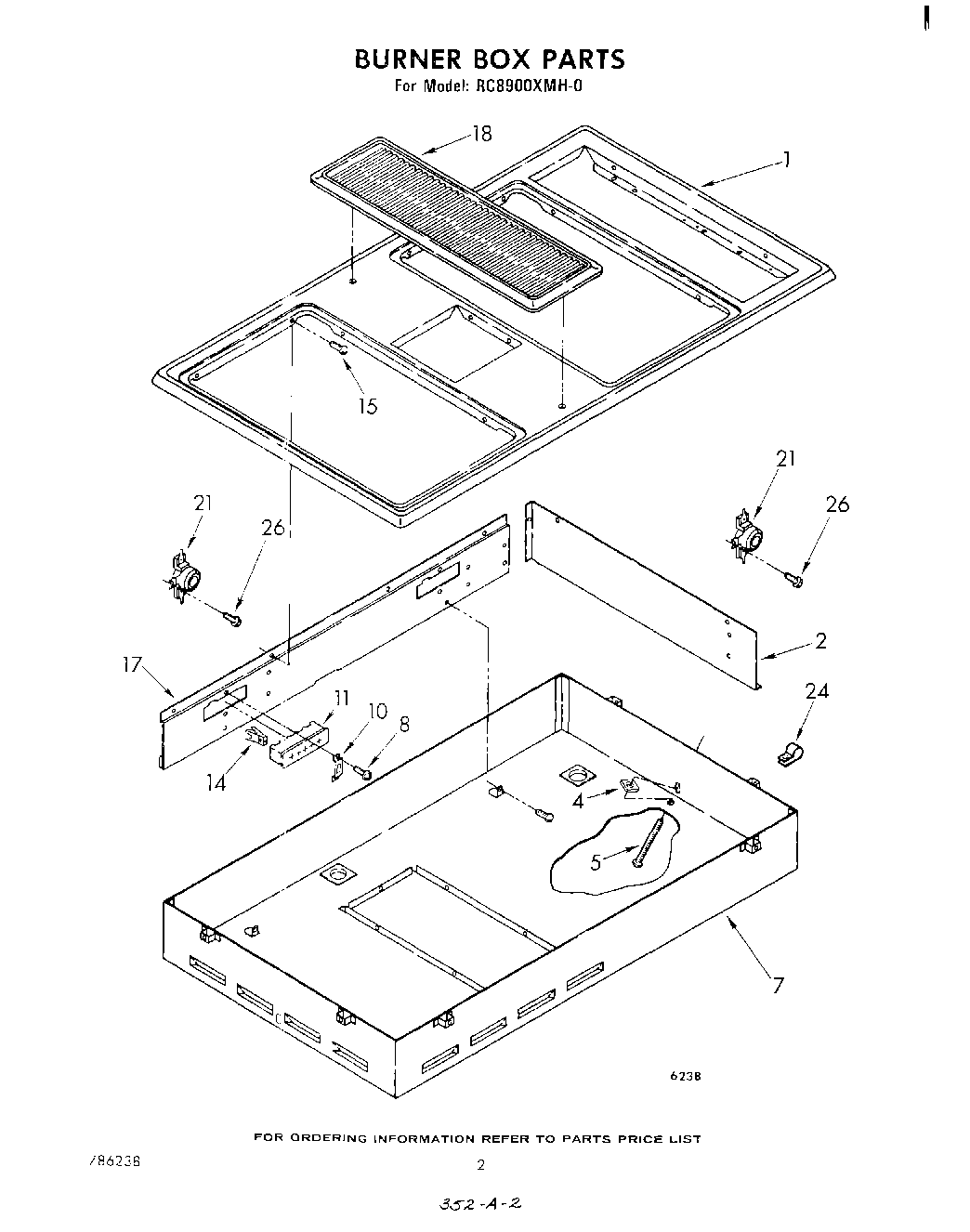

RC8900XMH0 02 – BURNER BOX, LITERATURE AND OPTIONAL

Products

PositionProduct
Vent Installation Instructions
List, Repair Parts
Guide, Use & Care
Instructions, Installation
1Top, Main
2Sheild, Switch
4Nut, 1/4-20 (2)
5Screw, Hold Down (2)
7Box, Burner
8WP313808 Whirlpool Screw
10Bracket, Plug Block Mounting
11Plug Block
14Contact, Element (10)
15WP965173 Whirlpool Dishwasher Screw
17Baffle, Plug Block
18Cover, Vent
21Switch, Fan
24Clip, Wire
26Wire (14 Ga. 150 c Brown)
26Wire (14 Ga. 150 c Blue)
26242831 Whirlpool Oven Wire
26W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
26Wire, 25“ Roll (White 14 GA.)
26Wire, 25` Roll (Red 14 Ga.)
26Wire, 25` Roll (Black 14 Ga.)
26WP90028 Whirlpool Terminal
26Wire (14 Ga. 150 c Green)
26WPL 261961
261
26Wire (14 Ga. 200 c Brown)
2618 Ga. 80~c Rating (Red)
26Wire (12 Ga. 150 c Black)
26Wire (14 Ga. 150 c Yellow)
26Wire (14 Ga. 150 c Orange)
26Screw, 6-32 X 3/16 (2)
26WP285432 Whirlpool Terminal
