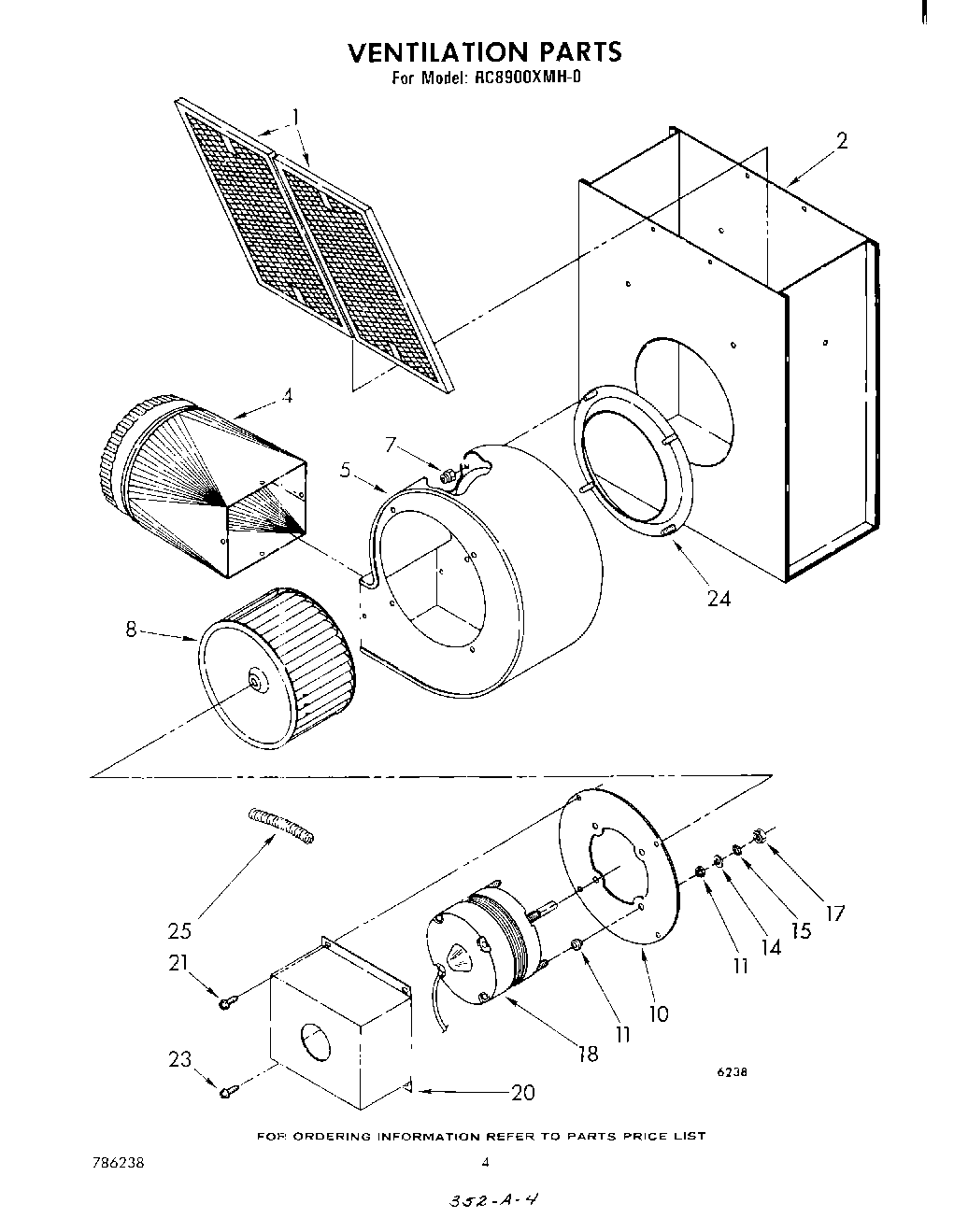

RC8900XMH0 03 – VENTILATION

Products

Position	Product
1	786235 Whirlpool Oven Grease Filter Pack of 2
2	Plenum
4	Transition 6“
5	Scroll, Fan
7	Nut, Locking (4)
8	Wheel, Fan
10	Plate, Motor Mounting
11	Grommet, Motor Mounting (8)
14	WP120393 Whirlpool Washer Assembly
15	Washer (4)
17	Nut, Hex (4)
18	Motor, 60 Hz.
20	Cover, Motor
21	WP90767 Whirlpool Screw
23	Screw, 8-18 X 1/4 (2)
24	Orifice
25	Conduit
