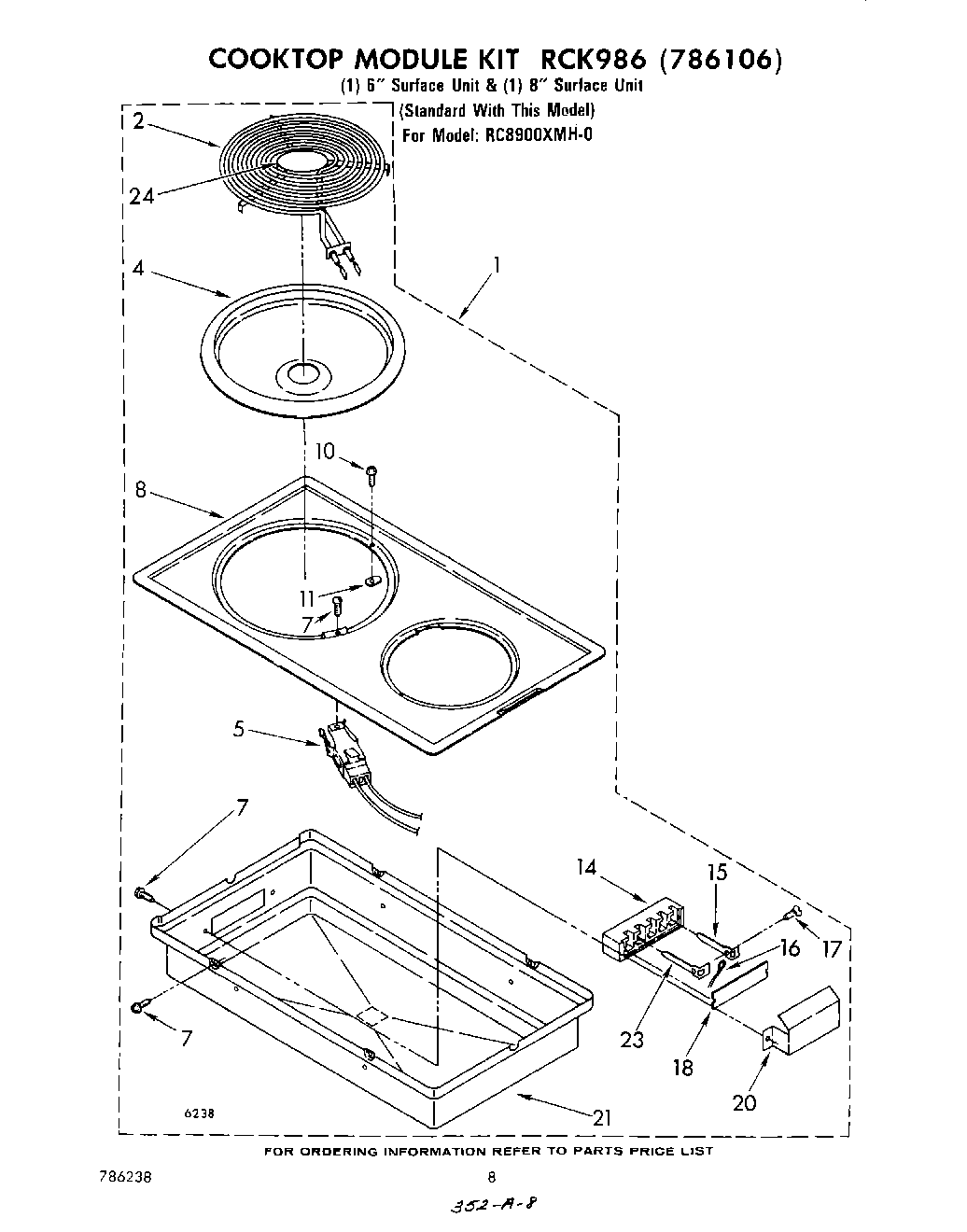

RC8900XMH0 07 – COOKTOP RCK986

Products

Position	Product
1	Complete Module (Brushed Chrome)
2	WP660533 Whirlpool Oven 8" Surface Element
2	WP660532 Whirlpool Oven Surface Element
4	DRIP BOWL 8" W/HOLE CHROME
4	WPW10196406 Whirlpool 6" Chrome Drip Bowl
5	BURNER RECEPTACLE KIT
7	WP313808 Whirlpool Screw
8	Top, Module
10	Screw
11	Nut
14	Plug Block, Module
15	Spade, Ground
16	Wire, Ground (Green)
17	Screw (4) No.8-32 x 3/18
18	Insulator
20	Bracket, Plug Block Mounting
21	Pan, Module Element
23	Contact, Spade (4)
24	Medallion (4)
