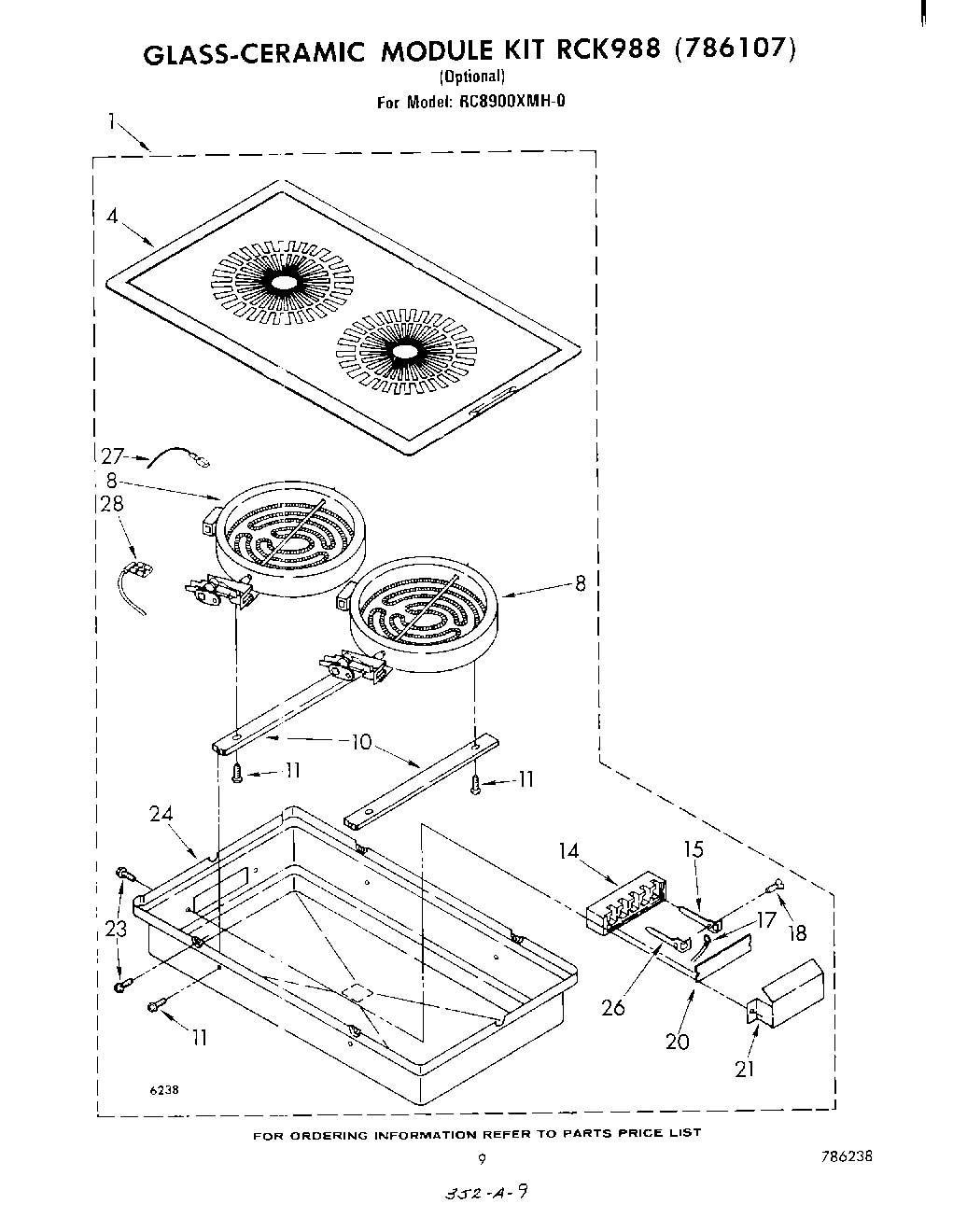

RC8900XMH0 08 – GLASS CERAMIC RCK988

Products

PositionProduct
1Smooth Top (RCK 988)
4Top Assembly
8Element
10Bracket, Mounting
14Plug Block, Module
15Spade, Ground
17Wire, Ground (Green)
18Screw (4) No.8-32 x 3/18
20Insulator
21Bracket, Plug Block Mounting
23SCREW
24Pan, Module Element
26Contact, Spade (4)
27Wire, Electrical (Contains 1 Brown & 1 Red) (2)
28Wire, Jumper (Brown) (2)
