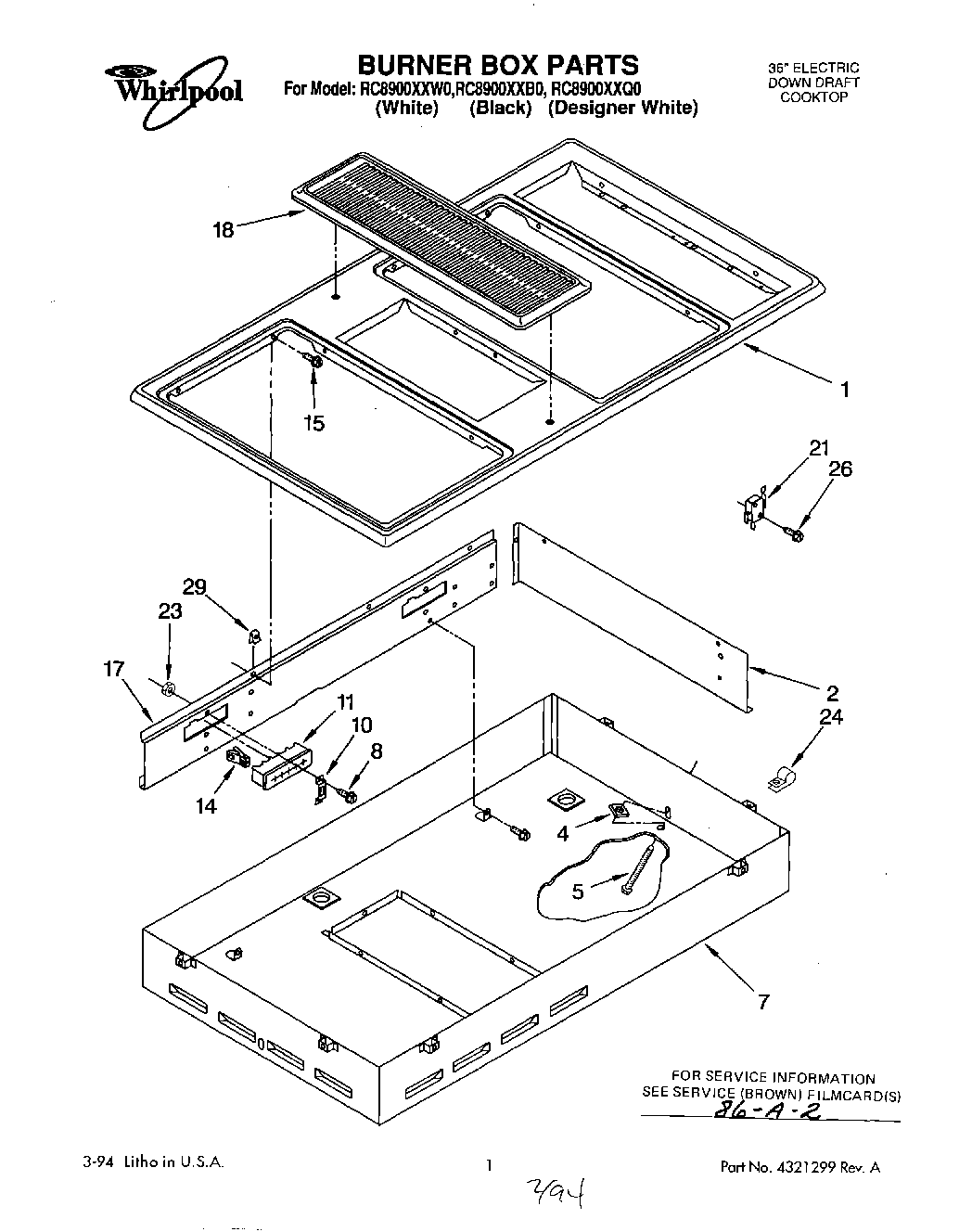

RC8900XXB0 01 – BURNER BOX, LIT/OPTIONAL

Products

Position	Product
	WPL LIT4320700
	WPL LIT4179084
1	Top, Main (White/)
1	Top, Main (Black)
2	Sheild, Switch
4	Nut, 1/4-20 (2)
5	Screw, Hold Down (2)
7	Box, Burner
8	WP313808 Whirlpool Screw
10	Bracket, Plug Block Mounting
11	Plug Block
14	Contact, Element (10)
15	WP965173 Whirlpool Dishwasher Screw
17	Baffle, Plug Block
18	Cover, Vent (White/)
18	Cover, Vent
21	Switch, Fan
23	Nut
24	Clip, Wire
26	Screw, 6-32 X 3/16 (2)
29	Module, Complete (Chrome Frame with Black Glass)
29	WP285432 Whirlpool Terminal
29	Complete Module (Black Frame with Black Glass)
29	Complete Module (Brushed Chrome)
29	Module, Complete (White)
29	Complete Module Black
29	Module, Complete (Black Frame with Black Glass)
29	Module, Complete (Black)
29	Complete Module (Chrome Frame with Black Glass)
29	Complete Module (White Frame with White Glass)
29	Module, Complete (White Frame with White Glass)
29	Rotisserie Kit (RCK 982)
29	Wire, 25` Roll (Red 14 Ga.)
29	Wire, 25“ Roll (White 14 GA.)
29	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
29	242831 Whirlpool Oven Wire
29	Wire (14 Ga. 150 c Blue)
29	Wire (14 Ga. 150 c Brown)
29	Wire (14 Ga. 150 c Green)
29	Wire (14 Ga. 150 c Orange)
29	Wire (14 Ga. 150 c Yellow)
29	Wire (12 Ga. 150 c Black)
29	18 Ga. 80~c Rating (Red)
29	Wire (14 Ga. 200 c Brown)
29	1
29	WP90028 Whirlpool Terminal
29	WPL 261961
29	U-Clip, Top Mounting (12)
29	Griddle
29	Wire, 25` Roll (Black 14 Ga.)
