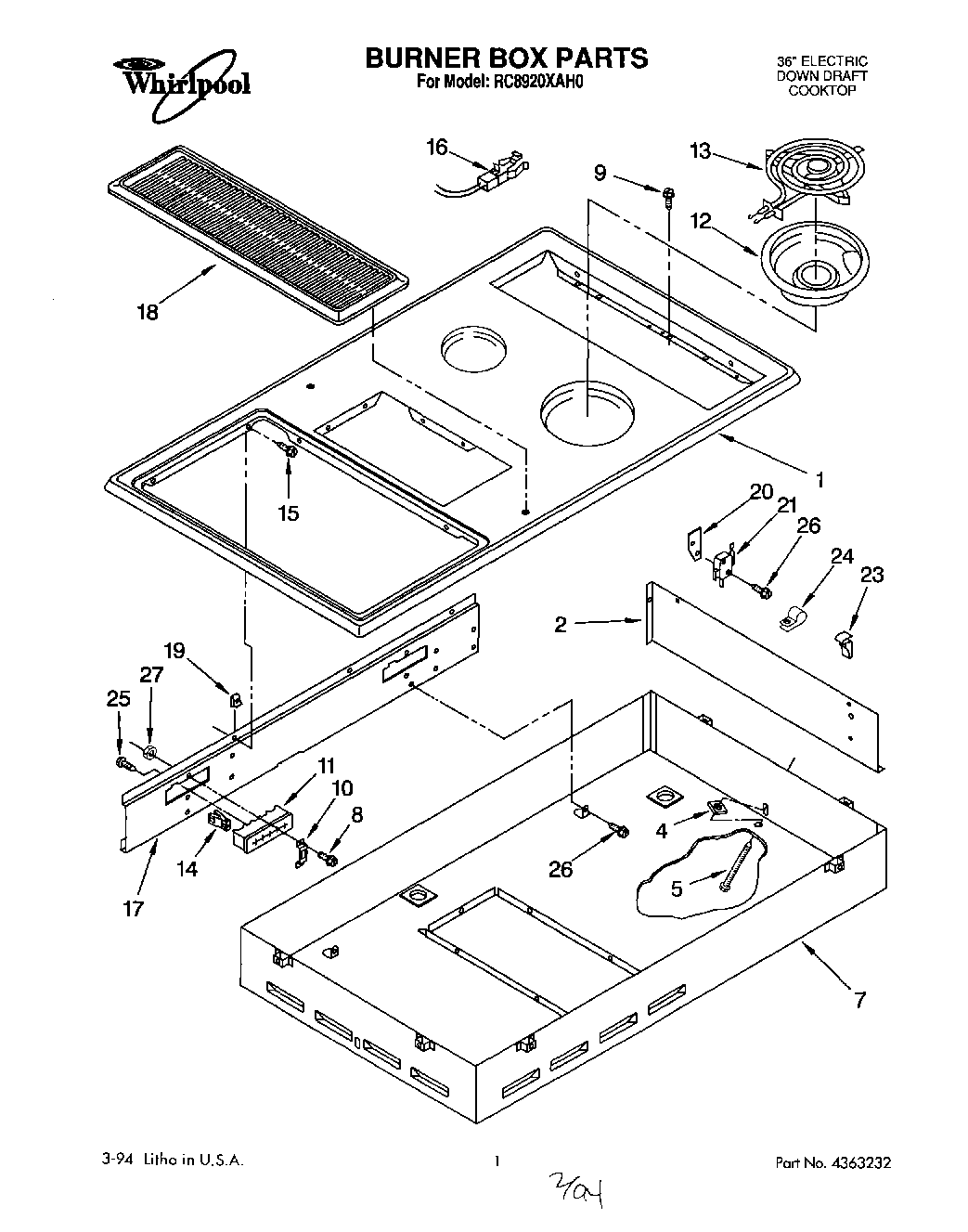

RC8920XAH0 01 – BURNER BOX, LIT/OPTIONAL

Products

Position	Product
	WPL LIT4363129
	WPL LIT4363133
1	Top, Main
2	Sheild, Switch
4	Nut, 1/4-20 (2)
5	Screw, Hold Down (2)
7	Box, Burner
8	WP313808 Whirlpool Screw
9	WP308685 Whirlpool Microwave Screw
10	Bracket, Plug Block Mounting
11	Plug Block
12	Drip Bowl, 6“
12	DRIP BOWL 8" W/HOLE CHROME
13	WP660532 Whirlpool Oven Surface Element
13	WP660533 Whirlpool Oven 8" Surface Element
14	Contact, Element (10)
15	WP965173 Whirlpool Dishwasher Screw
16	BURNER RECEPTACLE KIT
17	Liner, Oven Top
18	Cover, Vent
19	U-Clip, Top Mounting (12)
20	Insulator, Switch
21	Switch, Fan
23	Clip, Cable ESM
24	Clip, Wire
25	Screw (4) No.8-32 x 3/18
26	WP489128 Whirlpool Refrigerator Screw
27	Rotisserie Kit (RCK 982)
27	Grille Kit
27	Griddle
27	Module, Complete (Chrome Frame with Black Glass)
27	Complete Module (Chrome Frame with Black Glass)
27	Complete Module (Brushed Chrome)
27	Wire (14 Ga. 200 c Brown)
27	Wire, 25` Roll (Red 14 Ga.)
27	Nut
27	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
27	242831 Whirlpool Oven Wire
27	Wire (14 Ga. 150 c Blue)
27	Wire (14 Ga. 150 c Brown)
27	Wire (14 Ga. 150 c Green)
27	Wire (14 Ga. 150 c Orange)
27	Wire (14 Ga. 150 c Yellow)
27	Wire (12 Ga. 150 c Black)
27	18 Ga. 80~c Rating (Red)
27	1
27	WP90028 Whirlpool Terminal
27	Wire, 25“ Roll (White 14 GA.)
27	WPL 261961
27	WP285432 Whirlpool Terminal
27	Wire, 25` Roll (Black 14 Ga.)
