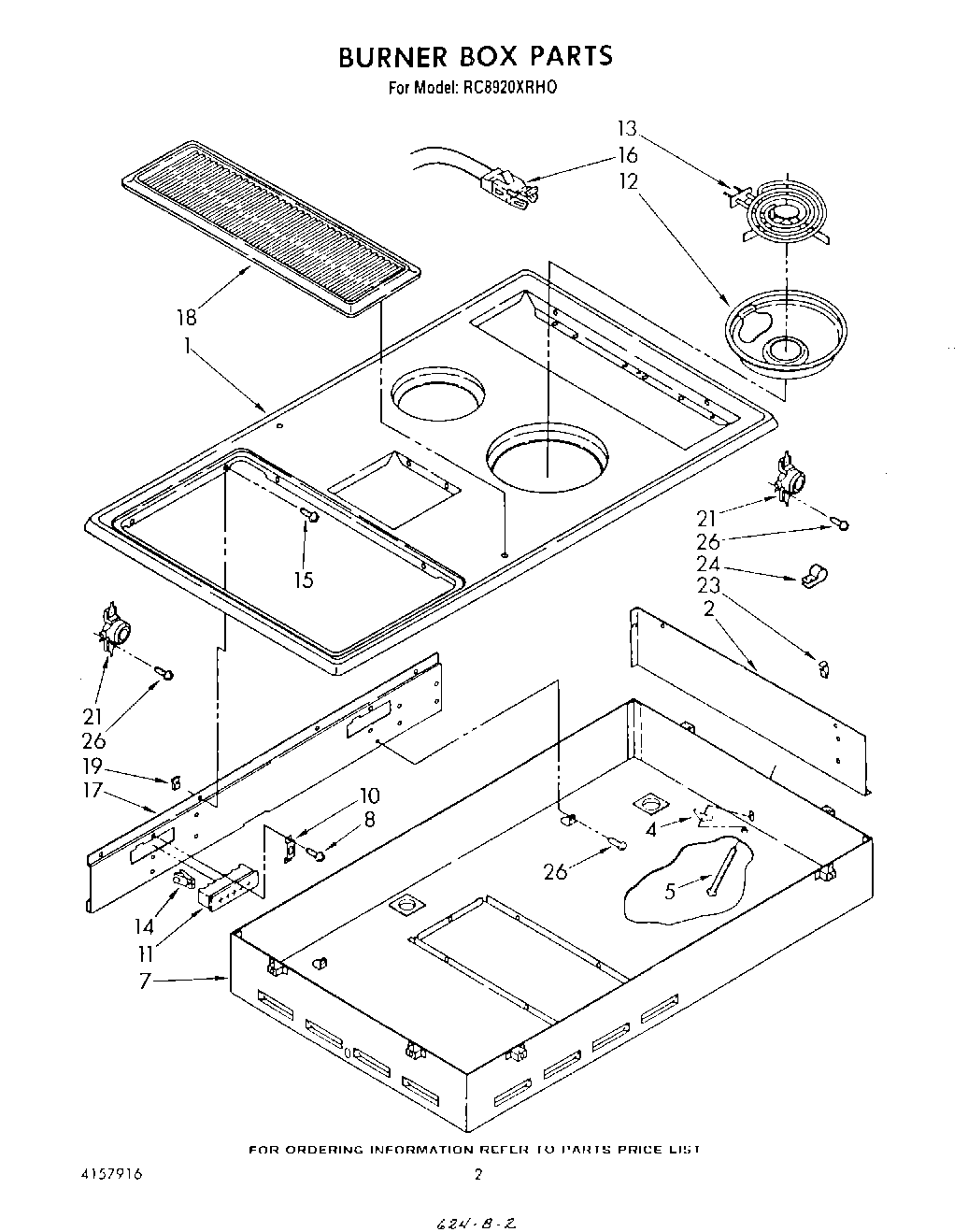

RC8920XRH0 02 – BURNER BOX , LITERATURE AND OPTIONAL

Products

PositionProduct
Li
Vent Installation Instructions
WPL LIT786696
Instructions, Installation
1Top, Main
2Sheild, Switch
4Nut, 1/4-20 (2)
5Screw, Hold Down (2)
7Box, Burner
8WP313808 Whirlpool Screw
10Bracket, Plug Block Mounting
11Plug Block
12Drip Bowl, 6“
12DRIP BOWL 8" W/HOLE CHROME
13WP660533 Whirlpool Oven 8" Surface Element
13WP660532 Whirlpool Oven Surface Element
14Contact, Element (10)
15WP965173 Whirlpool Dishwasher Screw
16BURNER RECEPTACLE KIT
17Liner, Oven Top
18Cover, Vent
19U-Clip, Top Mounting (12)
21Switch, Fan
23Clip, Wire
24Clip, Wire
26Smooth Top (RCK 988)
26Kit, Grille Module (Complete)
26Rotisserie Kit (RCK 982)
26Complete Module (Brushed Chrome)
26Complete Module (Chrome Frame with Black Glass)
26Screw, 6-32 X 3/16 (2)
26Griddle
26WP285432 Whirlpool Terminal
26Wire, 25` Roll (Red 14 Ga.)
26Wire, 25“ Roll (White 14 GA.)
26242831 Whirlpool Oven Wire
26Wire (14 Ga. 150 c Blue)
26Wire (14 Ga. 150 c Brown)
26Wire (14 Ga. 150 c Green)
26Wire (14 Ga. 150 c Orange)
26Wire (14 Ga. 150 c Yellow)
26Wire (12 Ga. 150 c Black)
2618 Ga. 80~c Rating (Red)
26Wire (14 Ga. 200 c Brown)
261
26WP90028 Whirlpool Terminal
26WPL 261961
26W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
26Wire, 25` Roll (Black 14 Ga.)
