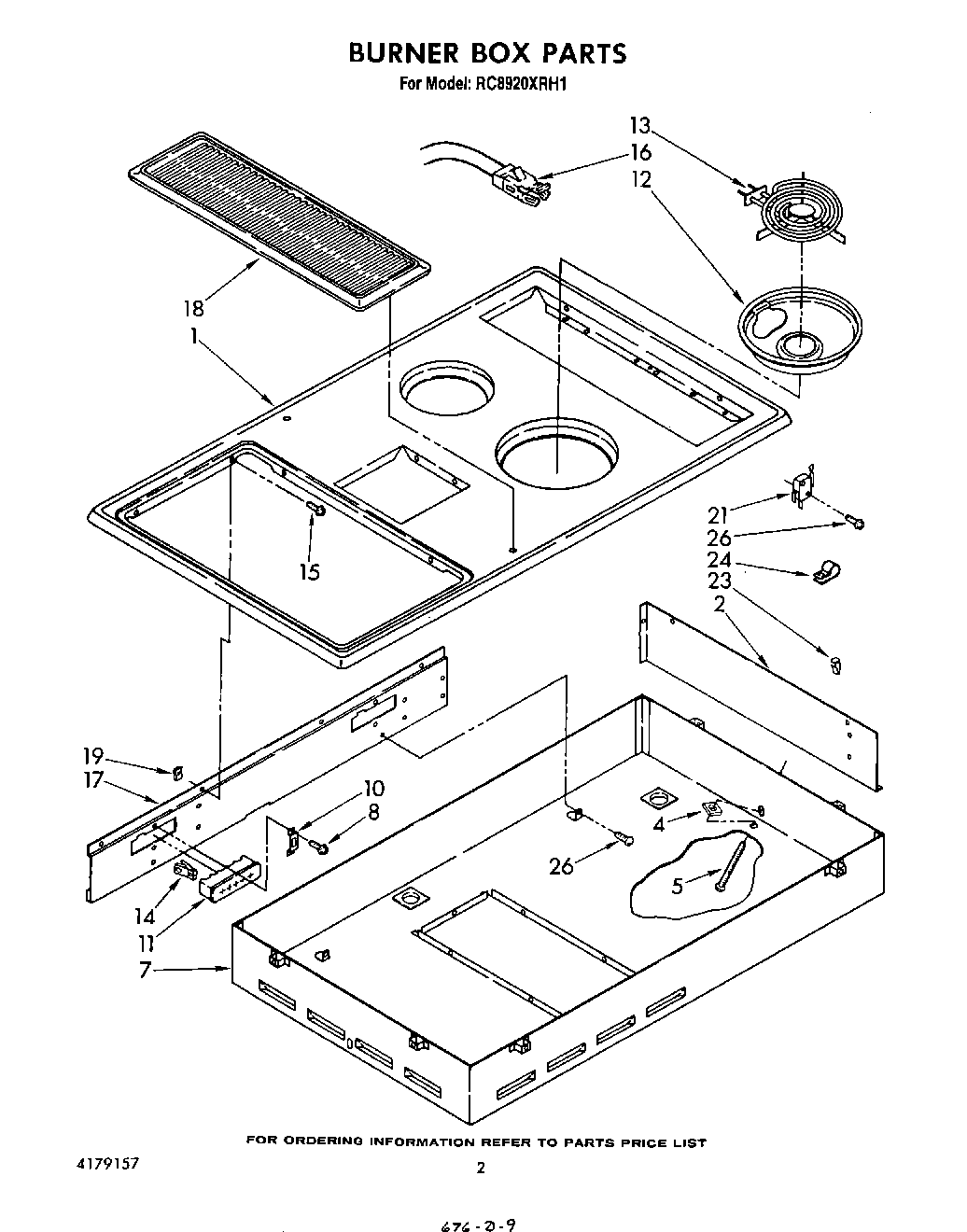

RC8920XRH1 02 – BURNER BOX , LITERATURE AND OPTIONAL

Products

Position	Product
	WPL LIT4179084
	Us
	WPL LIT4179157
	Vent Installation Instructions
1	Top, Main
2	Sheild, Switch
4	Nut, 1/4-20 (2)
5	Screw, Hold Down (2)
7	Box, Burner
8	WP313808 Whirlpool Screw
10	Bracket, Plug Block Mounting
11	Plug Block
12	Drip Bowl, 6“
12	DRIP BOWL 8" W/HOLE CHROME
13	WP660533 Whirlpool Oven 8" Surface Element
13	WP660532 Whirlpool Oven Surface Element
14	Contact, Element (10)
15	WP965173 Whirlpool Dishwasher Screw
16	BURNER RECEPTACLE KIT
17	Liner, Oven Top
18	Cover, Vent
19	U-Clip, Top Mounting (12)
21	Switch, Fan
23	Clip, Wire
24	Clip, Wire
26	Wire, 25` Roll (Red 14 Ga.)
26	Smooth Top (RCK 988)
26	Wire, 25“ Roll (White 14 GA.)
26	Complete Module (Chrome Frame with Black Glass)
26	Complete Module (Brushed Chrome)
26	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
26	Kit, Grille Module (Complete)
26	Wire, 25` Roll (Black 14 Ga.)
26	Rotisserie Kit (RCK 982)
26	242831 Whirlpool Oven Wire
26	Wire (14 Ga. 200 c Brown)
26	18 Ga. 80~c Rating (Red)
26	Wire (12 Ga. 150 c Black)
26	WP90028 Whirlpool Terminal
26	Wire (14 Ga. 150 c Yellow)
26	WPL 261961
26	Wire (14 Ga. 150 c Orange)
26	Wire (14 Ga. 150 c Green)
26	Wire (14 Ga. 150 c Brown)
26	Wire (14 Ga. 150 c Blue)
26	WP285432 Whirlpool Terminal
26	Griddle
26	Screw, 6-32 X 3/16 (2)
26	1
