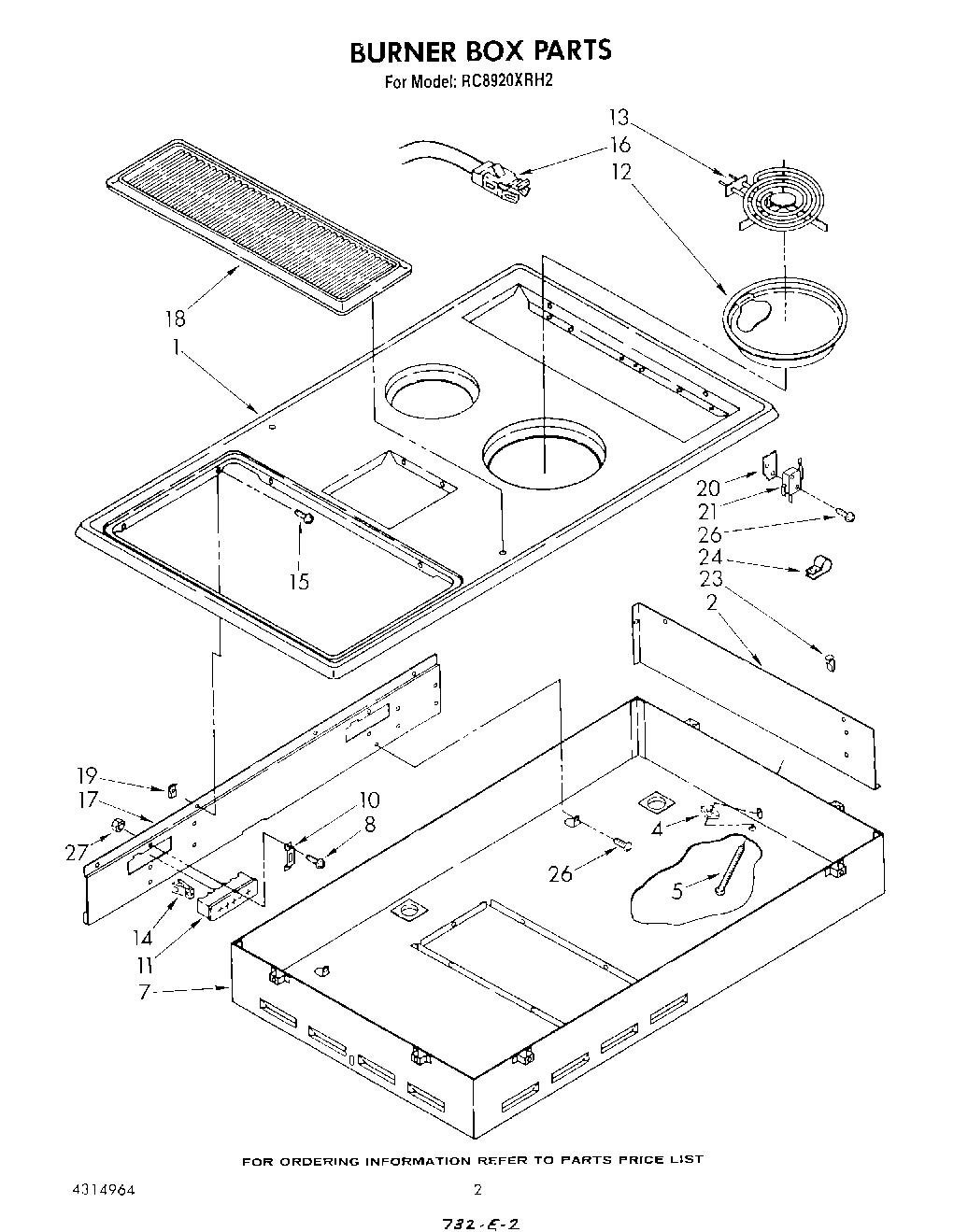

RC8920XRH2 02 – BURNER BOX , LITERATURE AND OPTIONAL

Products

PositionProduct
WPL LIT4314964
Vent Installation Instructions
WPL LIT4179084
Us
1Top, Main
2Sheild, Switch
4Nut, 1/4-20 (2)
5Screw, Hold Down (2)
7Box, Burner
8WP313808 Whirlpool Screw
10Bracket, Plug Block Mounting
11Plug Block
12Drip Bowl, 6“
12DRIP BOWL 8" W/HOLE CHROME
13WP660532 Whirlpool Oven Surface Element
13WP660533 Whirlpool Oven 8" Surface Element
14Contact, Element (10)
15WP488729 Whirlpool Refrigerator Door Screw
16BURNER RECEPTACLE KIT
17Liner, Oven Top
18Cover, Vent
19U-Clip, Top Mounting (12)
20Insulator, Switch
21Switch, Fan
23Clip, Wire
24Clip, Wire
26WP489128 Whirlpool Refrigerator Screw
27Grille Kit
27242831 Whirlpool Oven Wire
27W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
27Wire, 25` Roll (Black 14 Ga.)
27Complete Module (Chrome Frame with Black Glass)
27Complete Module (Brushed Chrome)
27Wire, 25“ Roll (White 14 GA.)
27Wire, 25` Roll (Red 14 Ga.)
27Nut
27Wire (14 Ga. 150 c Blue)
27Smooth Top (RCK 988)
27Rotisserie Kit (RCK 982)
27WP90028 Whirlpool Terminal
2718 Ga. 80~c Rating (Red)
27WPL 261961
27WP285432 Whirlpool Terminal
27Wire (12 Ga. 150 c Black)
27Wire (14 Ga. 150 c Yellow)
271
27Wire (14 Ga. 150 c Orange)
27Wire (14 Ga. 150 c Green)
27Griddle
27Wire (14 Ga. 150 c Brown)
27Wire (14 Ga. 200 c Brown)
