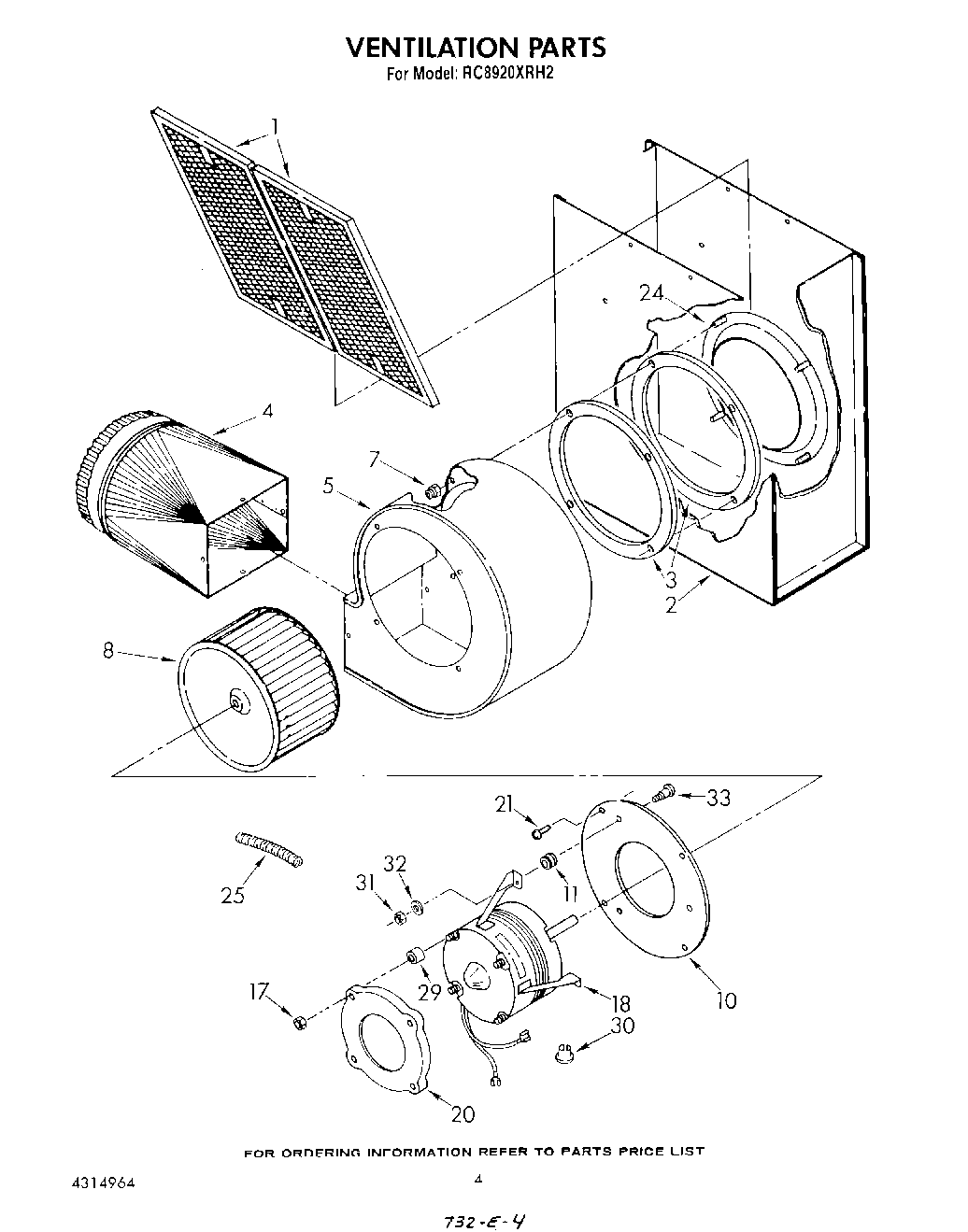

RC8920XRH2 03 – VENTILATIONadmin2025-04-26T08:40:47+00:00RC8920XRH2 03 – VENTILATION
Products
| Position | Product |
|---|
| 1 | 786235 Whirlpool Oven Grease Filter Pack of 2 |
| 2 | Plenum |
| 3 | Gasket, Motor Mounting |
| 4 | Transition 6`` |
| 5 | Scroll, Fan |
| 7 | Nut, Locking (4) |
| 8 | Wheel, Fan |
| 10 | Plate, Motor Mounting |
| 11 | Grommet, Motor Mounting (8) |
| 17 | WP488826 Whirlpool Nut |
| 18 | Motor, 60 Hz. |
| 20 | Cover, Motor |
| 21 | WP90767 Whirlpool Screw |
| 24 | Orifice |
| 25 | Conduit |
| 29 | Spacer, Motor Cover (4) |
| 30 | Bushing |
| 31 | Screw, 8 X 3/8 (14) |
| 32 | Washer (3) |
| 33 | Bolt, 10-24 X 3/4 (3) |
