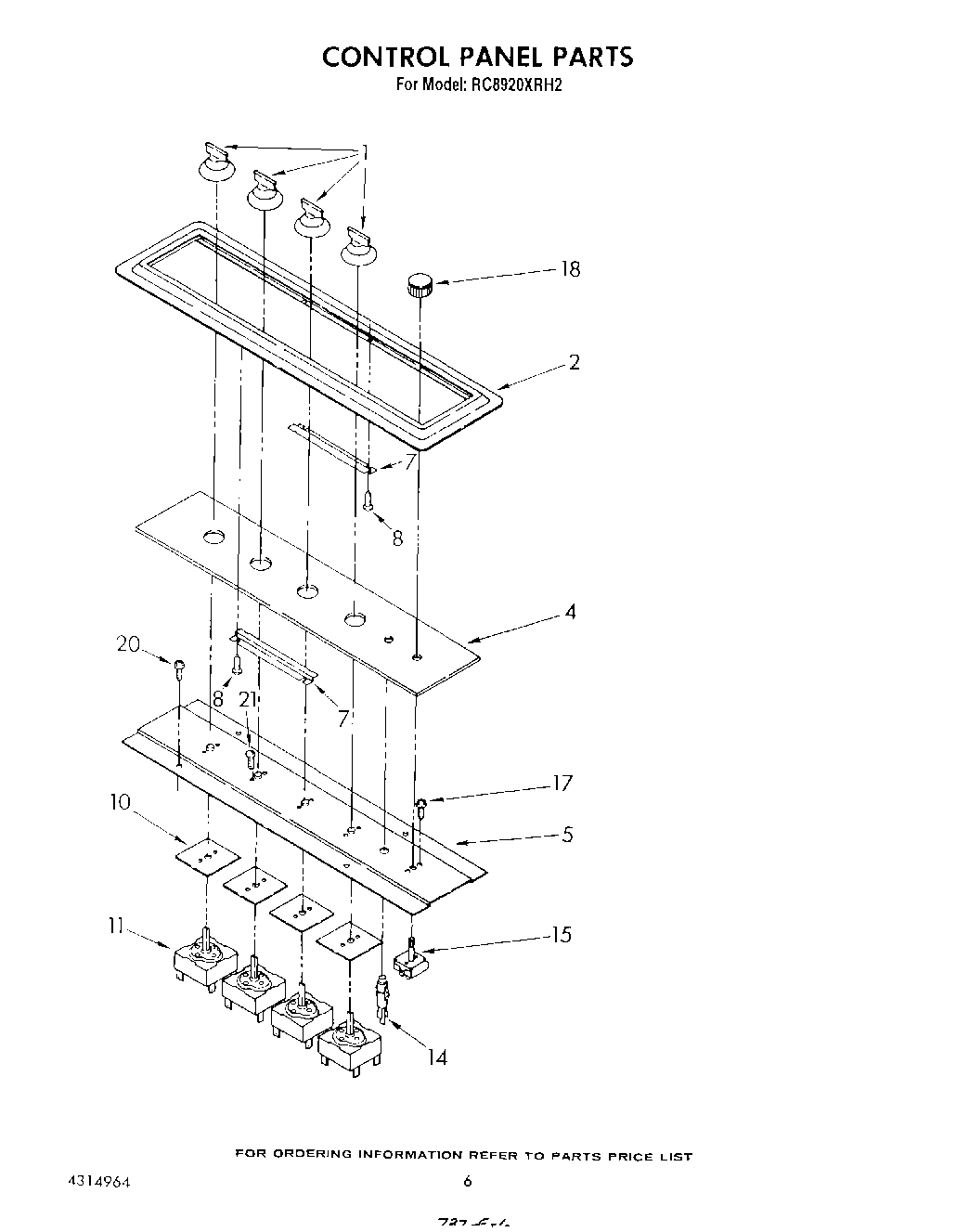

RC8920XRH2 05 – CONTROL PANELadmin2025-04-26T08:40:36+00:00RC8920XRH2 05 – CONTROL PANEL
Products
| Position | Product |
|---|
| 1 | Knob (4) |
| 2 | Trim, Control Panel |
| 4 | Glass, Control Panel |
| 5 | Bracket, Switch Mounting |
| 7 | Retainer, Glass (2) |
| 8 | Screw, 4-40 X 1/4 (2) |
| 10 | Gasket, Switch (4) |
| 11 | W10900107 Whirlpool Oven Surface Element Switch |
| 14 | Light, Indicator |
| 15 | Switch, Fan (Manual) |
| 17 | Screw, 6-32 X 3/16 (2) |
| 18 | Knob, Fan |
| 20 | WP90767 Whirlpool Screw |
| 21 | Screw (4) No.8-32 x 3/18 |
