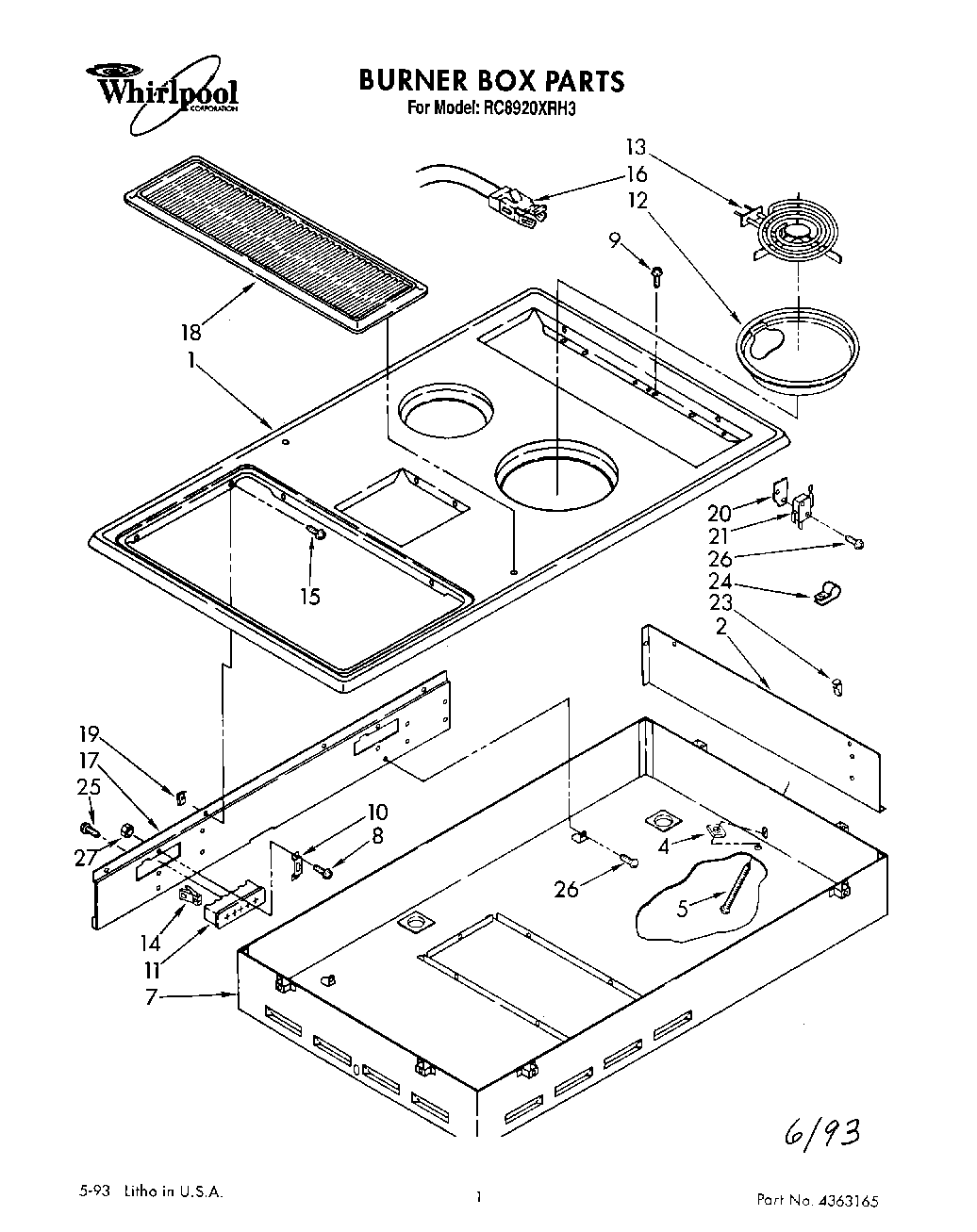

RC8920XRH3 01 – BURNER BOX, LIT/OPTIONALadmin2025-04-26T08:40:38+00:00RC8920XRH3 01 – BURNER BOX, LIT/OPTIONAL
Products
| Position | Product |
|---|
| WPL LIT4363165 |
| Vent Installation Instructions |
| WPL LIT4179084 |
| Us |
| 1 | Top, Main |
| 2 | Sheild, Switch |
| 4 | Nut, 1/4-20 (2) |
| 5 | Screw, Hold Down (2) |
| 7 | Box, Burner |
| 8 | WP313808 Whirlpool Screw |
| 9 | WP308685 Whirlpool Microwave Screw |
| 10 | Bracket, Plug Block Mounting |
| 11 | Plug Block |
| 12 | Drip Bowl, 6`` |
| 12 | DRIP BOWL 8" W/HOLE CHROME |
| 13 | WP660532 Whirlpool Oven Surface Element |
| 13 | WP660533 Whirlpool Oven 8" Surface Element |
| 14 | Contact, Element (10) |
| 15 | WP965173 Whirlpool Dishwasher Screw |
| 16 | BURNER RECEPTACLE KIT |
| 17 | Liner, Oven Top |
| 18 | Cover, Vent |
| 19 | U-Clip, Top Mounting (12) |
| 20 | Insulator, Switch |
| 21 | Switch, Fan |
| 23 | Clip, Cable ESM |
| 24 | Clip, Wire |
| 25 | Screw (4) No.8-32 x 3/18 |
| 26 | WP489128 Whirlpool Refrigerator Screw |
| 27 | W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz) |
| 27 | Module, Complete (Chrome Frame with Black Glass) |
| 27 | Complete Module (Chrome Frame with Black Glass) |
| 27 | Complete Module (Brushed Chrome) |
| 27 | Wire, 25`` Roll (White 14 GA.) |
| 27 | Nut |
| 27 | Grille Kit |
| 27 | Wire, 25` Roll (Red 14 Ga.) |
| 27 | Wire, 25` Roll (Black 14 Ga.) |
| 27 | 242831 Whirlpool Oven Wire |
| 27 | Wire (14 Ga. 150 c Blue) |
| 27 | Rotisserie Kit (RCK 982) |
| 27 | WP90028 Whirlpool Terminal |
| 27 | 18 Ga. 80~c Rating (Red) |
| 27 | WPL 261961 |
| 27 | WP285432 Whirlpool Terminal |
| 27 | Wire (12 Ga. 150 c Black) |
| 27 | Wire (14 Ga. 150 c Yellow) |
| 27 | 1 |
| 27 | Wire (14 Ga. 150 c Orange) |
| 27 | Wire (14 Ga. 150 c Green) |
| 27 | Griddle |
| 27 | Wire (14 Ga. 150 c Brown) |
| 27 | Wire (14 Ga. 200 c Brown) |
