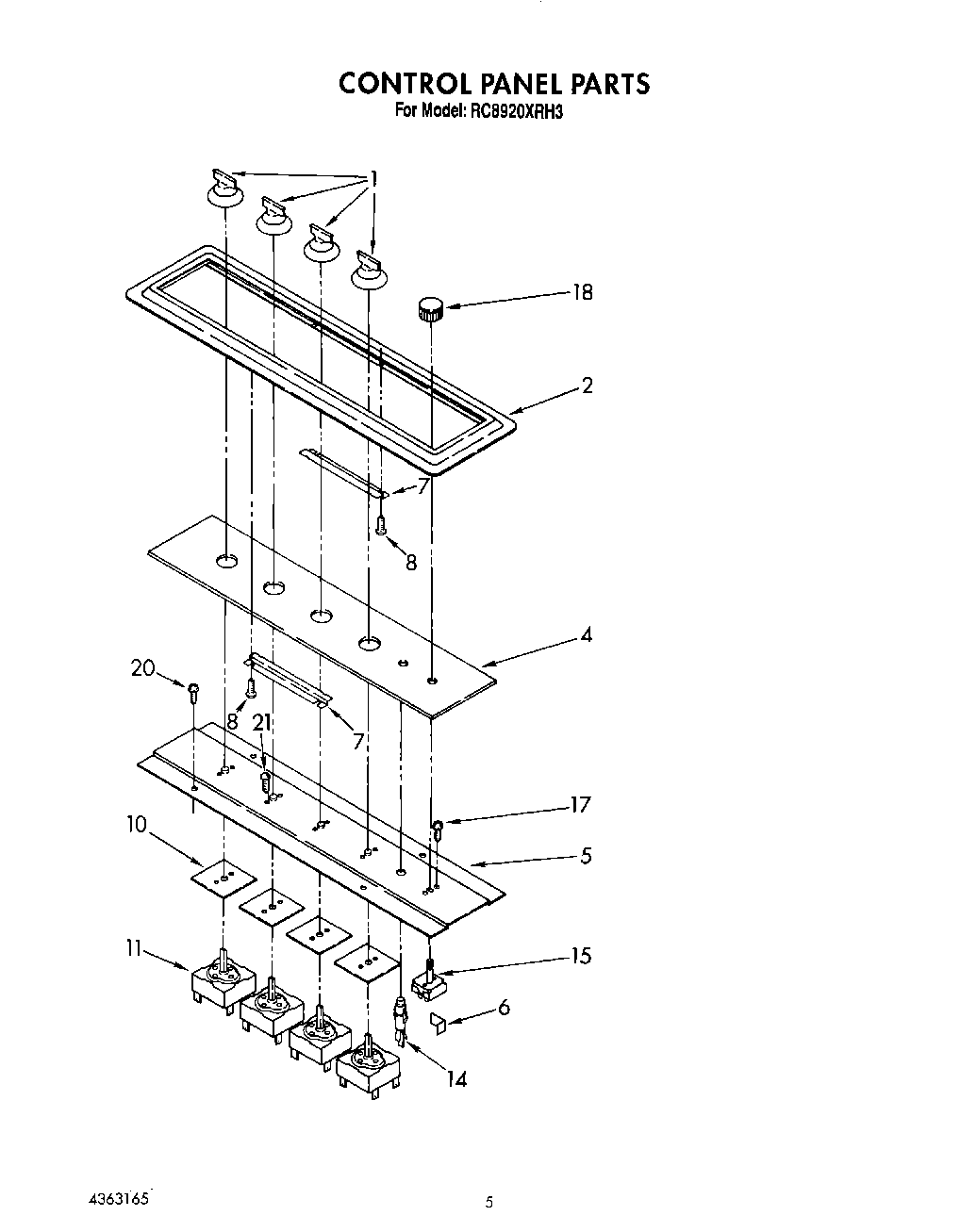

RC8920XRH3 04 – CONTROL PANEL

Products

Position	Product
1	Knob (4)
2	Trim, Control Panel
4	Glass, Control Panel
5	Bracket, Switch Mounting
7	Retainer, Glass (2)
8	Screw, 4-40 X 1/4 (2)
10	Gasket, Switch (4)
11	W10900107 Whirlpool Oven Surface Element Switch
14	Light, Indicator
15	Switch, Fan (Manual)
16	Gasket, Switch
17	Screw, 6-32 X 3/16 (2)
18	Knob, Fan
20	WP90767 Whirlpool Screw
21	Screw (4) No.8-32 x 3/18
