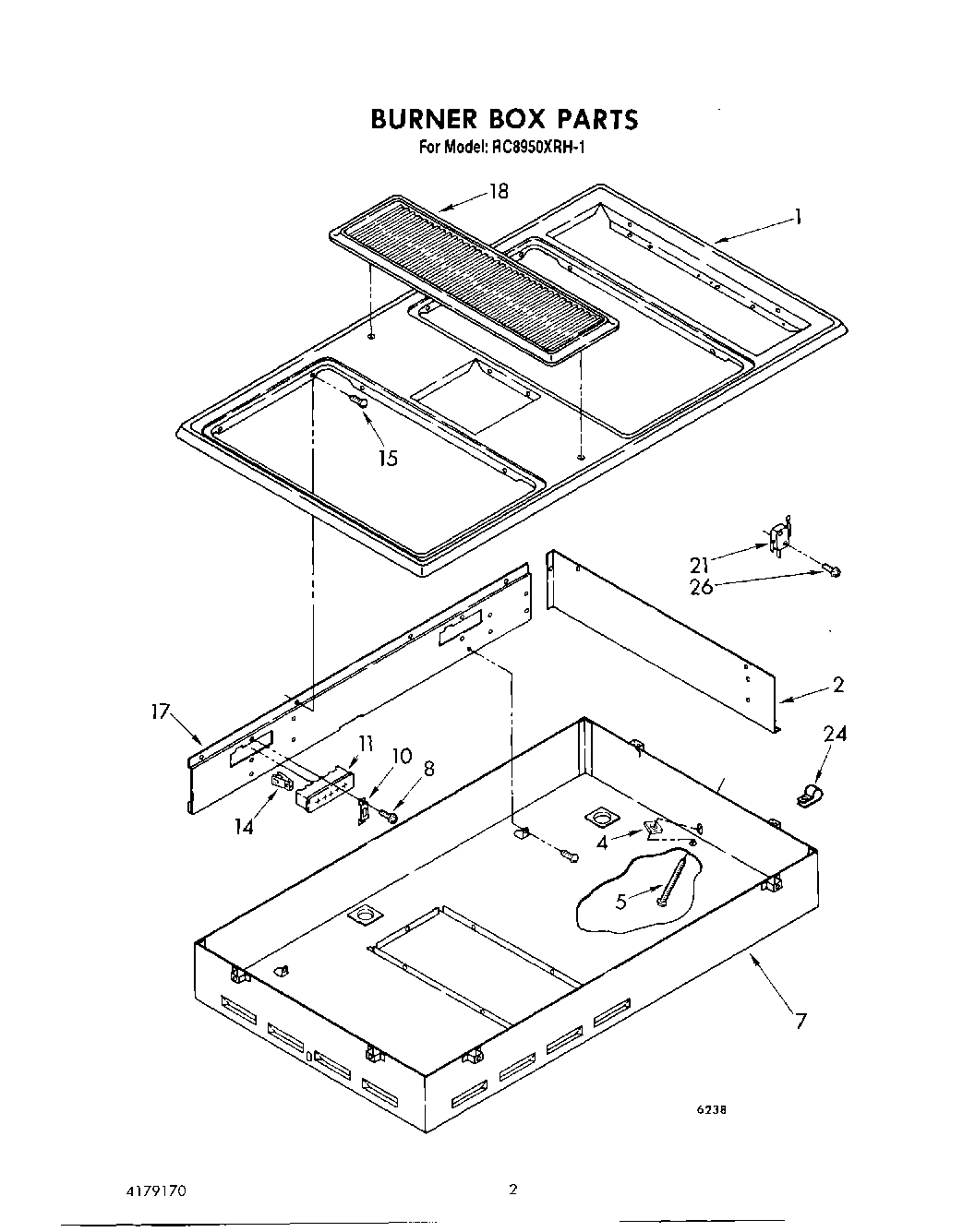

RC8950XRH1 02 – BURNER BOX , LIT/OPTIONALadmin2025-04-26T08:40:47+00:00RC8950XRH1 02 – BURNER BOX , LIT/OPTIONAL
Products
| Position | Product |
|---|
| 1 | Top, Main |
| 2 | Sheild, Switch |
| 4 | Nut, 1/4-20 (2) |
| 5 | Screw, Hold Down (2) |
| 7 | Box, Burner |
| 8 | WP313808 Whirlpool Screw |
| 10 | Bracket, Plug Block Mounting |
| 11 | Plug Block |
| 14 | Contact, Element (10) |
| 15 | WP965173 Whirlpool Dishwasher Screw |
| 17 | Baffle, Plug Block |
| 18 | Cover, Vent |
| 21 | Switch, Fan |
| 24 | Clip, Wire |
| 26 | Vent Installation Instructions |
| 26 | Rotisserie Kit (RCK 982) |
| 26 | Installation Instructions |
| 26 | Smooth Top (RCK 988) |
| 26 | Use & Care Guide |
| 26 | List, Repair Parts |
| 26 | 242831 Whirlpool Oven Wire |
| 26 | Kit, Grille Module (Complete) |
| 26 | Complete Module (Brushed Chrome) |
| 26 | Complete Module (Chrome Frame with Black Glass) |
| 26 | Screw, 6-32 X 3/16 (2) |
| 26 | Griddle |
| 26 | Wire, 25` Roll (Red 14 Ga.) |
| 26 | Wire, 25`` Roll (White 14 GA.) |
| 26 | W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz) |
| 26 | Wire (14 Ga. 150 c Blue) |
| 26 | Wire (14 Ga. 150 c Brown) |
| 26 | Wire (14 Ga. 150 c Green) |
| 26 | Wire (14 Ga. 150 c Orange) |
| 26 | Wire (14 Ga. 150 c Yellow) |
| 26 | Wire (12 Ga. 150 c Black) |
| 26 | 18 Ga. 80~c Rating (Red) |
| 26 | Wire (14 Ga. 200 c Brown) |
| 26 | 1 |
| 26 | WPL 261961 |
| 26 | WP285432 Whirlpool Terminal |
| 26 | WP90028 Whirlpool Terminal |
| 26 | Wire, 25` Roll (Black 14 Ga.) |
