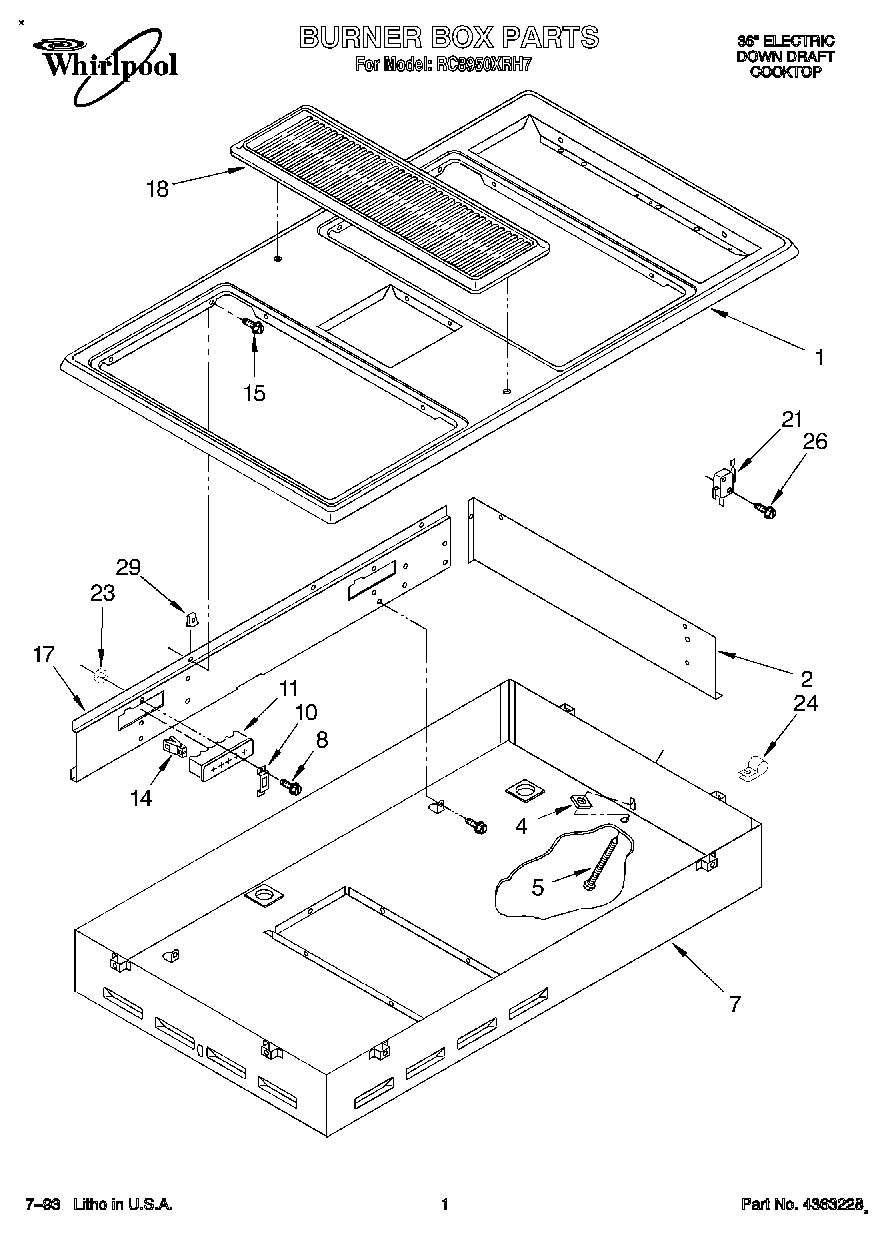

RC8950XRH7 01 – BURNER BOX, LITERATURE AND OPTIONAL

Products

PositionProduct
Instructions, Installation
Guide, Use & Care
1Top, Main
2Sheild, Switch
4Nut, 1/4-20 (2)
5Screw, Hold Down (2)
7Box, Burner
8WP313808 Whirlpool Screw
10Bracket, Plug Block Mounting
11Plug Block
14Contact, Element (10)
15WP965173 Whirlpool Dishwasher Screw
17Baffle, Plug Block
18Cover, Vent
21Switch, Fan
23Nut
24Clip, Wire
26Screw, 6-32 X 3/16 (2)
29Rotisserie Kit (RCK 982)
29Smooth Top (RCK 988)
29Complete Module (Brushed Chrome)
29Griddle
29Complete Module (Chrome Frame with Black Glass)
29Grille Kit
29U-Clip, Top Mounting (12)
29Wire, 25` Roll (Red 14 Ga.)
29Wire, 25“ Roll (White 14 GA.)
29242831 Whirlpool Oven Wire
29Wire (14 Ga. 150 c Blue)
29Wire (14 Ga. 150 c Brown)
29Wire (14 Ga. 150 c Green)
29Wire (14 Ga. 150 c Orange)
29Wire (14 Ga. 150 c Yellow)
29Wire (12 Ga. 150 c Black)
2918 Ga. 80~c Rating (Red)
29Wire (14 Ga. 200 c Brown)
291
29WP90028 Whirlpool Terminal
29WPL 261961
29WP285432 Whirlpool Terminal
29W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
29Wire, 25` Roll (Black 14 Ga.)
