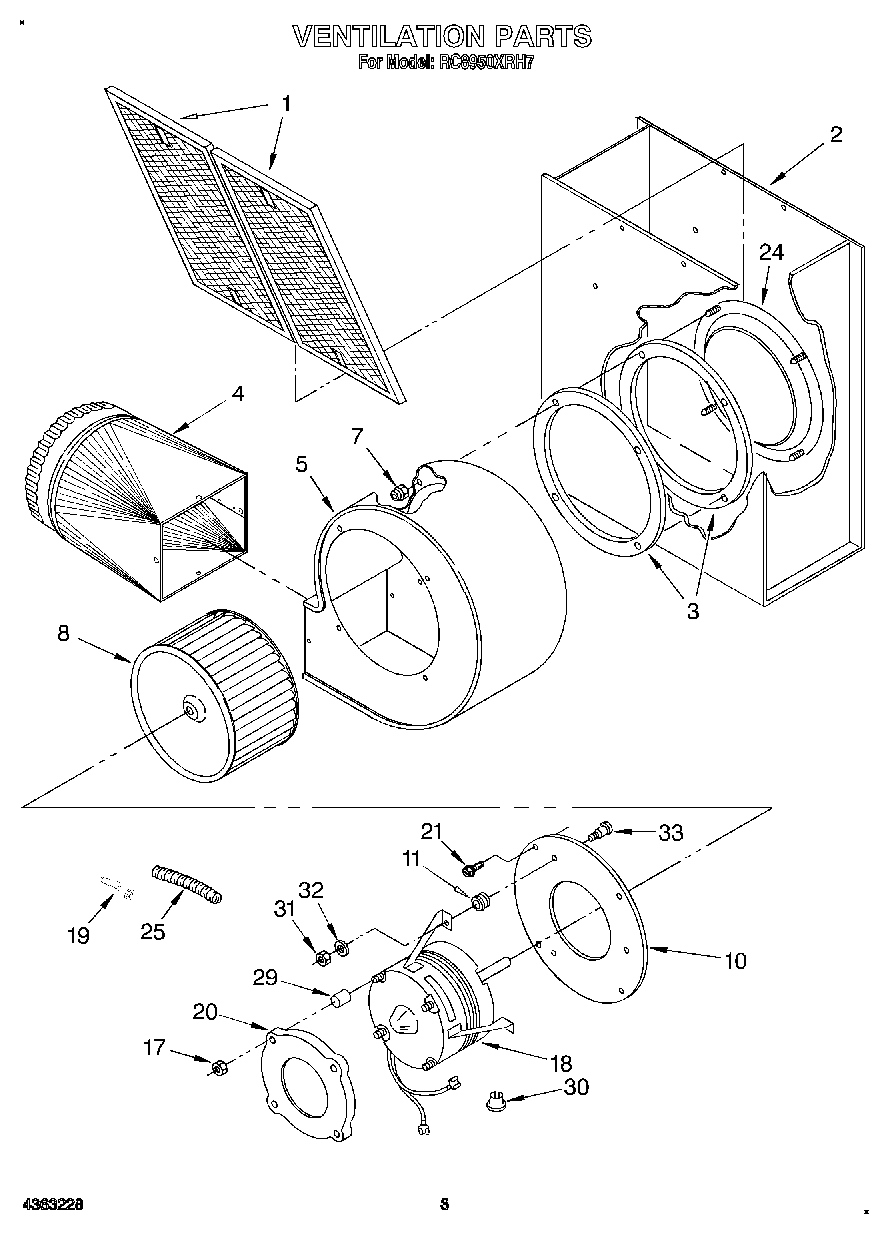

RC8950XRH7 02 – VENTILATION

Products

Position	Product
1	Filter Kit (Contains 2)
2	Plenum
3	Gasket, Motor Mounting
4	Transition 6“
5	Housing Blower
7	Nut, Locking (4)
8	Wheel, Fan
10	Plate, Motor Mounting
11	Grommet, Motor Mounting (8)
17	WP488826 Whirlpool Nut
18	Motor, 60 Hz.
19	Connector, Conduit
20	Cover, Motor
21	WP90767 Whirlpool Screw
23	Screw, 8-18 X 1/4 (2)
24	Orifice
25	Conduit
29	Spacer, Motor Cover (4)
30	Bushing
31	Screw, 8 X 3/8 (14)
32	Washer (3)
33	Bolt, 10-24 X 3/4 (3)
