RC8950XRH7 06 – OPTIONAL GLASS CERAMIC MODULE

RC8950XRH7 06 – OPTIONAL GLASS CERAMIC MODULE

Written by

in

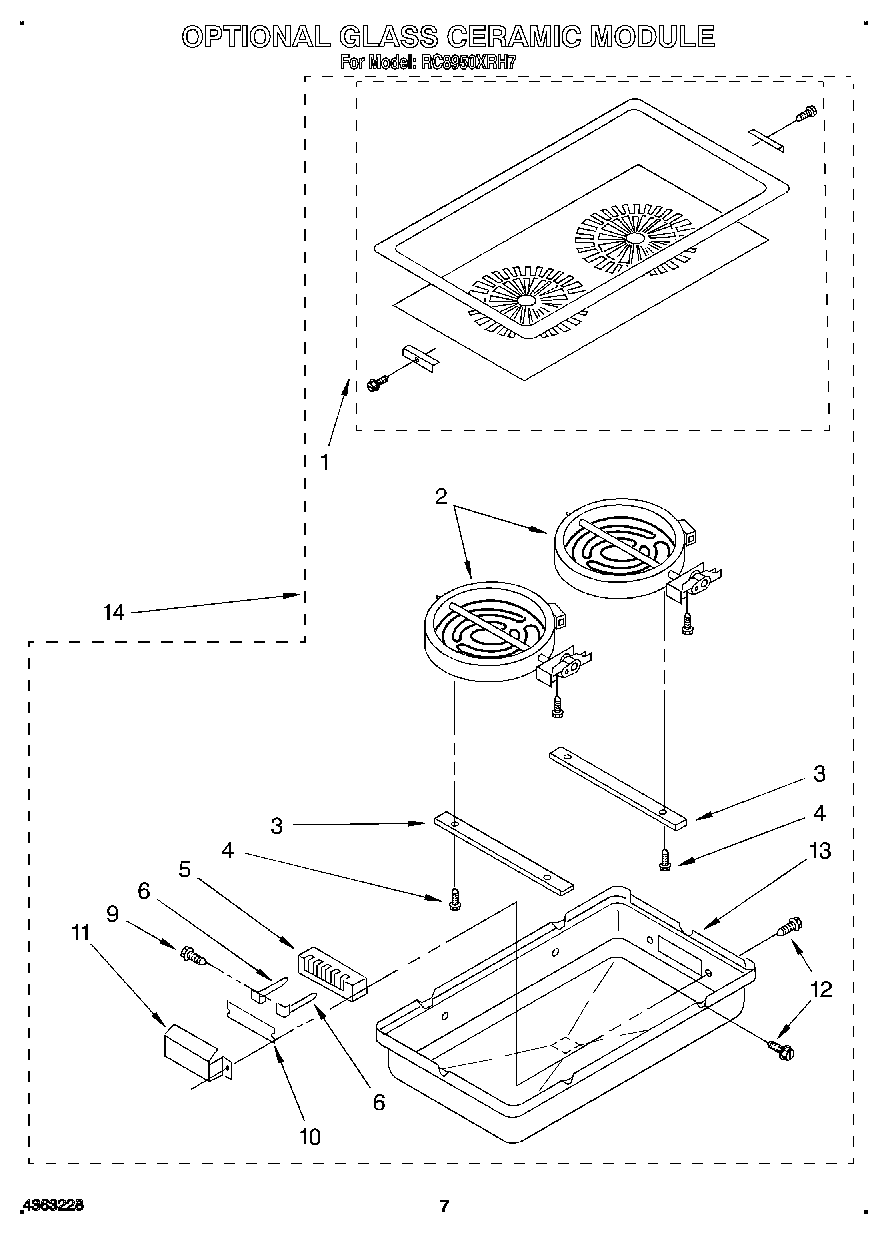

RC8950XRH7 06 – OPTIONAL GLASS CERAMIC MODULE

Products

PositionProduct
1Top Assembly (White Frame with White Glass)
1Top Assembly (Black Frame with Black Glass)
2Element, Heat (2)
3Bracket, Mounting
4WP90767 Whirlpool Screw
5Plug Block, Module
6Contact, Spade (4)
6WPL 786726
9Screw (4) No.8-32 x 3/18
10Insulator
11WPL 786707
12WP313808 Whirlpool Screw
13Module, Pan
14Smooth Top (RCK 988)
14Complete Module (Black Frame with Black Glass)
14Complete Module (White Frame with White Glass)
