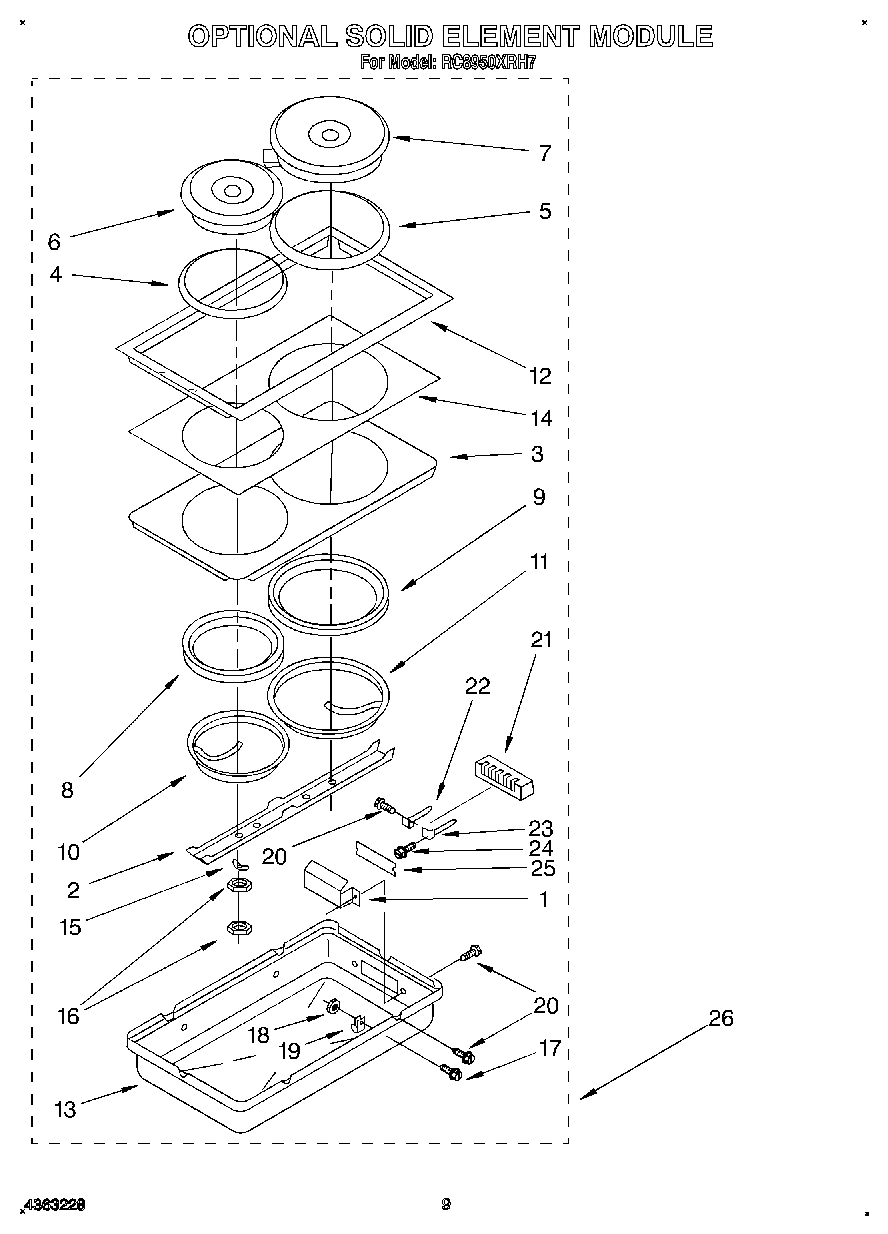

RC8950XRH7 08 – OPTIONAL SOLID ELEMENT MODULE

RC8950XRH7 08 – OPTIONAL SOLID ELEMENT MODULE

Written by

in

RC8950XRH7 08 – OPTIONAL SOLID ELEMENT MODULE

Products

PositionProduct
1WPL 786707
2WPL 786708
3WPL 786709
4AIR GRILL
5Ring, Spill (8“)
6WP3147131 Whirlpool Surface Element
7WP3147132 Whirlpool Surface Element
8Ring, Gasket (6“)
9WPL 786715
10Gasket 6“
11Gasket 8“
12Trim, Top (White)
12Trim, Top (Black)
12Trim, Top-Chrome
13Pan Module
14Glass, Top (White)
14Grate (4)
15Spring, Leaf
16Nut, Hex
17Screw, 8-32 X 3/8 (4)
18WP488130 Whirlpool Air Conditioner Nut
19Clamp
20Screw, Sq. Drive
21Plug Block, Module
22Contact, Spade (4)
23WPL 786726
24Screw (4) No.8-32 x 3/18
25Insulator
26Complete Module (Black Frame with Black Glass)
26Complete Module (White Frame with White Glass)
26Complete Module (Chrome Frame with Black Glass)
