RCA25RGBBFKB FRESH FOOD SECTION

RCA25RGBBFKB FRESH FOOD SECTION

Written by

in

RCA25RGBBFKB FRESH FOOD SECTION

Products

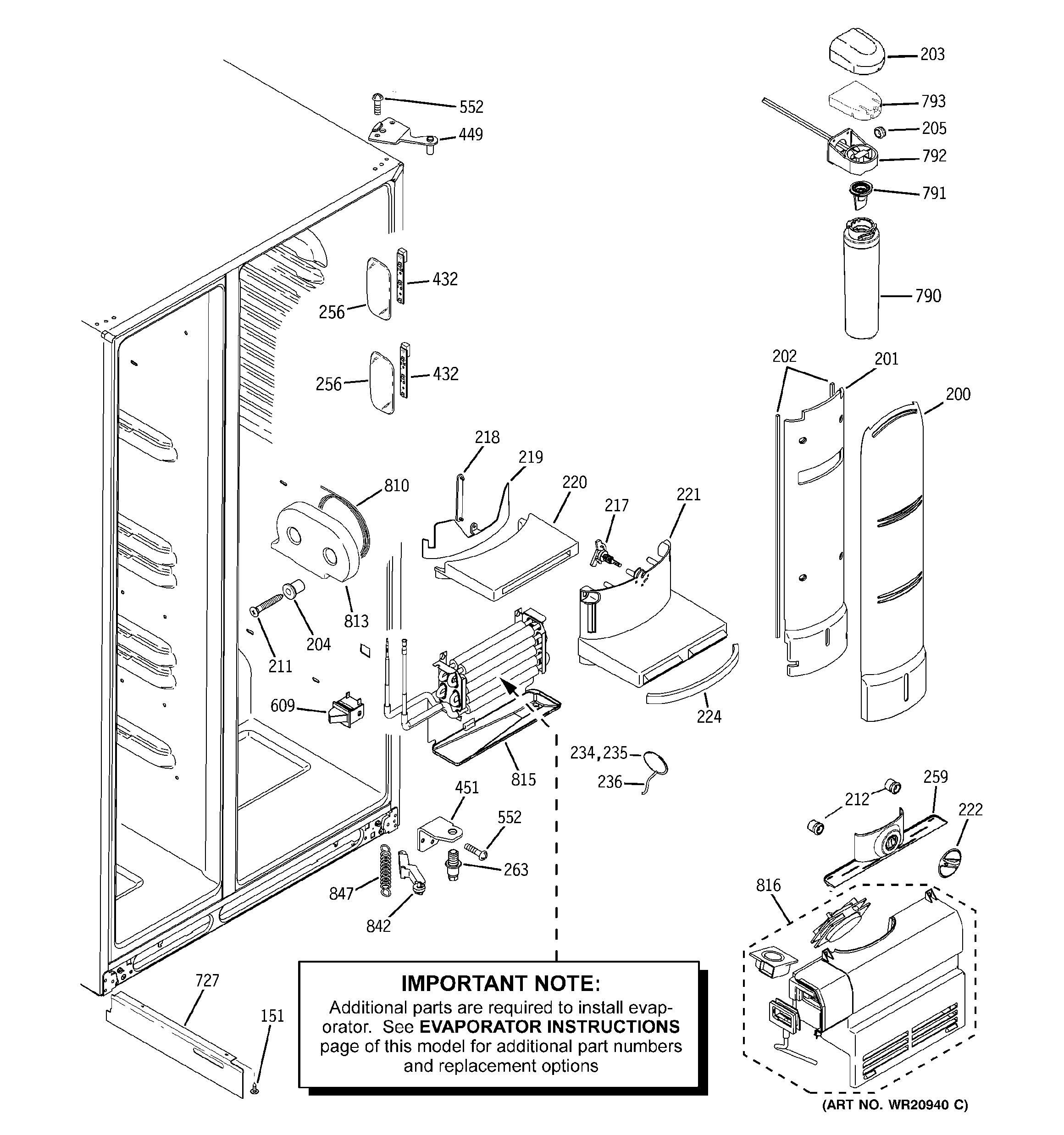

PositionProduct
151WR01X10588 GE Refrigerator Screw 8-18 AB IHXW 9/16 S
200GEN WR17X11702
201GEN WR17X11703
202GEN WR14X10188
203GEN WR17X12229
204WR02X12187 GE Refrigerator Support Shelf
204WR02X12188 GE Refrigerator Support Shelf
205WR02X10678 GE Refrigerator Grommet
211WR01X10568 GE Refrigerator Scr8-18 AB UFL 1.5 Stainless Steel
212WR02X10689 GE Refrigerator Base Grille Grommet
217WR32X10861 GE Dial Pan Chill
218WR02X10665 GE Refrigerator Chill Linkage Pan
219WR02X10664 GE Refrigerator Chill Pan Shutter
220GEN WR02X11851
221WR02X11852 GE Refrigerator Chill Discharge Pan
222WR02X10666 GE Refrigerator Chill Pan Knob
224GEN WR02X11853
234WR02X10647 GE Refrigerator Grille Sensor
235WR02X10668 GE Refrigerator Shunt Sensor
236WR55X10025 GE Refrigerator Temperature Sensor
256WR17X12871 GE Refrigerator LED Cover
259GEN WR32X10863
263WR02X12263 GE Refrigerator Pin Hinge Bottom Adjuster HOLLOW
432LED LIGHT KIT
449WR13X10365 GE Top Hinge and Pin Assembly
451WR13X10159 GE Refrigerator Bottom Hinge Black
552WR01X10918 GE Refrigerator 12-24 Tapping Screw OVT 1.000"
609WR23X10734 GE Light Switch
727WR17X12382 GE Air Separator Hinge Side
790MSWF GE Refrigerator Fast Fill Water Filter
791WR17X22064 GE Refrigerator MSWF Bypass
792WR17X22075 GE Refrigerator MSWF Manifold Assembly
793WR17X12205 GE Refrigerator Manifold Insulation
810GEN WR17X12238
813GEN WR17X11710
815TROUGH DRAIN ASM
816WR17X12614 GE Evaporator Cover Assembly
842LEVER ASM FF
847WR1X2027 GE Refrigerator Spring Closure
