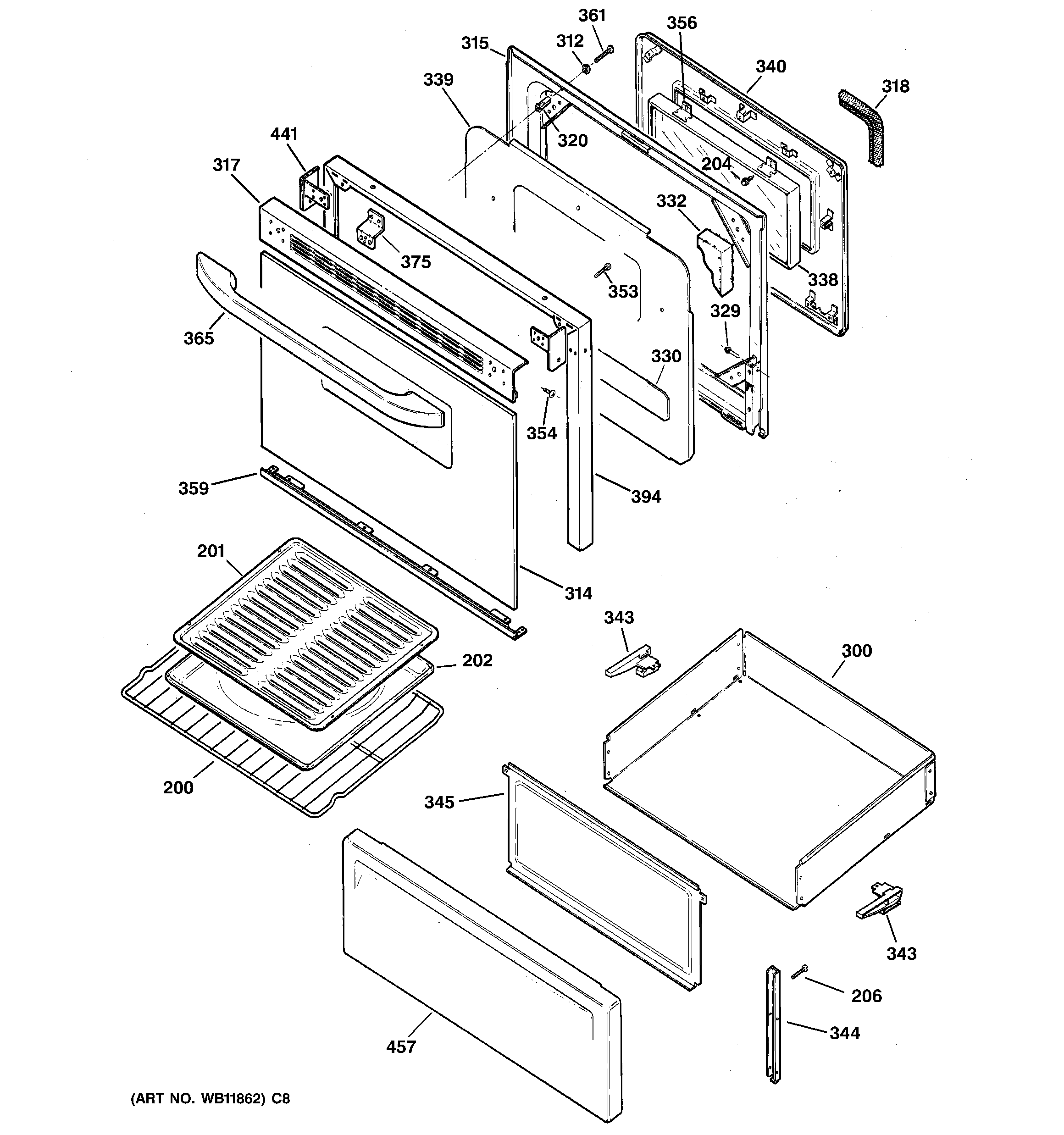

RCB787WJ1WW DOOR & DRAWER PARTS

RCB787WJ1WW DOOR & DRAWER PARTS

Written by

in

RCB787WJ1WW DOOR & DRAWER PARTS

Products

PositionProduct
200WB48T10095 GE Oven Rack
202WB48X10056 GE Broil Pan Set, Large Porcelain
204WB1K5062 GE Oven Screw
204WB1X536 GE Oven Screw
204WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
204WZ4X345D GE Screw Package 12 C92
206WR01X10065 GE Screw
300GEN WB58K10004
312WB1X119D GE Oven Range Washer
314WB57K3 GE Oven Outer Door Glass White
315GEN WB55K0025
317GEN WB35K0033
317WB07K10191 GE Oven Vent Trim Door (White)
318WB35X29722 GE Oven Door Gasket Assembly
320WB2K14 GE Oven Spacer
329WB1X558D GE Oven Screw Package
330GEN WB35K10045
332GEN WB35K0020
338GEN WB56K0019
339GUARD INSULATION
340GEN WB55K0020
343WB02K10061 GE Oven Drawer Glide
343WB02K10062 GE Oven Drawer Glide
344GEN WB02K10025
345WB34K10034 GE Oven Drawer Cover
353WB1K67 GE Oven Screw 8-22
354WB01K10012 GE Oven Screw 8-22 PL 1HX
354WB1K66 GE Screw
356CLIP WINDOW
359TRIM BOTTOM ASM
361WB1X5731D GE Oven Nut Package of 12
365WB15X10048 GE Oven Door Handle White
375WB02K10245 GE Oven Door Bracket
394GEN WB07K10207
394GEN WB07K10208
441WB7K266 GE Oven Door End Cap
457WB56X31459 GE Oven Drawer Front
