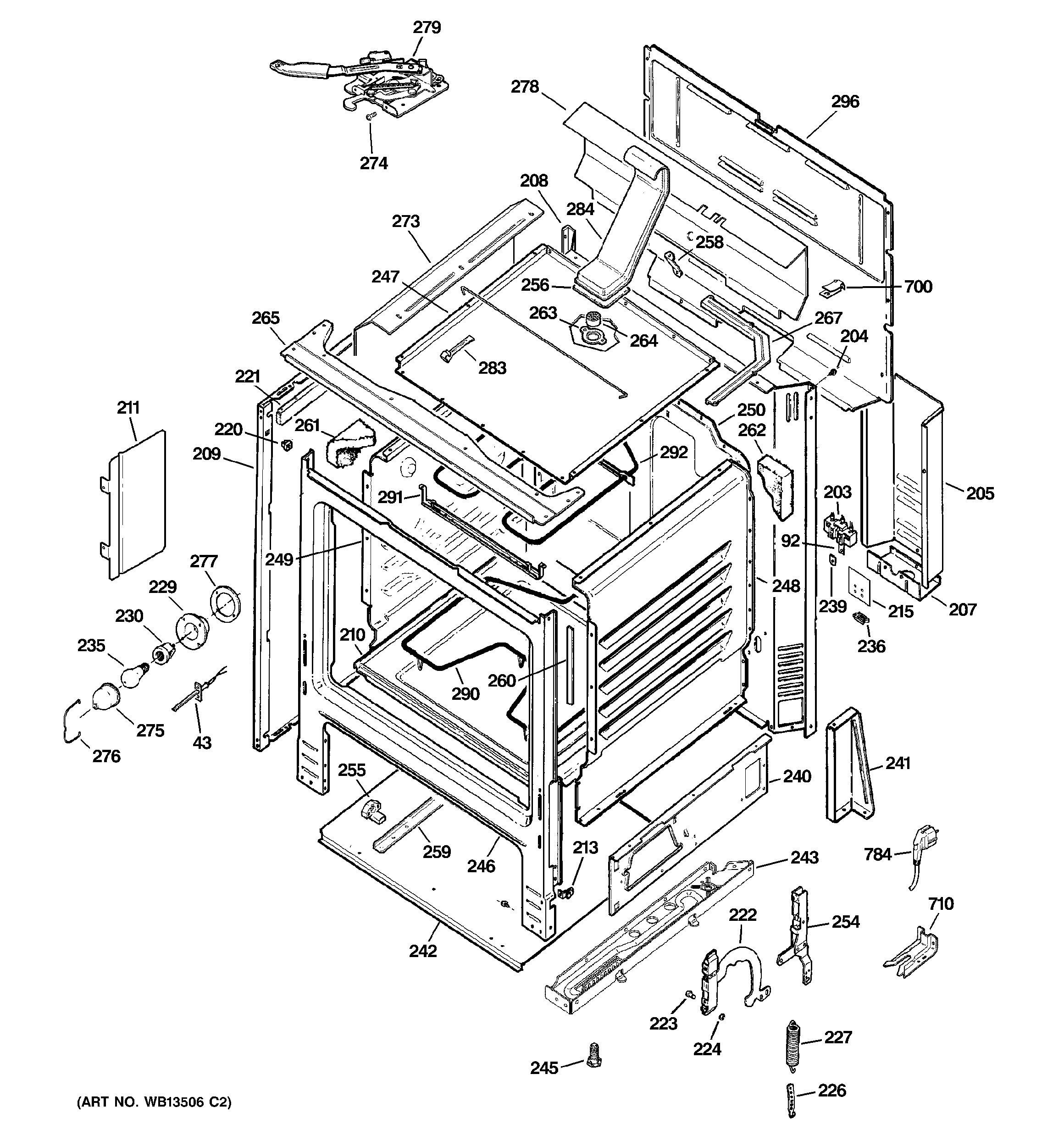

RCB790SJ3SA BODY PARTS

RCB790SJ3SA BODY PARTS

Written by

in

RCB790SJ3SA BODY PARTS

Products

PositionProduct
43SENSOR ASM
92WB1X1261 GE Oven Screw
203WB17T10011 GE Oven Terminal Block
204WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
204WZ4X345D GE Screw Package 12 C92
204WB1X536 GE Oven Screw
204WB1K5062 GE Oven Screw
205WB34K10029 GE Oven Guard Terminal
207WB02K10029 GE Oven Mounting Terminal Bracket
208GEN WB63K10005
209GEN WB63K10113
210WB63K10006 GE Oven Bottom Assembly
211GEN WB49K10004
213WB1K3 GE Oven Speed Nut
215FIBER GLASS
220GEN WB02K0008
221GEN WB63K10046
222WB10K12 GE Oven Hinge Assembly
223GEN WB02X6195
224RING RETAINING
226GEN WB09K10001
227GEN WB09K10002
229GEN WB08K0001
230WB08T10026 GE Range Push-In Receptacle
235RANGE ONLY 40W 120V APPL BULB
236GEN WB02K0022
239PLATE GROUND
240GEN WB63K10042
240GEN WB63K10043
241SUPPORT CONTROL
242GEN WB63K10009
243WB63K10232 GE Oven Support Base
243WB63K10233 GE Oven Support Base
245WB02X10521 GE Oven Leveling Leg
246GEN WB63K10047
247WB63K10023 GE Oven Top
248GEN WB63K10010
249GEN WB63K10011
250WB53K10007 GE Oven Back
254GEN WB10K0013
254GEN WB10K0014
254GEN WB01K0053
255WB02K10158 GE Oven Drawer Support
256WB35K10019 GE Vent Gasket
258WB02K10040 GE Oven Vent Bracket
259WB39K16 GE Oven Drawer Rail
260WB32K2 GE Oven Gasket Seal
261GEN WB35K10092
262GEN WB35K10022
263WB02K10039 GE Vent Ring
264GEN WB34K10044
264WB35K10028 GE Oven Catalyst Support
265GEN WB63K10049
267WB02K10038 GE Corner Brace
273GEN WB53K0012
273GEN WB53K0011
274GEN WB01K0044
275WB36X192 GE Oven Light Cover
276WB2K27 GE Oven Bail
277GEN WB32K0005
278CLIP WINDOW
279WB02K10144 GE Oven Door Latch Assembly
283WB02X21679 GE Oven Wire Clip
284GEN WB38K10003
284GEN WB35K10018
290WB30X46987 GE Bake Element
291WB02K10028 GE Oven Broil Support
292WB30X46986 GE Broil Element
296GEN WB34K10031
700RETAINER-INSULATION
710GEN WB02K10165
784WB18K10014 GE Oven Line Cord Kit
