RCB790SJ3SA CONTROL PANEL & COOKTOP

RCB790SJ3SA CONTROL PANEL & COOKTOP

Written by

in

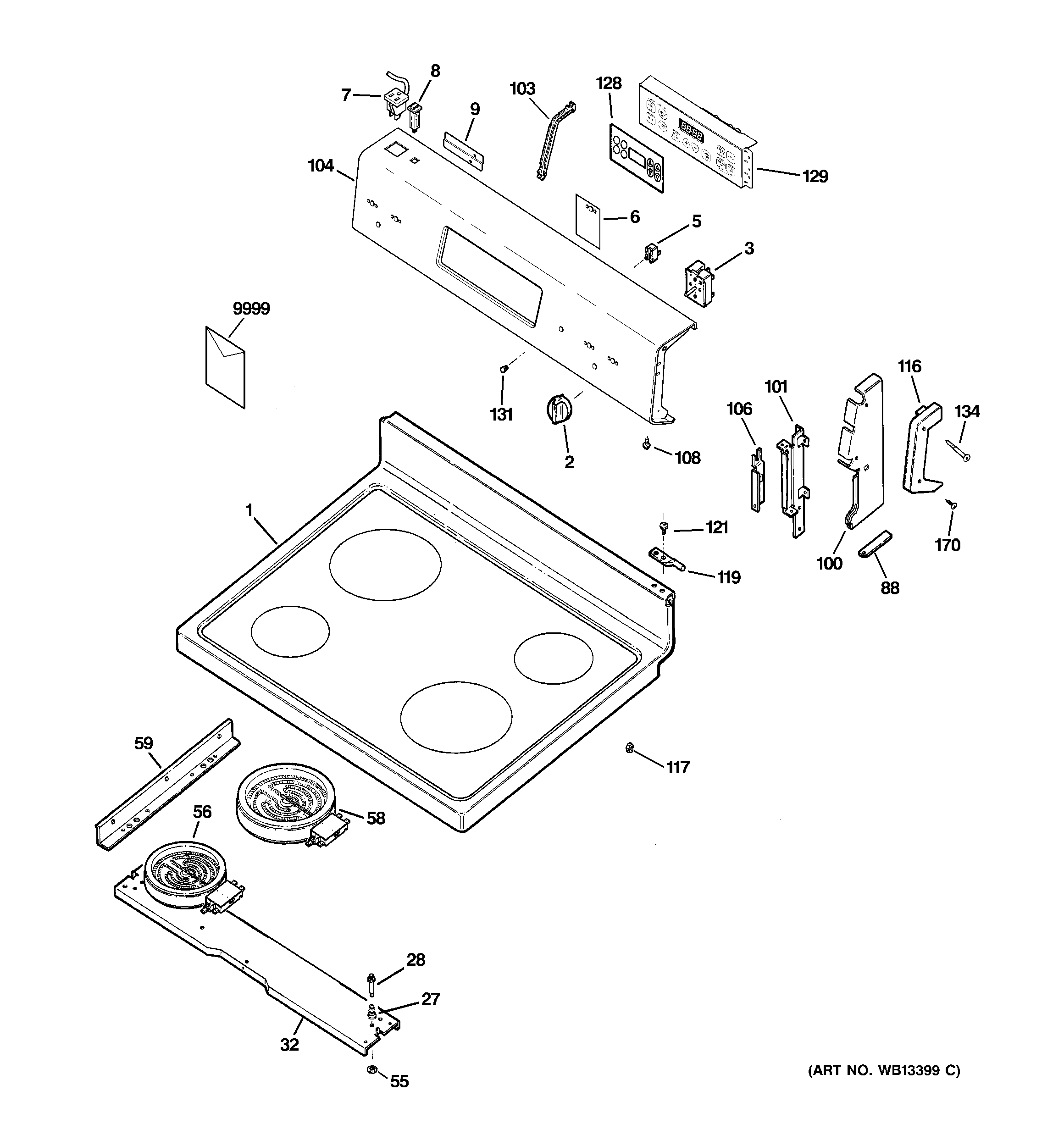

RCB790SJ3SA CONTROL PANEL & COOKTOP

Products

PositionProduct
1GEN WB57K10058
2GEN WB03K10172
3WB24T10029 GE Oven Infinite Burner Switch
3WB24T10027 GE Oven Range Cooktop Top Burner Infinite Switch 2100W
5WB25K10002 GE Stove Oven Cooktop Pilot Lamp
6GEN WB37K10011
7GEN WB37K10009
8GEN WB37K10007
9GEN WB37K10008
27GEN WB09X5119
28GEN WB02X8377
32WB02K10045 GE Bottom Heater Support
55GEN WB02X8323
56WB30X38928 GE Surface 6" Radiant Element
58WB30T10045 GE Oven Range Cooktop 8" Halogen Burner Assembly
59WB02K10046 GE Oven Side Heater Brace
88GEN WB02K0062
100GEN WB07K10022
100GEN WB07K10023
101GEN WB37K0018
101GEN WB37K0017
103GEN WB02K10027
104GEN WB36K10544
106GEN WB10K10001
106GEN WB10K10002
108WB1X5364 GE Oven Mounting Screw
116WB07K10003 GE Oven Right Black Endcap
116GEN WB07K10004
117GEN WB02K0017
119WB14K5 GE Oven Hinge Pin
121WB1K5119 GE Oven Screw
128GEN WB27K10177
129CONTROL OVEN TO9 (ELEC)
131WB25T10041 GE Oven Lens
134GEN WB01K10003
170GEN WB01X5716
9999PM10X310 GE Cerama Bryte Cooktop Cleaner
9999GEN 29-5532
9999GEN 31-21297
9999GEN 31-21303
